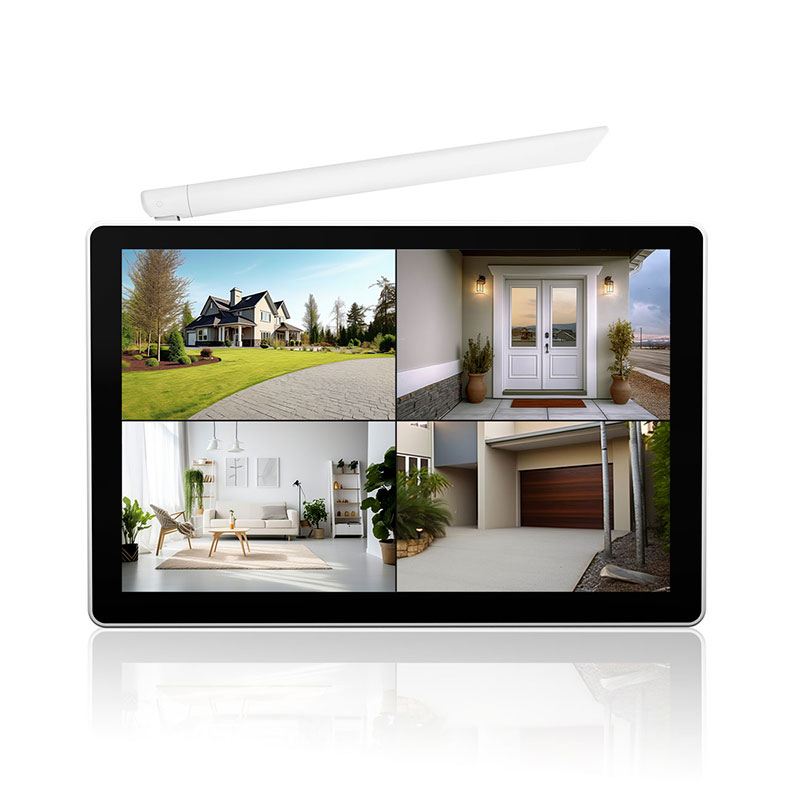

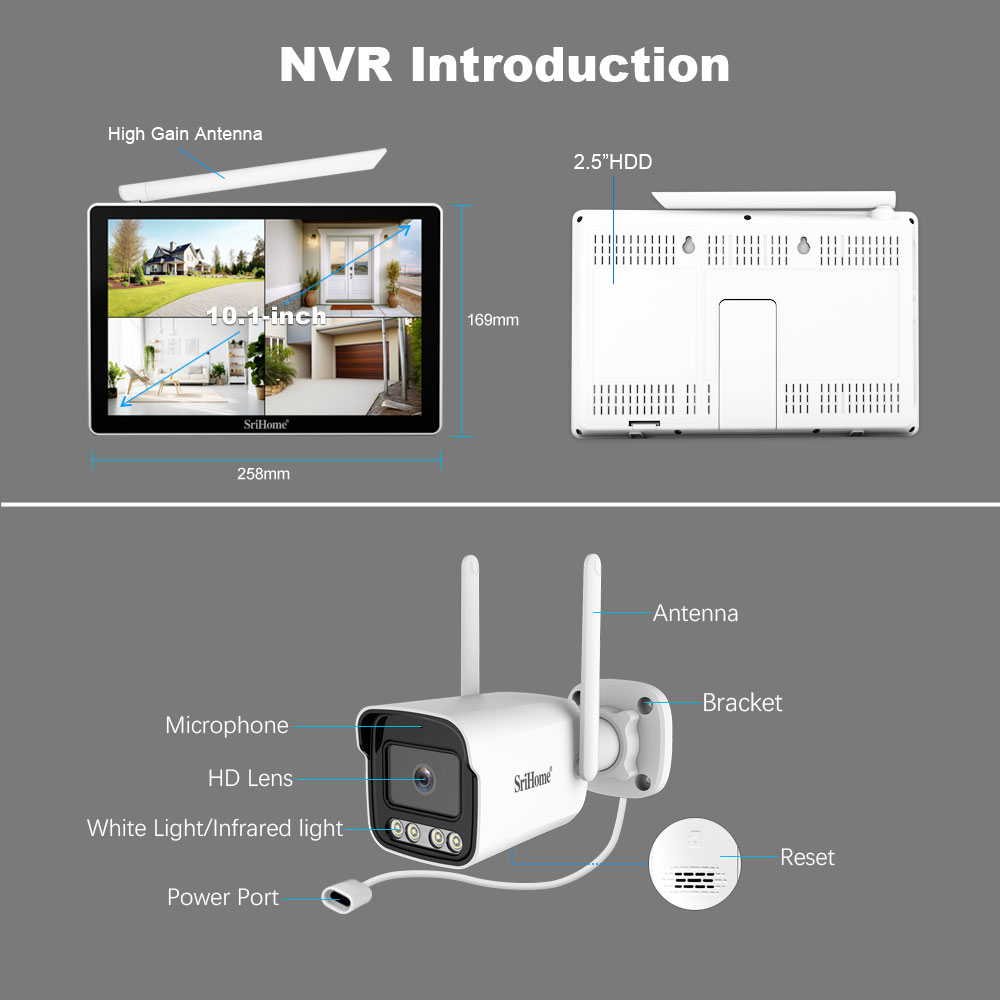

Screen size: 10.1-inch LCD screen

Display resolution: 800xRGB(3)x1280

Touch: Support multi-touch

Video input: 8 CH

Video output interface: 1 HDMI, 1 VGA

Compression format: H265/H264/Smart264

Coding capability: 8*5M/25fps

Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (auxiliary stream)

Video decoding format: H265; H.264

Audio: two-way voice

Audio output: HDMI and 1-way AUX interface audio output, built-in speaker

Audio decoding format: G.711U; AAC

Hard drive interface: 1 SATA interface (only supports 2.5-inch hard drives), SSD&HDD

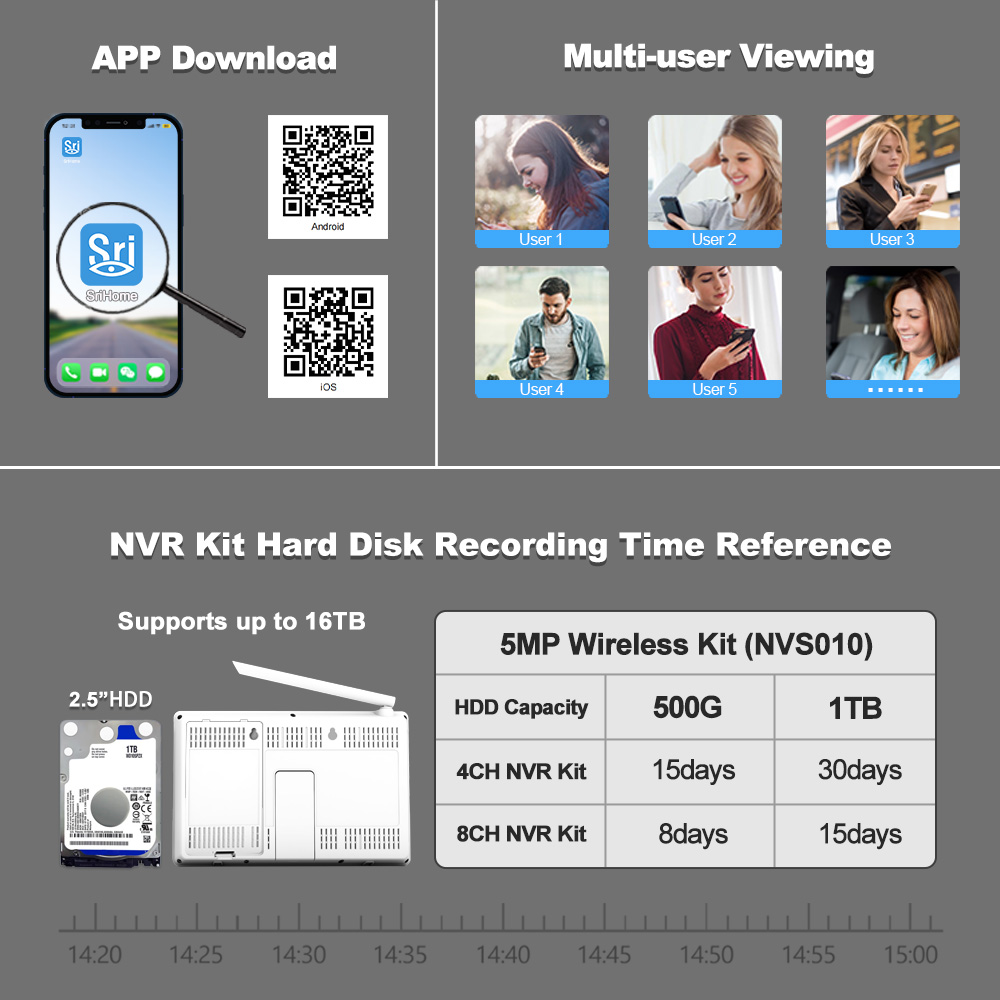

Hard drive capacity: maximum support 16TB

Recording mode: scheduled recording, alarm recording

Playback mode: regular playback and APP playback

Backup mode: regular backup

WiFi: 2.4G, only for standard camera connection

WAN: RJ45 wired connection

Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.

Alarm mode: motion detection alarm, humanoid detection alarm

Alarm reminder: APP push, alarm whistle

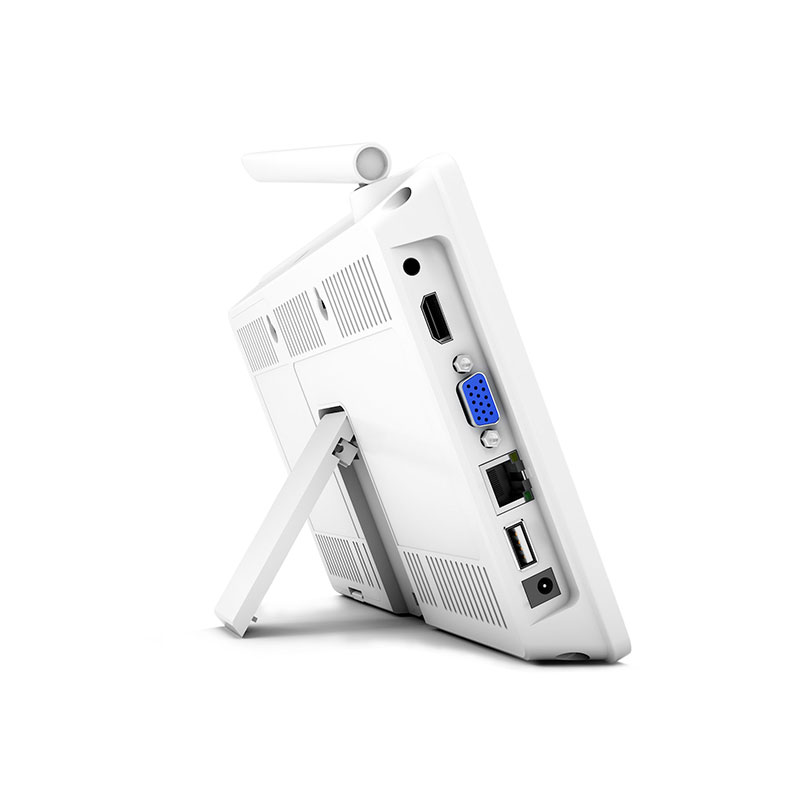

Network interface: one RJ45 network interface

USB interface: 1 USB2.0

HDMI interface: 1

VGA interface: 1

Audio interface: 1 AUX audio output interface

Power interface: 1 DC 12V 2A (5.5*2.1*10)

Working temperature: -10°C ~50°C

Working humidity: 10%~90% RH

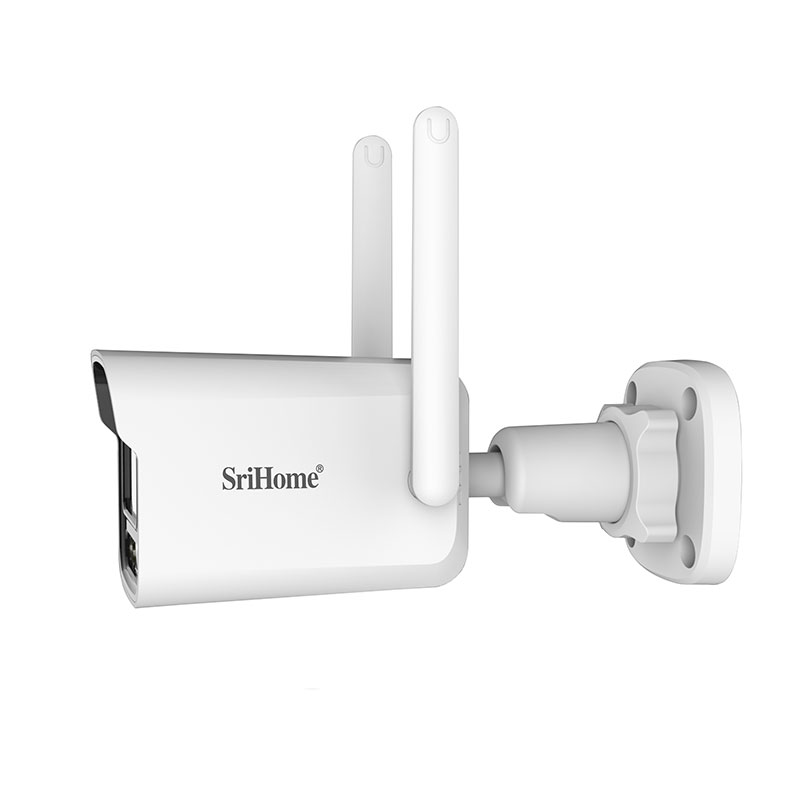

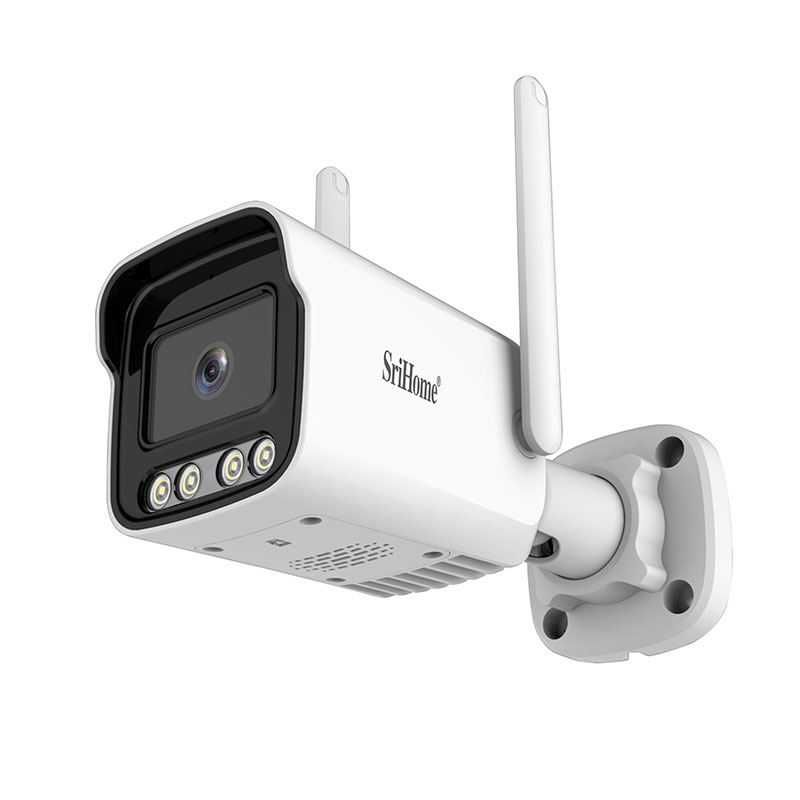

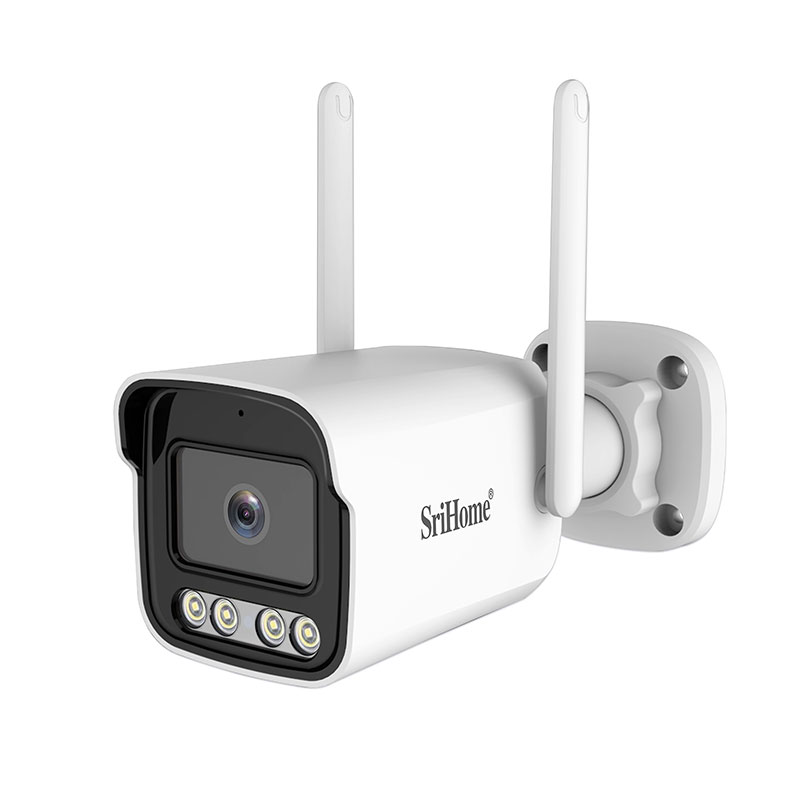

Multi-core high-speed processor

1/3 inch, 5 million high-definition color CMOS sensor

Compression format: H.265

Lens parameters: Focal length: 4mm, 5 million pixels

Viewing angle: Field of view: D 110 H 80 V 58

Resolution: 1920P(2560*1920), VGA(480*360)

Frame frequency: 15 frames

IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect

Built-in microphone and speaker, supports two-way voice

Protocol: G711

Alarm mode: The default is black and white night vision, when a human figure is detected, the white light is turned on

White light mode: Working period: 17:00~8:00, turn on the white light, full color night vision, adjustable brightness

Infrared mode: Turn off the white light and switch to normal night vision

Alarm: motion detection alarm, humanoid alarm

Siren: Alarm whistle can be set

Area detection: Supports customization of motion detection alarm areas to improve alarm accuracy

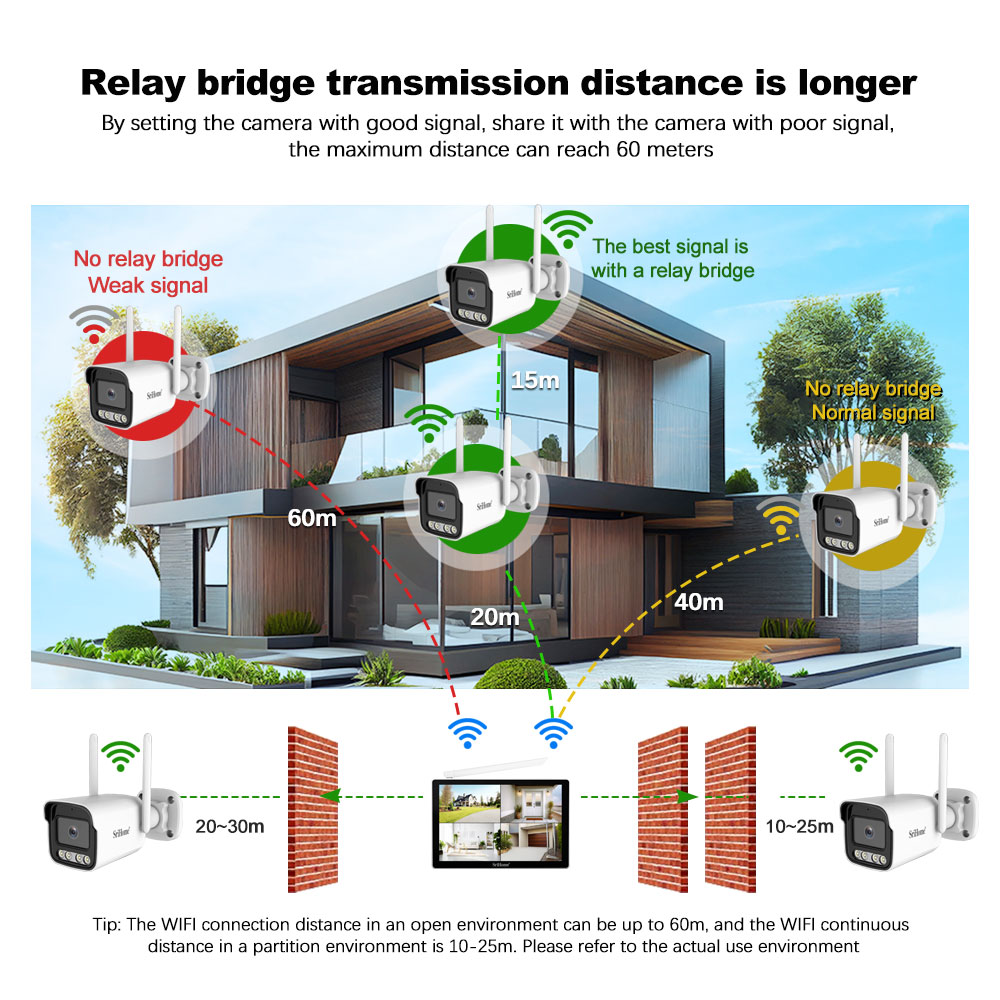

Wireless: 2.4G (only connected to NVS001E/NVS010 host)

Network distribution mode: QR code network distribution, button network distribution

Product type: plastic gun, suitable for indoor and outdoor use

Power adapter: input AC: 100~240V, output DC: 5V

Working temperature: -10°C ~50°C

Weight: Net weight 230 grams (actual weight shall prevail)

Body size: 78*66*75mm (length x width x height)

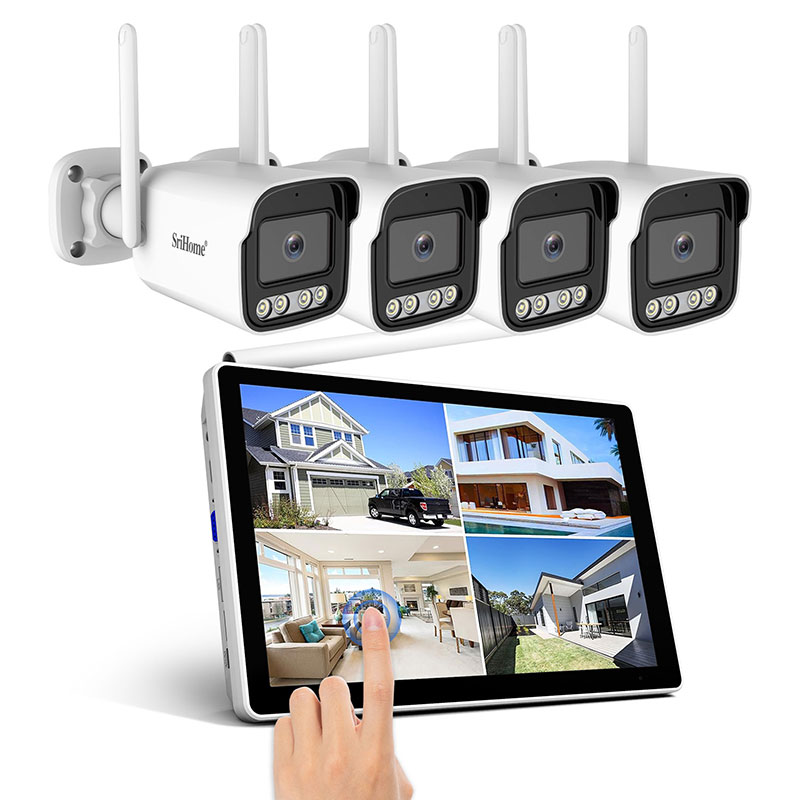

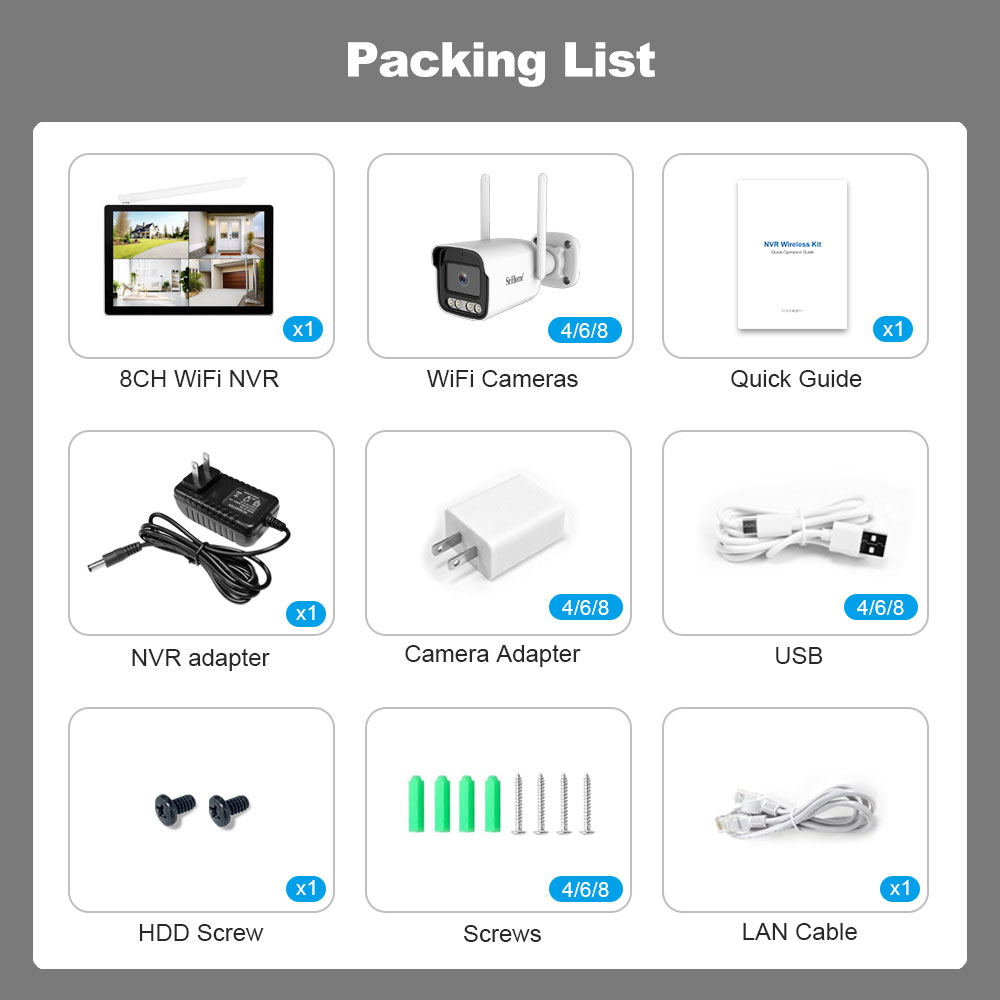

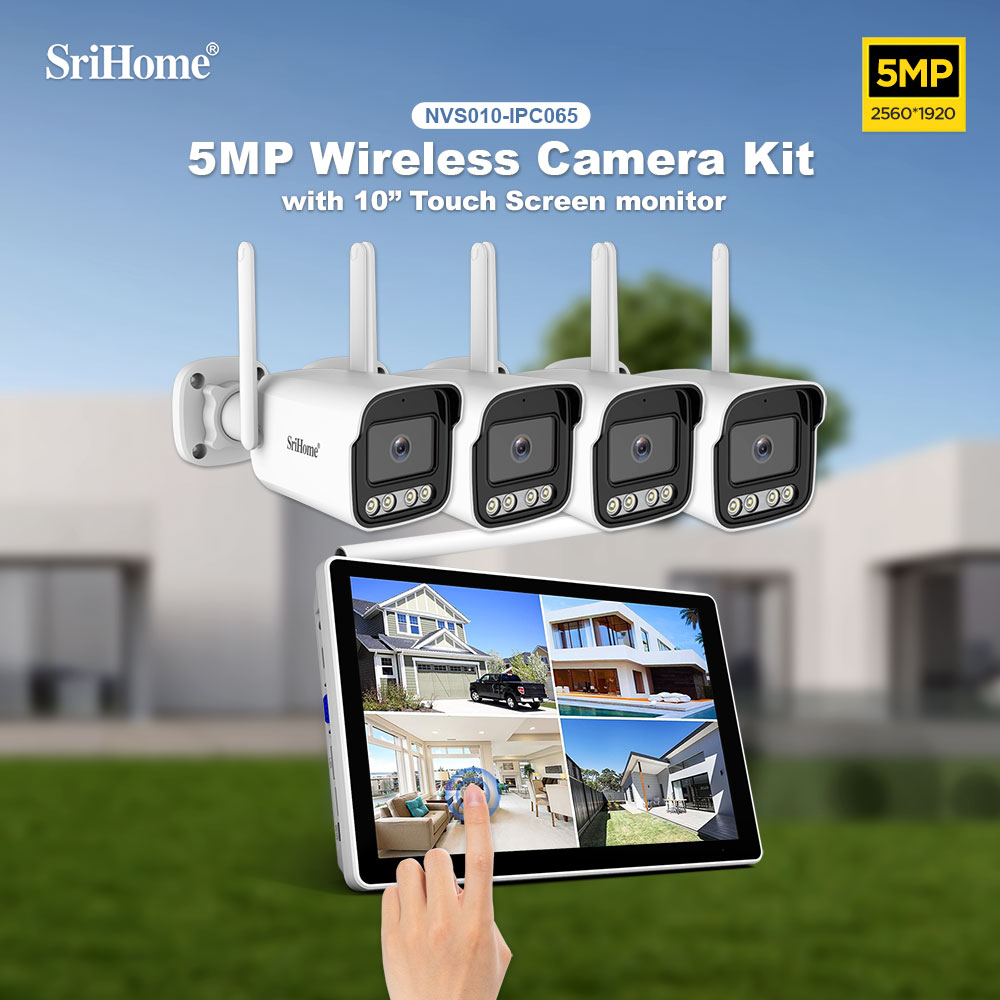

NVR: 1 NVS010 host

Camera: 4 IPC056 (optional 8 wireless cameras)

Power adapter: 1 12V2A power supply (NVR), 4 5V power supplies (camera)

Screw pack: 5 pack

Instructions: 1 copy

Network cable: 1

Set weight: 2.8 kg, subject to actual weight

Set size: 30.7x30x13.6cm (length x width x height)
