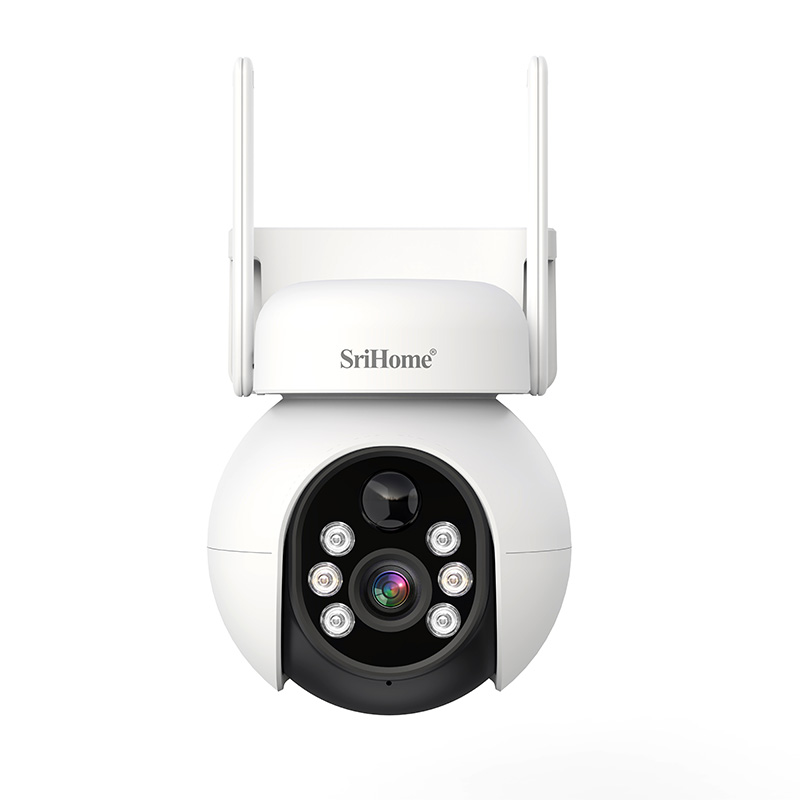

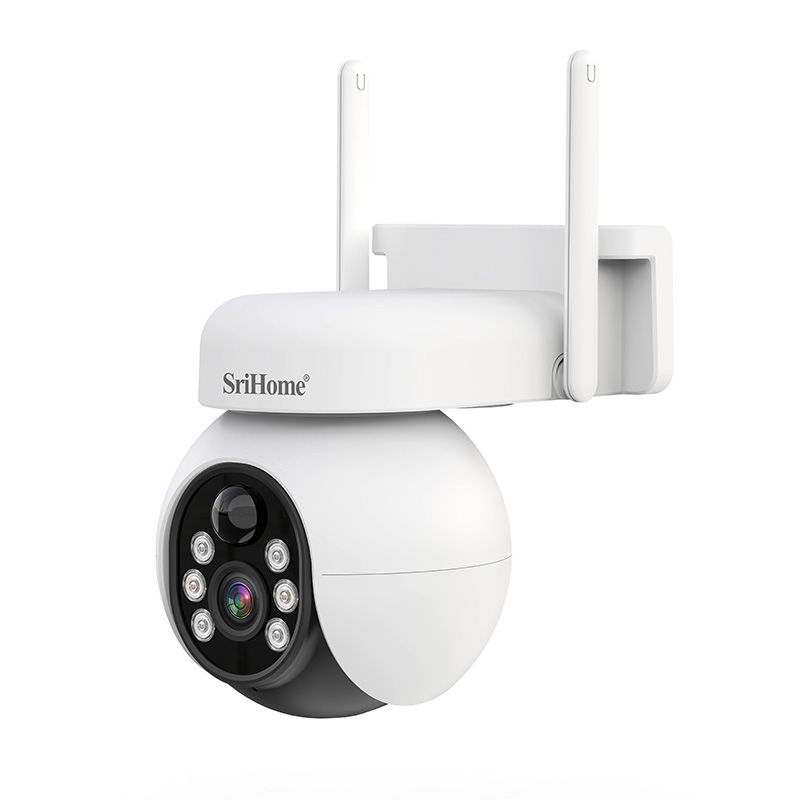

DH001-4G (4MP)

1: Mobile network: Support 4G LTE mobile network,
2: Low power consumption: Ultra-low power consumption, long standby time

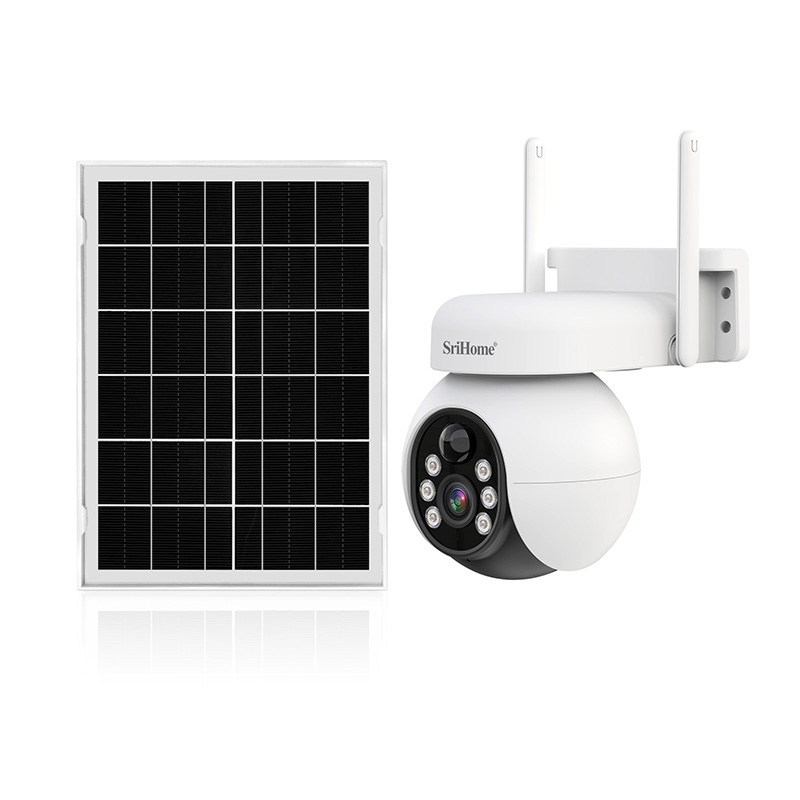

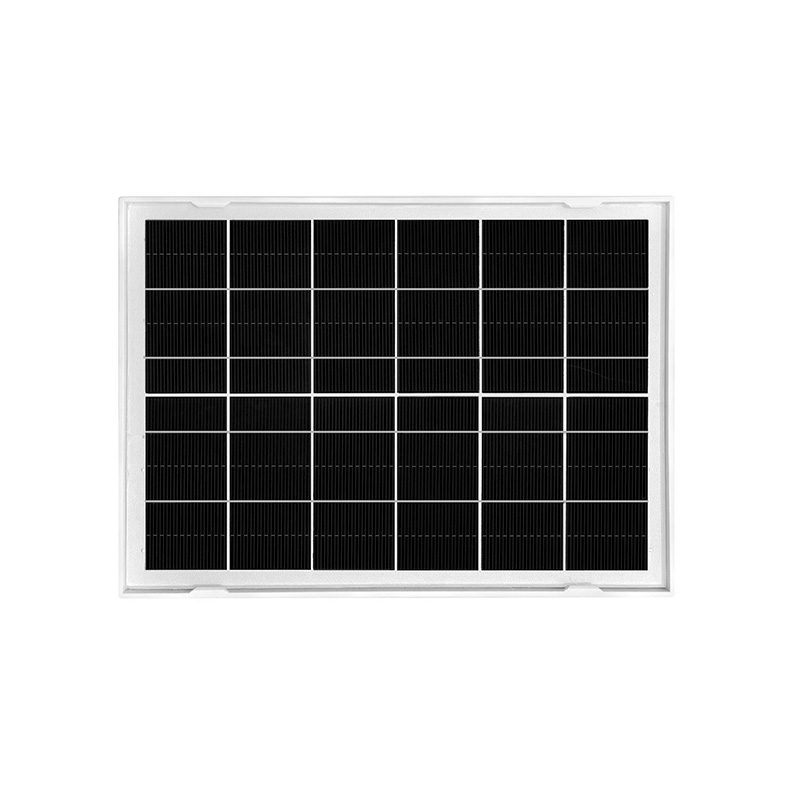

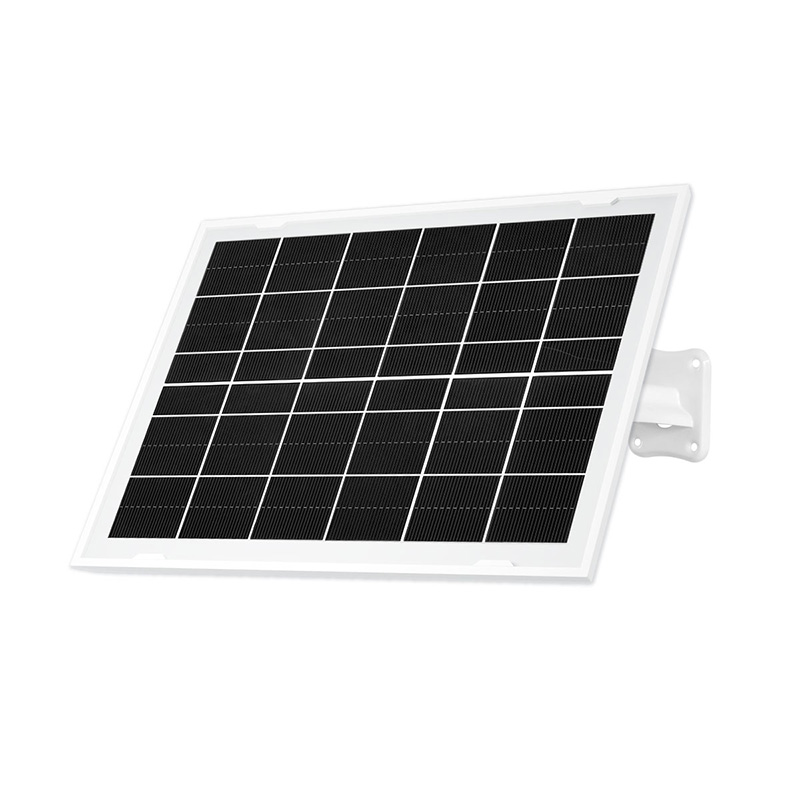

3: Solar energy: Equipped with a solar charging panel, no external power supply required
4: Battery: Built-in 4000mA high-capacity battery
5: Audio: Two-way audio, built-in microphone and speaker, support monitoring, intercom
6: Lens: 4mm lens, support 3x digital zoom
7: Dual light: infrared light and white light, full color day and night
8: Waterproof: IP65
9: TF card storage: support 128G TF Card, support remote video playback
10: Security access management: The system defaults the first user as the administrator, and other users must be authorized by the administrator before accessing the camera
11: APP: SriHome Support Android, IOS

DH001-001 DH001-002 DH001-003 DH001-004 DH001-005 DH001-006 DH001-007 DH001-008 DH001-009 DH001-010 DH001-011

System	Main Processor: 32-bit RISC Master Operating system: Real Time Operating System
Image sensor	Sensor: CMOS sensor 1/3" Pixel: 2560*1440 Minimum illumination: 0.1LUX/F1.2
Len	Lens parameters: Focal length: 4mm, viewing angle 110°
Battery	Specification: 2*2000mA Batteries type Standby time: About1 month(when raining) Standby current: Less than 1mA Charge Current: less than 120mA Wake up time: About 3000times (4000mA batteries,under the solar non-charging) Charge Type: Type C, 5V Charge Way: Solar pannel, Power supply, Mobile power(DC 5V）
Video	Resolution: (25601440)1440P, (19201080)1080P, (1280720)720P, (640360)360P Compression format: H.264 Frame frequency: 15 fps Exposure: Auto exposure white balance WDR: Digital WDR IR-Cut: No color cast during the day, good night vision Zoom: App supports 3x digital zoom
Fill light	Infrared mode: Infrared night vision White mode: White light on, brightness adjustable, full color night vision
Night Vision	Infrared mode: Support White light mode: Support Alarm mode: Support, At night supports PIR motion detect turn on the white light
Audio	protocol: G711U Function: Built-in microphone and speaker,support monitoring and intercom

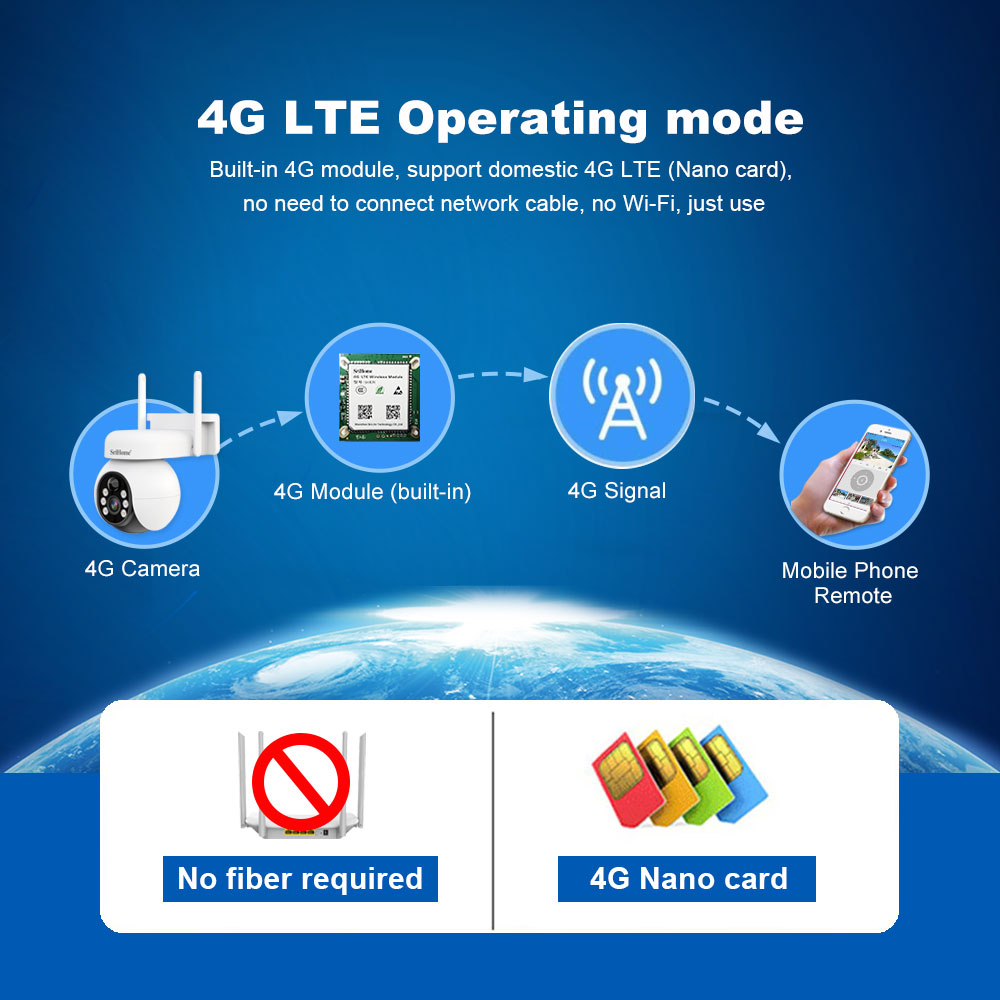

4G	LTE-FDD frequency band B1/B3/B5/B7/B8/B20/B28 LTE-TDD frequency band B38/B40/B41 Supports Asia, Africa, Europe, please refer to the frequency band for details Distribution mode: No need to configure the network, just plug in the card and use it
Alarm	Alarm: Human body induction alarm(PIR) Alarm notification: Alarm by phone notification

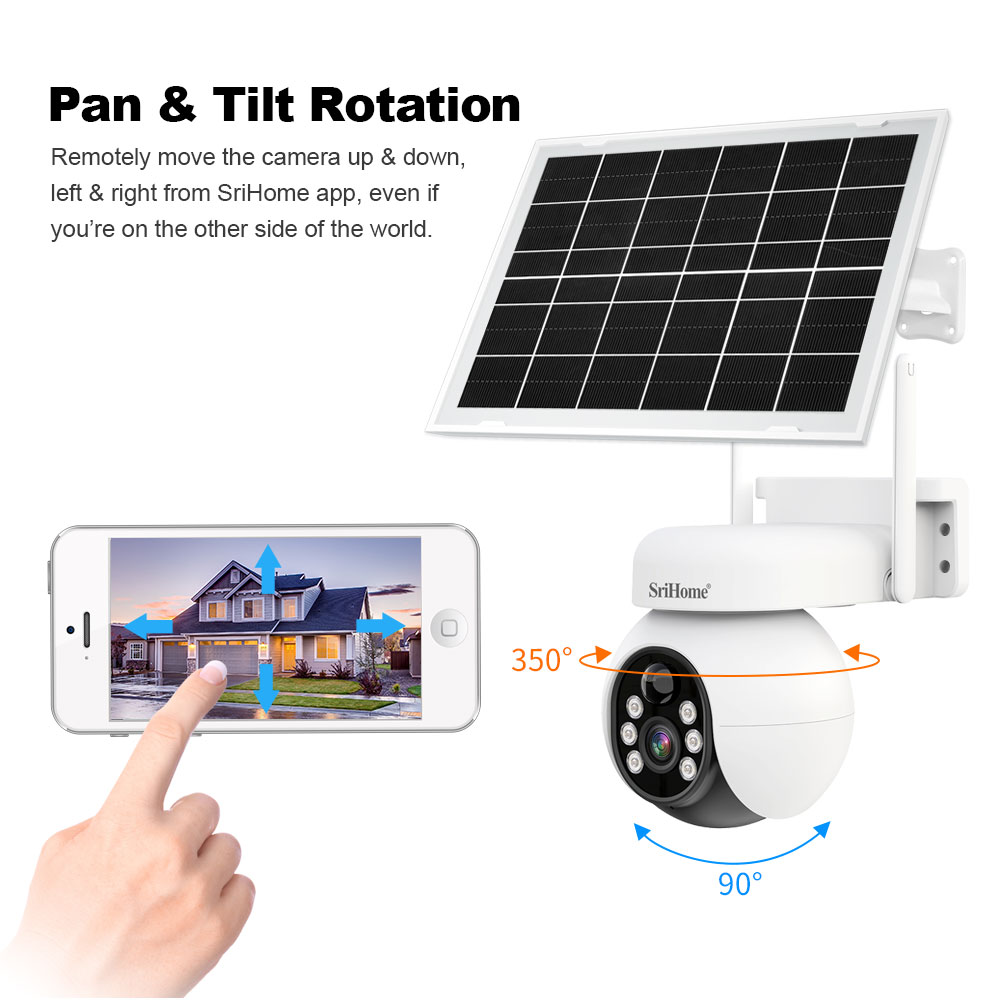

PTZ	Support: Pan:355°, Tilt: 90°
PIR	Default start time 19:00 ~ 8:00 (user can set)
APP	Support（SriHome）: Support Android and iOS
Storage	TF card: Support up to 128G TF card storage Record standard: VGA/HD Record mode: Alarm recording/All day recording/Timing recording Playback: Support remotely video playback
Privacy Protection	Privacy Protection: The system defaults that the first added user is the administrator, and other users need to be authorized to access Privacy Block: Support 4 optional private area, increase privacy protection

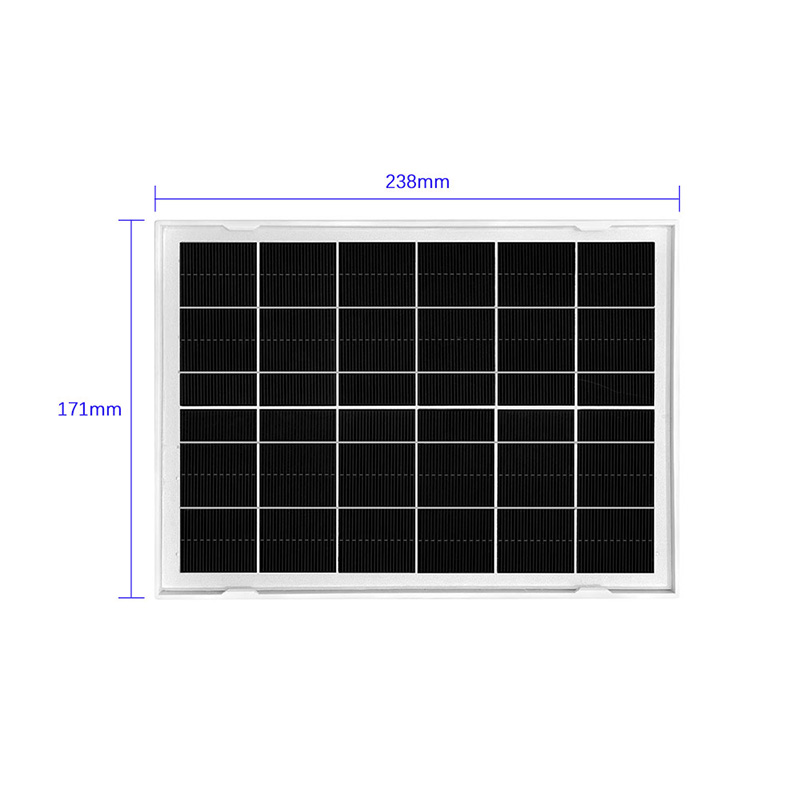

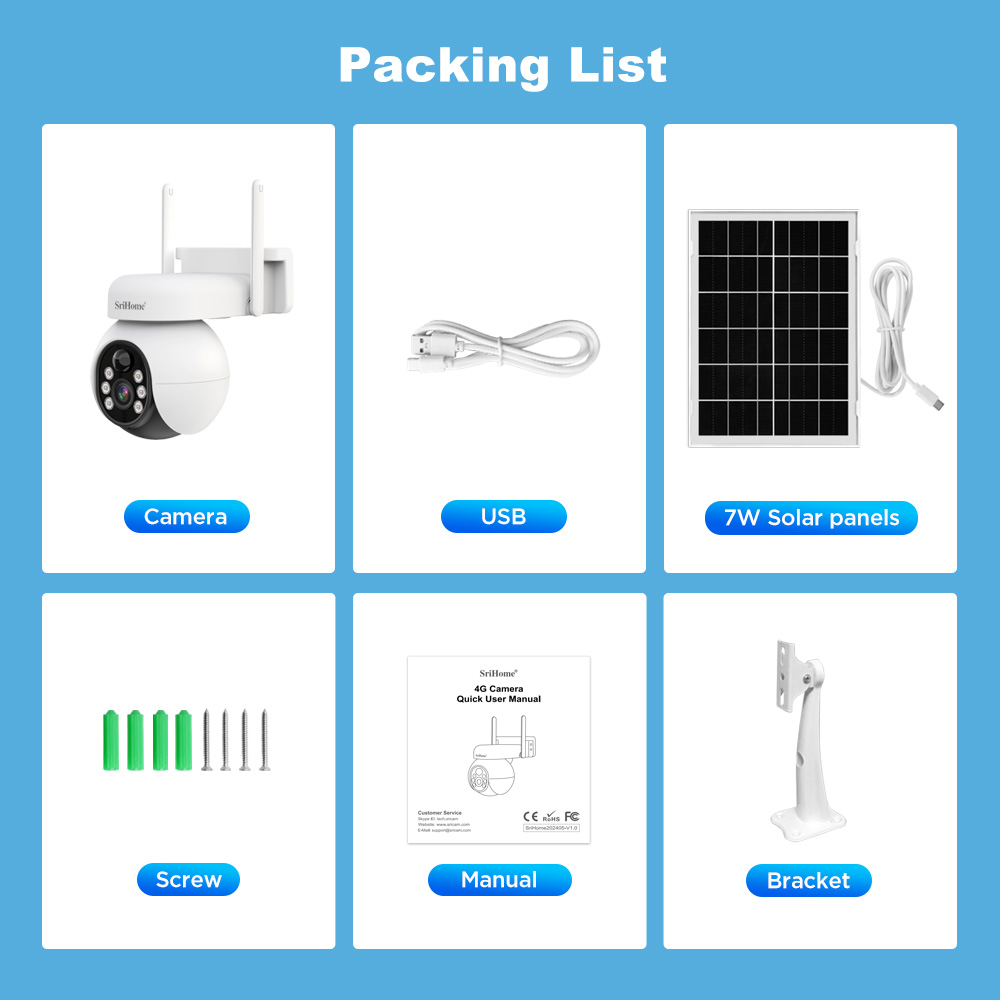

Other	Product type: Battery camera Power interface: Type C DC5V Battery specification: 18650 Battery Pack 4000mA (built-in) Working temperature: Minus 10℃ ~50℃ Waterproof degree: IP65 Working humidity: 10%－90% RH Working power consumption: 1.5~5W(Daytime 1.5W) Standby power consumption: <0.003W Product size: 150mm137nn105mm（LWH） Color box size: 241mm176mm130mm（LWH） Weight: Net Weight 430G, Gross Weight:1250G Accessories: 1USB cable, 1Bracket, 1Instruction manual, Wooden screw (including installation screwdriver), 1Card pick pin, 1*3W Solar pannel
Certification	CE, FCC, RoHS
