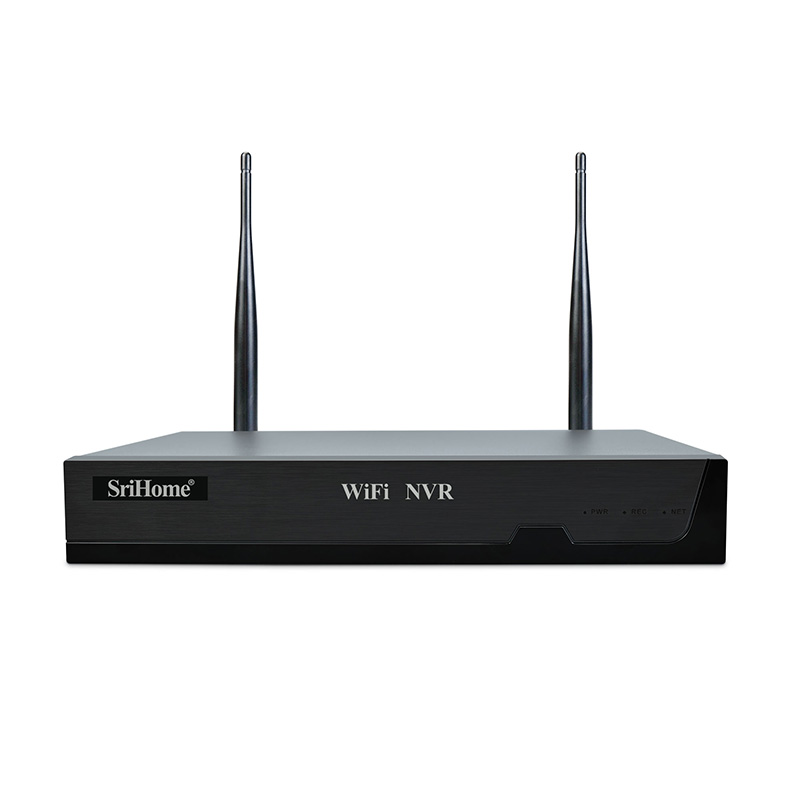

Video input: Max 8 CH

Video output: 1 HDMI, 1 VGA

Compression format: H265/H264

Coding capability: 8*5M/25fps

Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (auxiliary stream)

Decoding format: H265; H.264;

Audio: two-way voice

Audio output: HDMI and 1 AUX interface audio output

Decoding format: G.711U; AAC

Hard disk interface: 1 SATA interface

Hard drive capacity: maximum support 16TB

Recording mode: scheduled recording, alarm recording

Playback mode: regular playback and APP playback

Backup mode: regular backup

WiFi: 2.4G, only for SriHome standard camera connection

WAN: RJ45 network interface

Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.

Alarm mode: motion detection alarm, humanoid detection alarm

Alarm reminder: APP push, alarm whistle

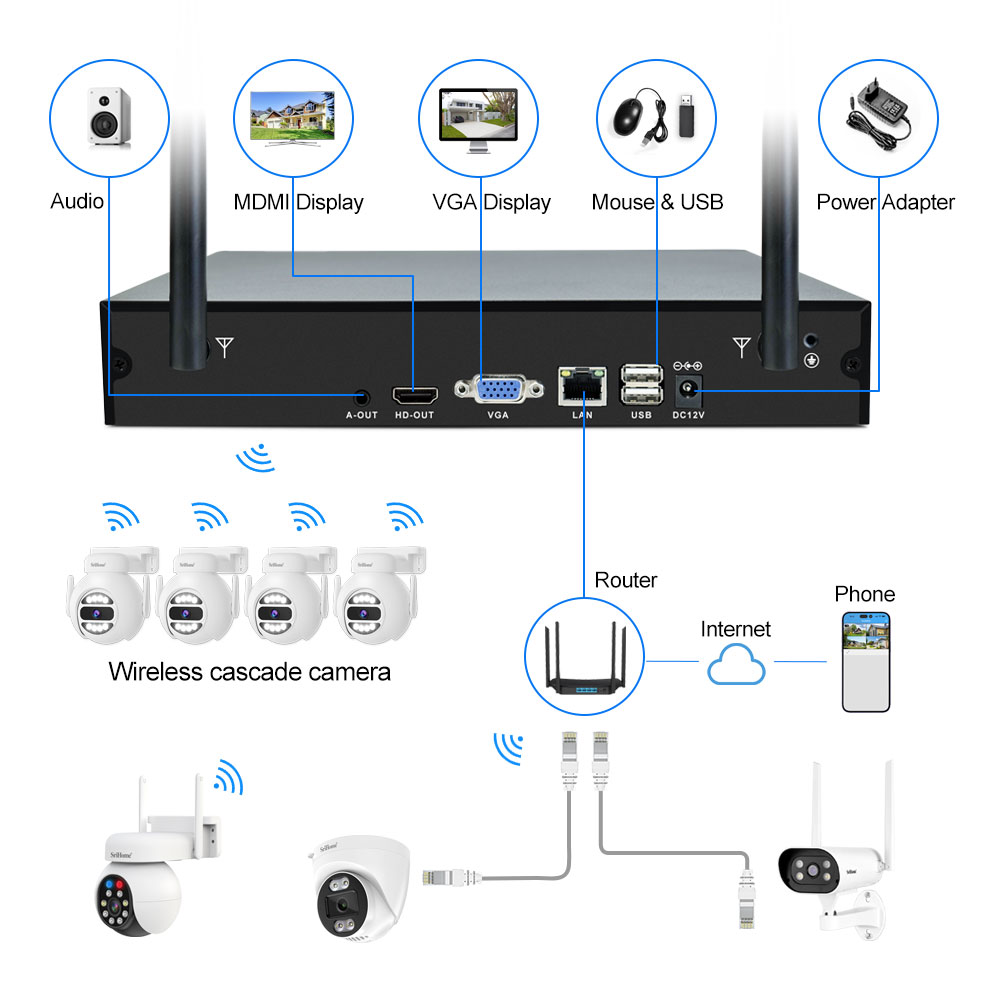

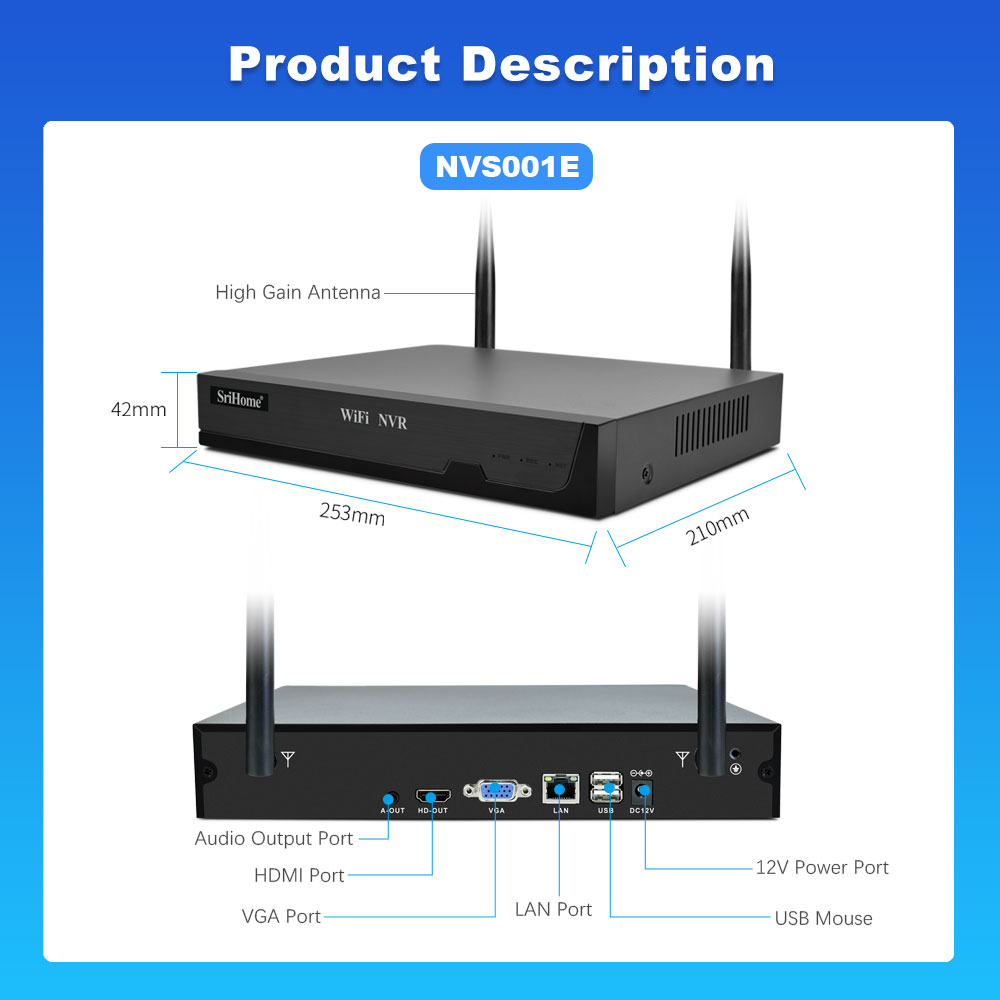

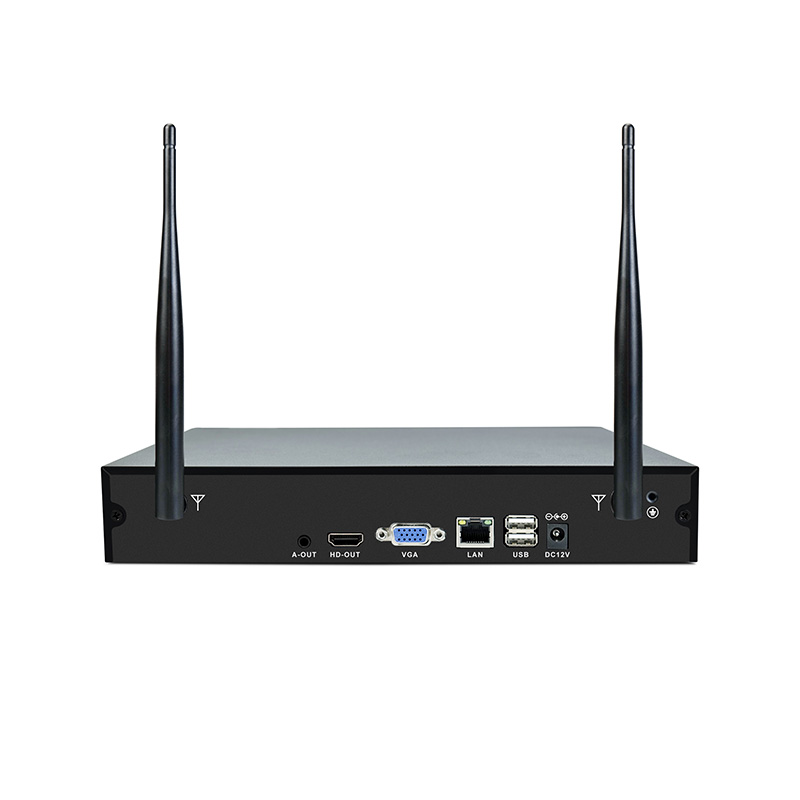

Network interface: one RJ45 network interface

USB interface: 2 USB2.0

HDMI interface: 1

VGA interface: 1

Audio interface: 1 AUX audio output interface

Power interface: 1 DC 12V 2A (5.5*2.1*10)

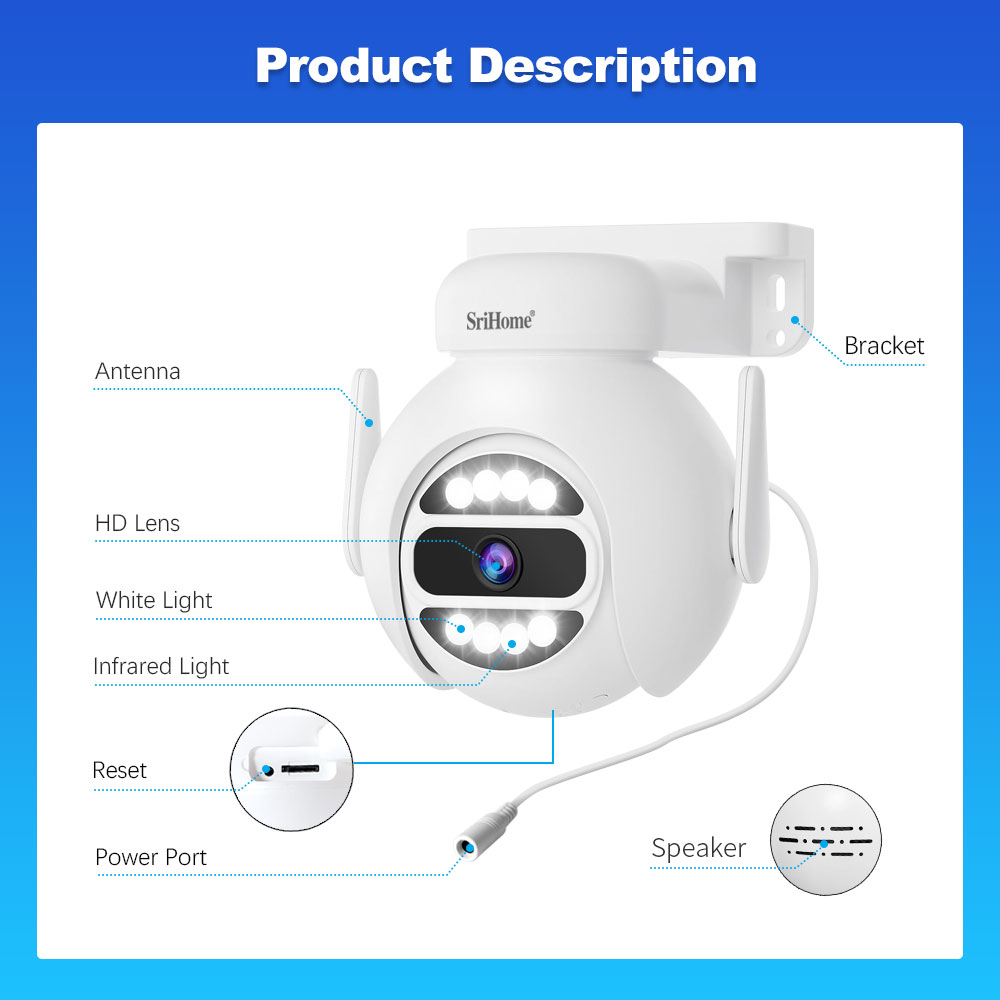

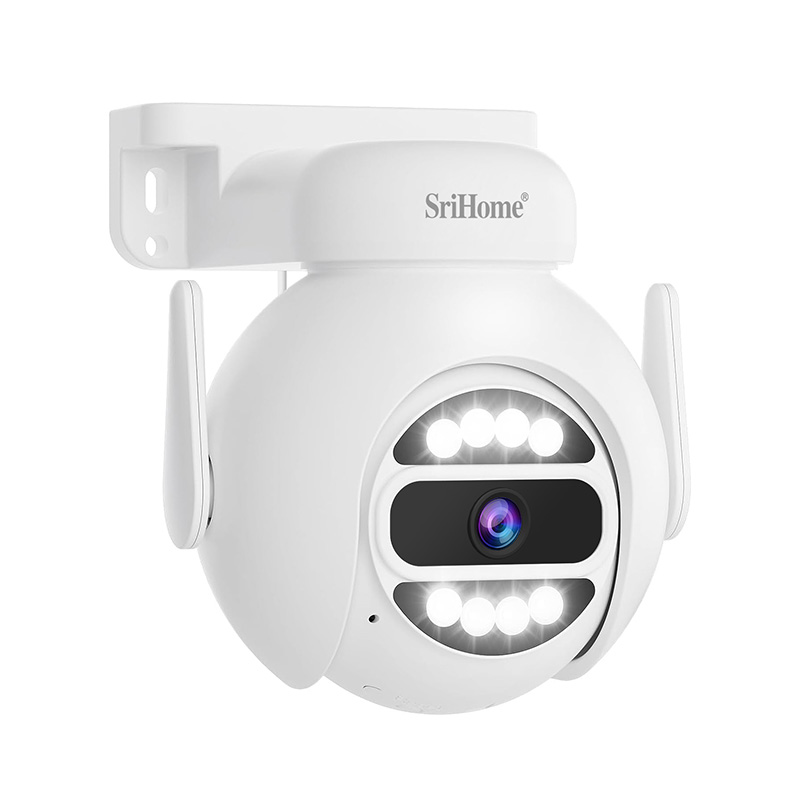

Multi-core high-speed processor

1/3 inch, 5 million high-definition color CMOS sensor

H.265 compression format

Lens parameters: Focal length: 4mm, 5 million pixels

Viewing angle: Field of view: D 110 H 80 V 58

Resolution: 1920P(2560*1920), VGA(480*360)

Frame frequency: 15 frames

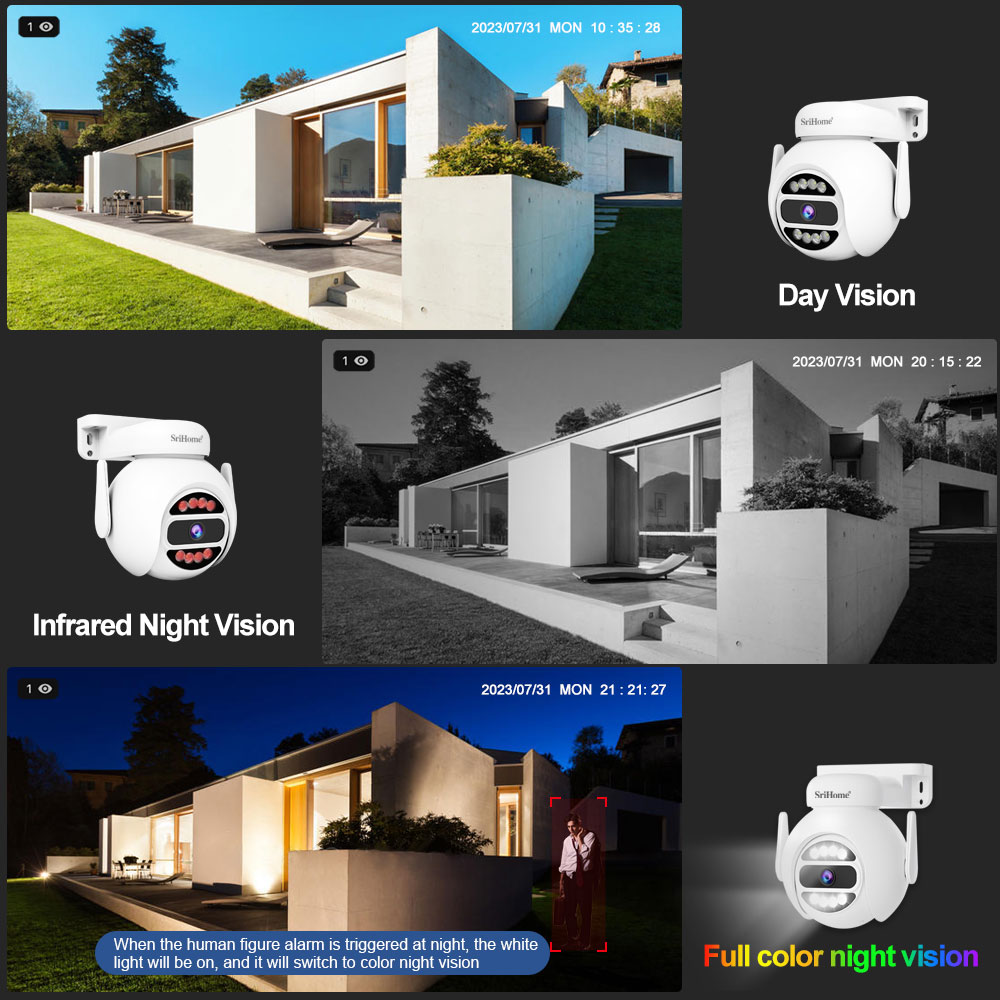

Alarm mode: The default is black and white night vision. When a human figure is detected, the white light will be automatically turned on and switched to full color night vision.

White light mode: The white light will be on during this time period from 17:00 to 8:00, the brightness is adjustable, and the night vision is full colorInfrared mode: Turn off the white light and switch to normal night vision

Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect

Built-in microphone and speaker, supports two-way voice

Protocol: G711

Tracking: supports humanoid tracking

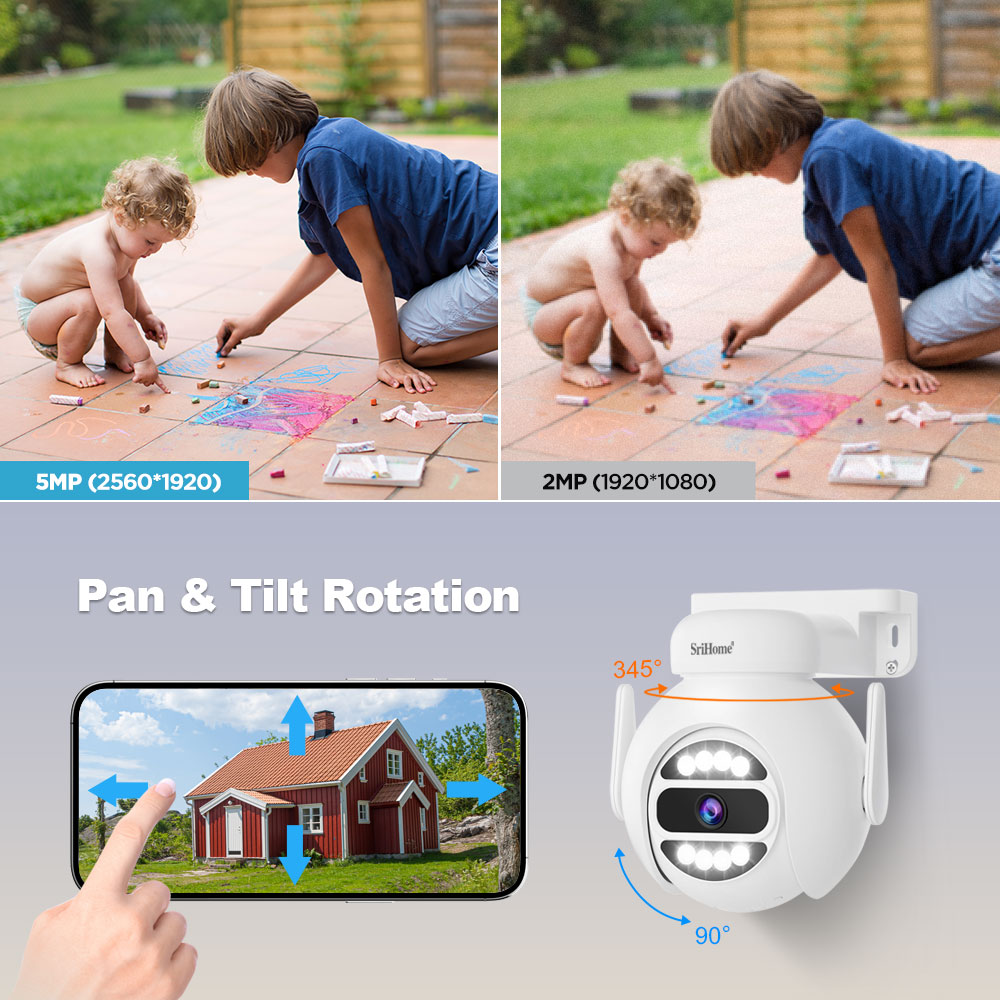

Rotation angle: horizontal: 340°, vertical: 90°

Motion detection alarm, humanoid alarm

Alarm whistle can be set

Support customized motion detection alarm area to improve alarm accuracy

2.4G (only connected to NVS001E/NVS010 host)

QR code network distribution, button network distribution

Product type: Plastic ball machine, suitable for indoor and outdoor use

Power adapter: input AC: 100~240V, output DC: 12V/500mA

Weight: Net weight: 375 grams, Gross weight: 580 grams (actual weight shall prevail)

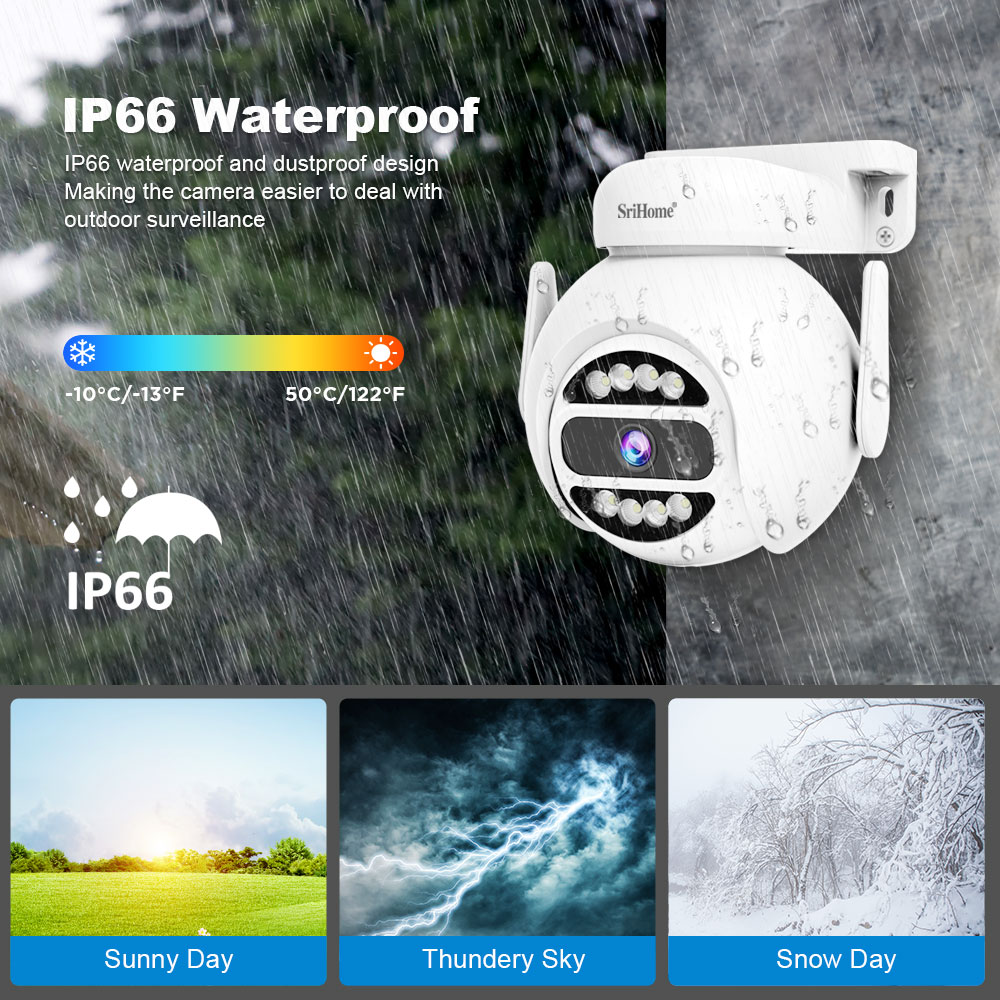

Working temperature: -10°C ~50°C

Body size: 130*110*125 mm (length x width x height)

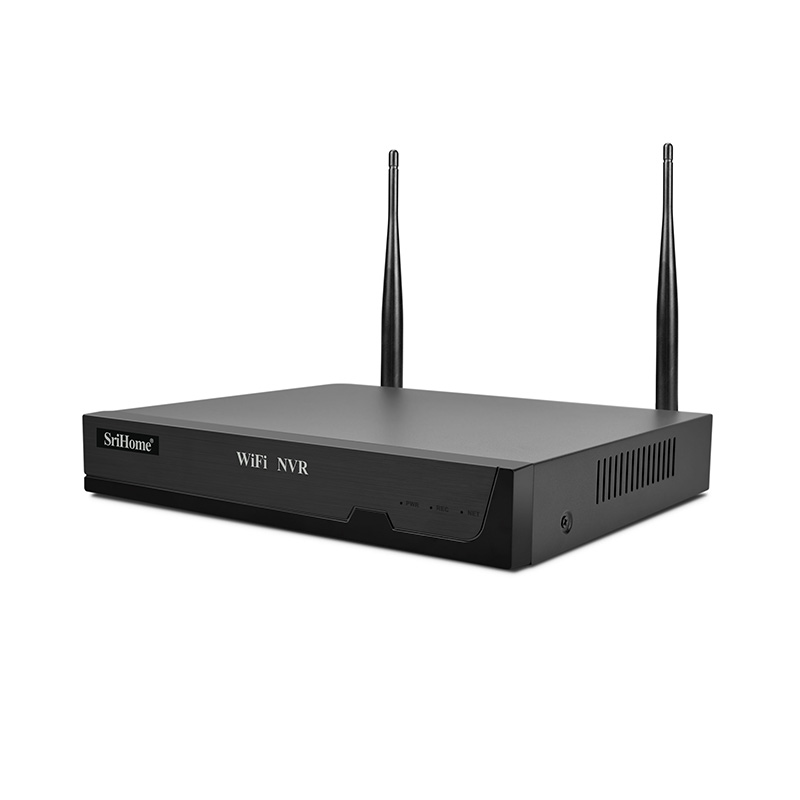

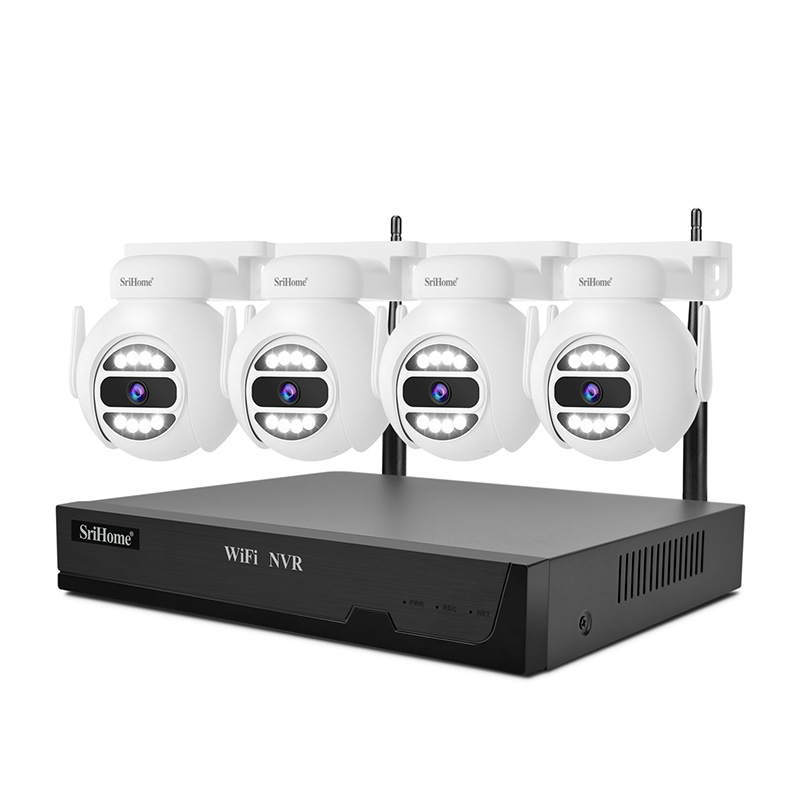

NVR: 1 NVS001E host

Camera: 4 wireless cameras (8 wireless cameras optional)

Power adapter: 1 12V2A power supply (NVR), 4 12V0.5A power supplies (cameras)

Screw pack: 5 pack

Instructions: 1 copy

Network cable: 1

Set weight: 3.1 kg, subject to actual weight

Set size: 48x34x53cm (length x width x height)
