SH034-001SH034-002SH034-003SH034-004SH034-005SH034-006SH034-007SH034-008SH034-009SH034-010


System

Main Processor: Multi-core High- performance processor

Operating system: Embedded LINUX operating system

Image Sensor

Sensor: 1/2.7”, HD progressive scan CMOS

Pixel: 5MP(2560*1920)

Minimum illumination: 0.01LUX/F1.2

Lens Lens Parameter: Focal length:4mm, 5MP  ,View angel: D 110  H 80  V 58, starght light lens
Zoom Digital zoom: App supports 3x digital zoom
Video

Resolution: 1920P(2560*1920),1440P(2560*1440),720P(1280*720) VGA(480*360)

Video Compression : H.265

Image Frame Rate:15~25fps

Automatic Exposure: Adjust the image automatically to view clearly

Wide Dynamic: Starlight level, digital wide dynamic

IR-Cut: No color cast during the day,night vision good

Night Visibility

IR mode:black&white night vision, it automatically turns on the spotlights upon detection of motion, be in full-color, Startlight night vision

White light mode:turn on the spotlights to offer outdoor lighting and even adjust their brightness as needed

Alarm mode:trun off the spotlights,switch the camera to the black&white night vision via SriHome App

Night vision

IR night vision: Support

Full color night vision: Support startlight full color(Outdoor non-black environment, no need for fill light)

Audio

Protocol: G711U

Function: Built-in Mic & Speaker, supports two-way audio

Storage

TF card Storage: MicroSD card (Max 128GB)

Video standard: HD/SD optional

Video recording: Manual recording、alarm recording

View video: Support remote video playback

NVR storage: Support

Network

Wireless: 2.4G (11bng) mixed  &  5G 11a/n/ac mixed

Distribution mode: 1: QR code distribution network, 2: AP hotspot distribution network

online users: Simultaneous online viewers: 5 people are supported at the same time.

AP Hotspot: Connect to a smartphone via AP hotspot mode, monitoring without a network

wired network: RJ45 Fast Ethernet interface

Privacy protection

privacy protection: By default, the first user added is the administrator, and other users need authorization to access

Advanced Privacy Area: Support 4 optional area masking, increase privacy protection

Alram

Alram: Motion detection alarm /Humanoid alarm (need to turn on motion detection at the same time)

Alarm Notification: Push alarm notifications to your smartphone

Windows PC

Suppoet VMS,Other third-party ON-VIF clients

Others

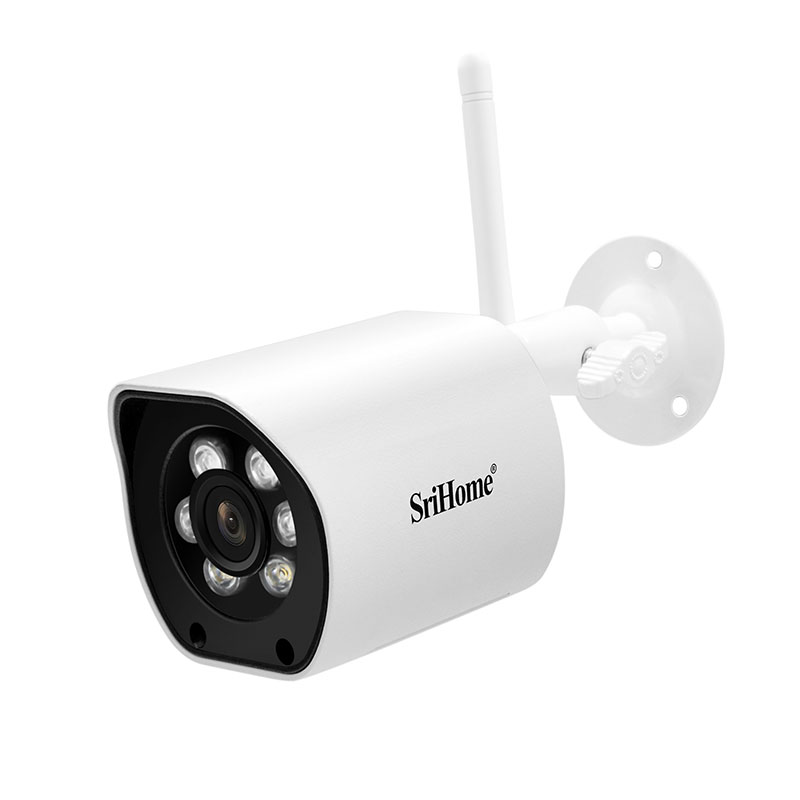

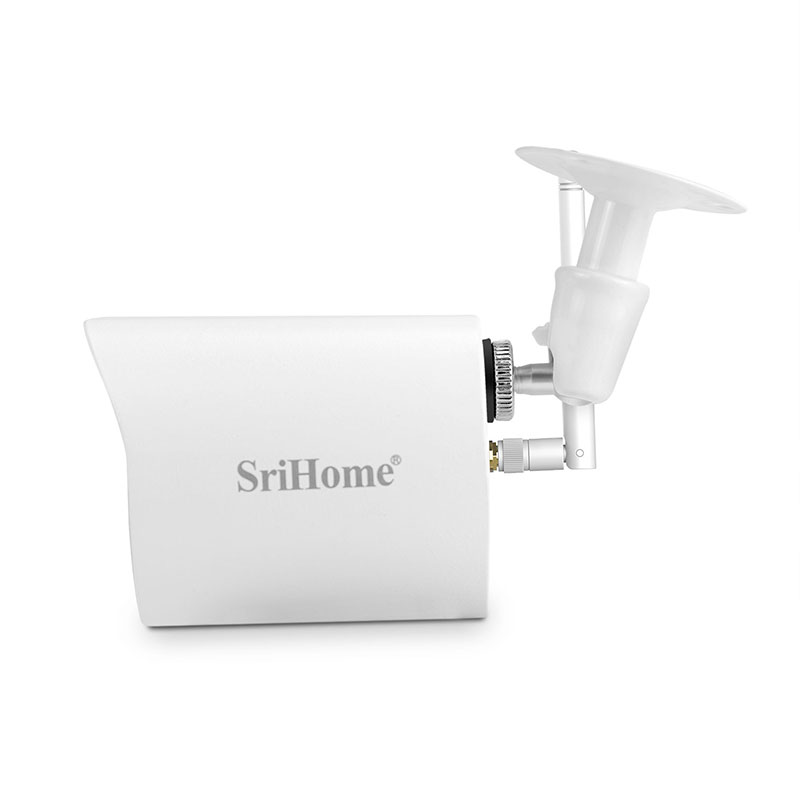

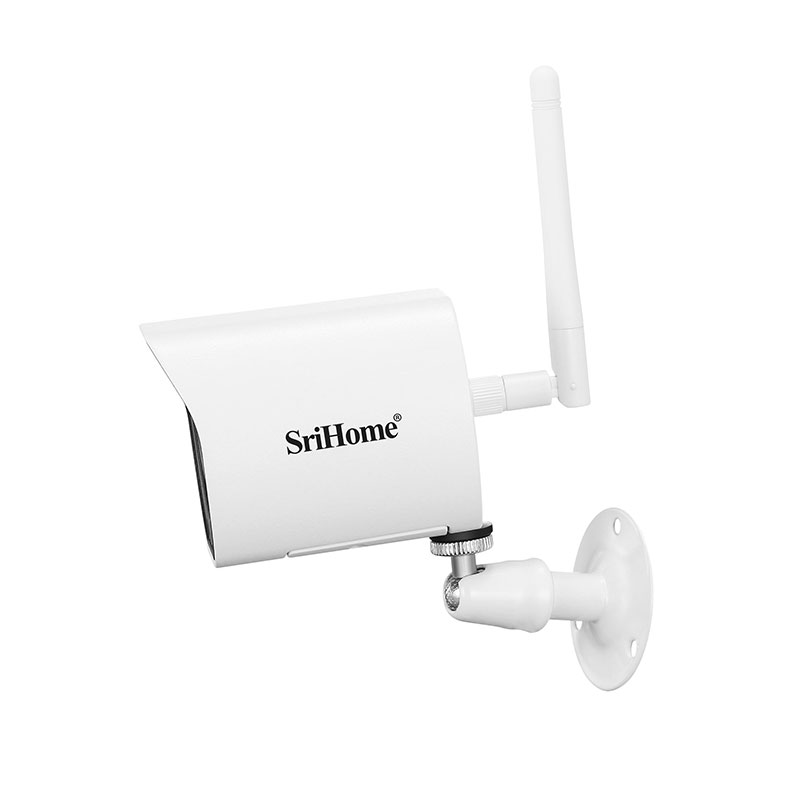

product type: All metal bolt, indoor/outdoor use

Power interface: Input AC: 100~240V, Output DC: 12V/0.5A

Operating temperature: '-10℃ ~50℃

Working humidity: 10%-90% RH

Working power consumption: 1.5~5W(daytime 1.5W)

N.W.:280g, G.W.: 380g (Note:Actual Weight Final)

Accessories: 1*Adaptor, 1*bracket,1*User Manual, Screws

Product Size

Bodty size:85 * 60*60 mm(LxWxH)

Packaging size:84 * 84 *100mm (LxWxH)

Certification

Certified product:CE, FCC, RoHS
