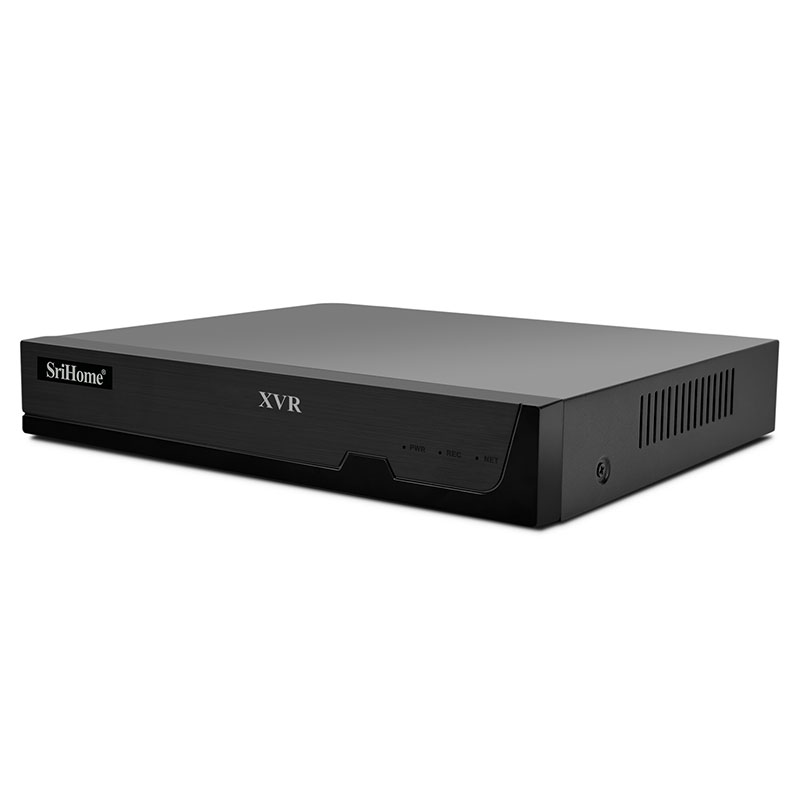

Operating System：Embedded Linux

Main control chip：MC6630

Language：Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese

Video Input：4CH

Resolution：Support 1280*720，1920*1080，1280*1440，1280*1920

Audio output：1ch HDMI, 1ch VGA

Decoding format：H265+/H264

Input Channels：Maximum support 5MN

Coaxial bidirectional：Support two-way Audio

Decoding format: Support G.711/ADPCM

HDMI interface: Support HDMI audio output

Coaxial Audio: 4ch

Hard disk interface: 1 SATA interface(don't support e-sata)

Hard drive capacity: Maximum support 16TB

Video recording: Manual recording, timed recording, motion detection

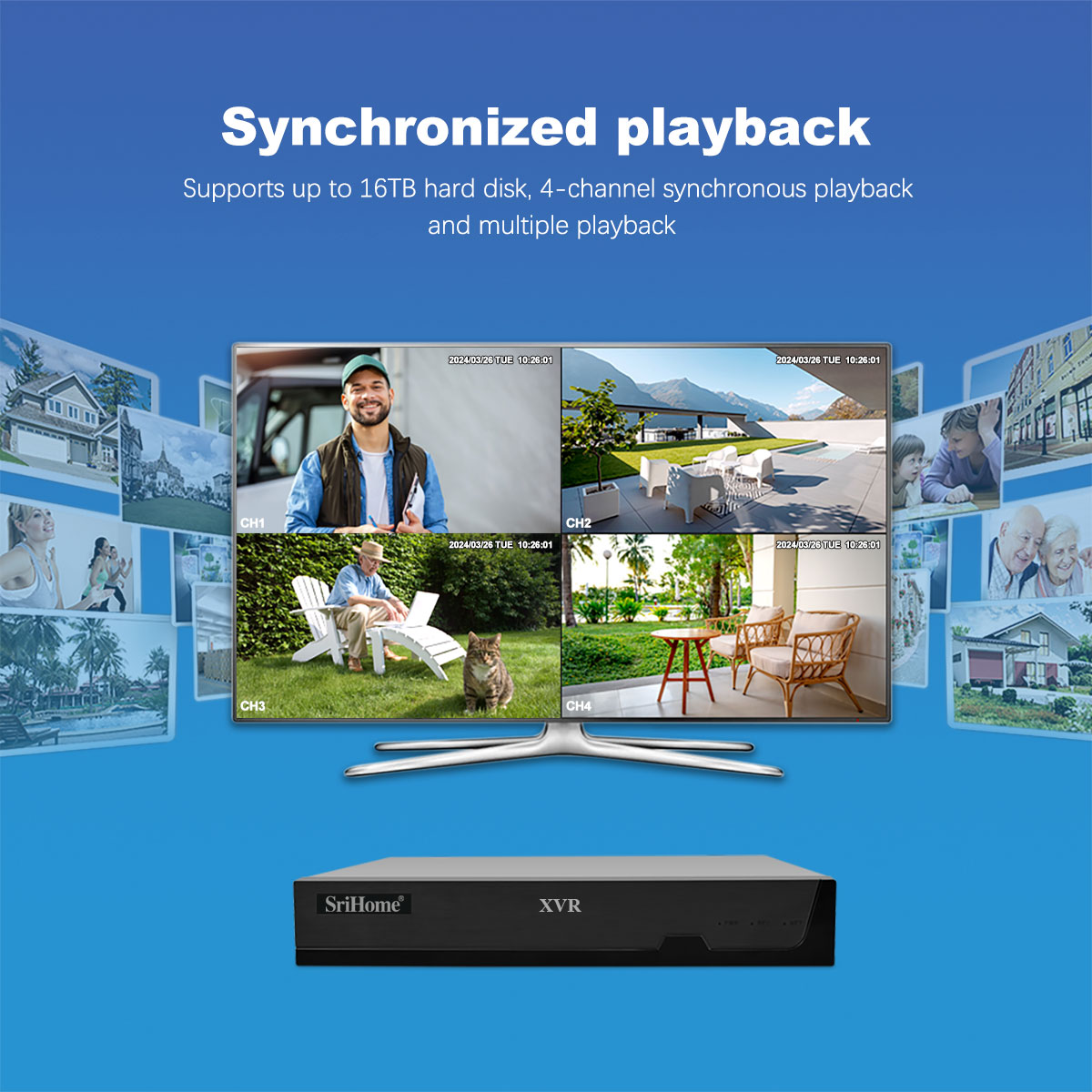

Playback Mode: Support 4CH simultaneous playback

Backup Mode: Support USB mobile hard disk, U disk

Network port: 10/100 Mbps Ethernet (RJ-45)

Network Protocol: TCP/IP,HDCP,DDNS,NTP,UDP,SMTP

Alarm mode: Motion detection alarm, human detection alarm

Alarm reminder: Humanoid mark, screen prompt, APP push

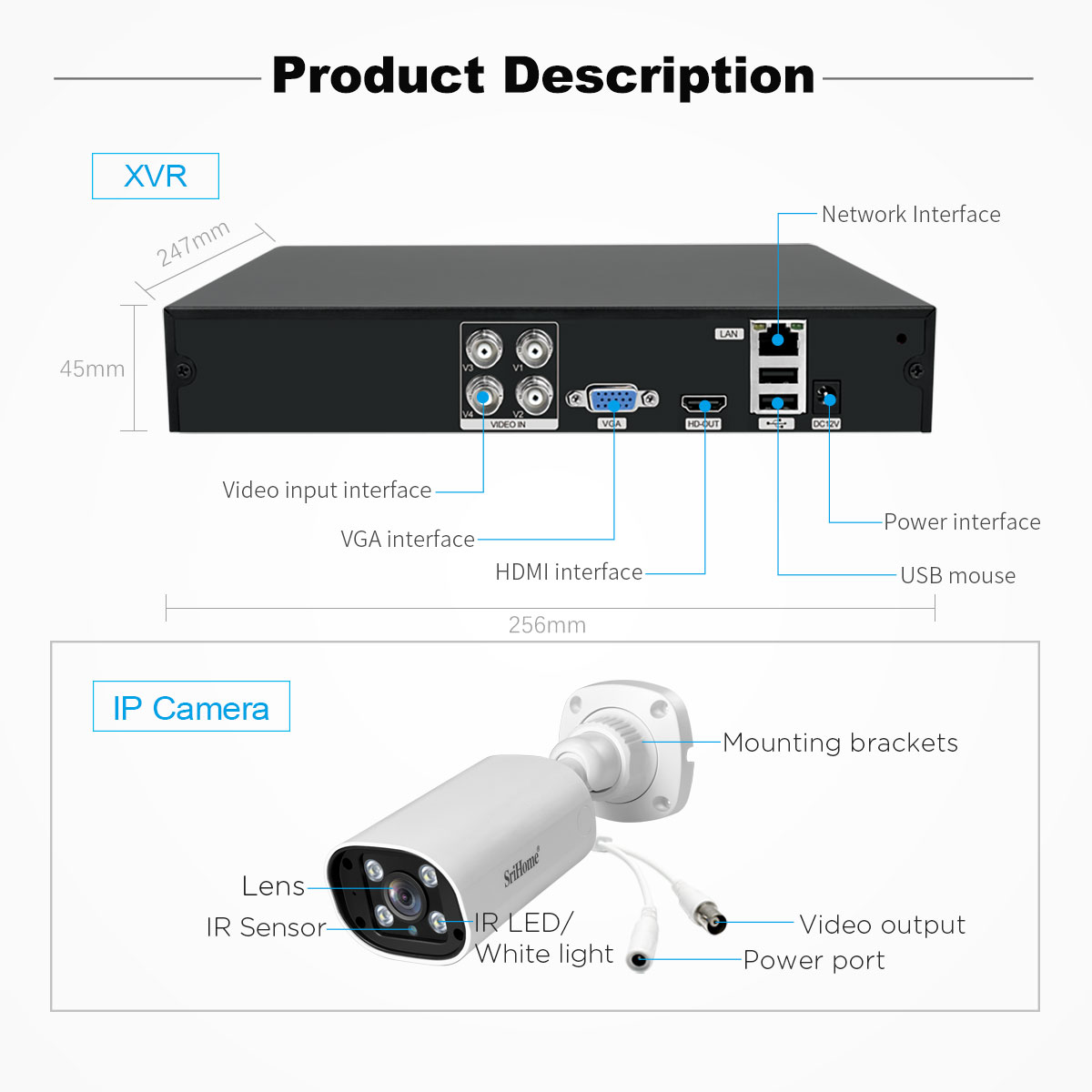

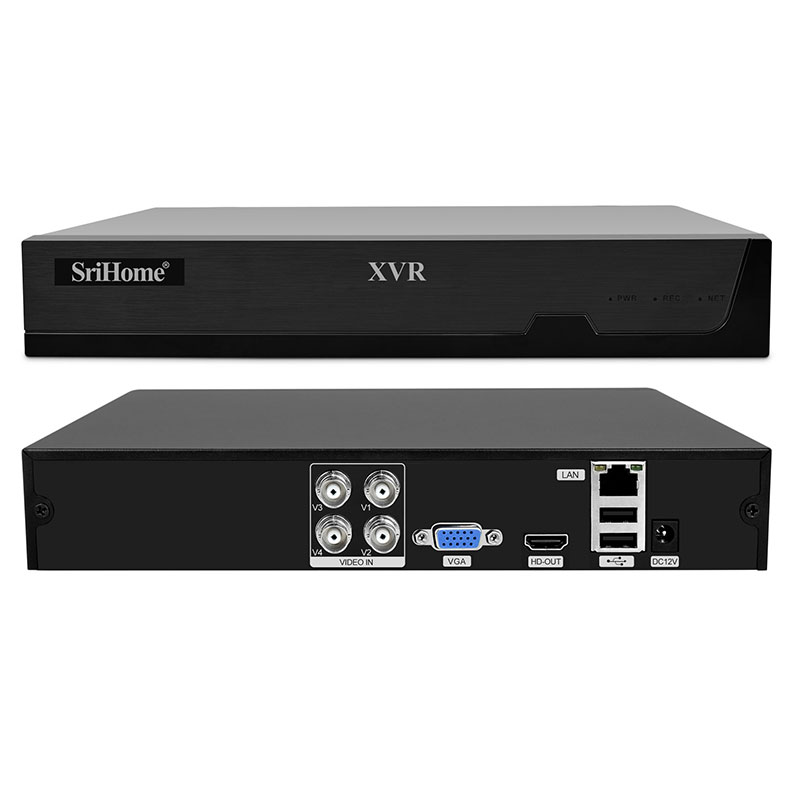

Network Interface: 1* RJ45 Network Interface

USB Interface: 2*USB2.0

HDMI Interface: 1

VGA Interface: 1

Power Interface: 1个 DC 12V 2A (5.5*2.1*10 )

Working temperature: -10°C ~50°C

Working humidity: 10%~90% RH

Support SriHome APP, iOS and Android remote access

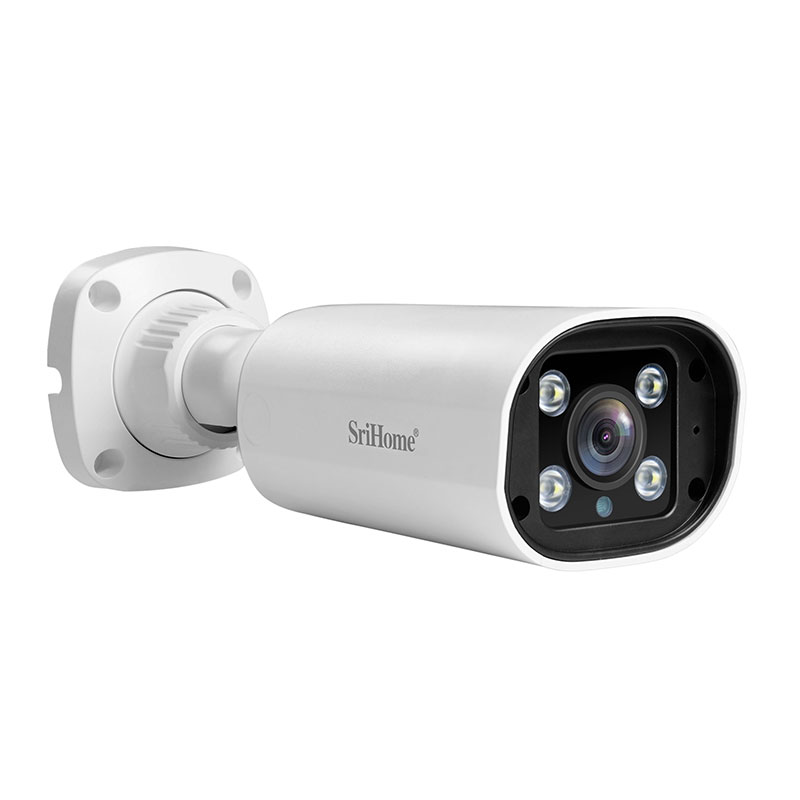

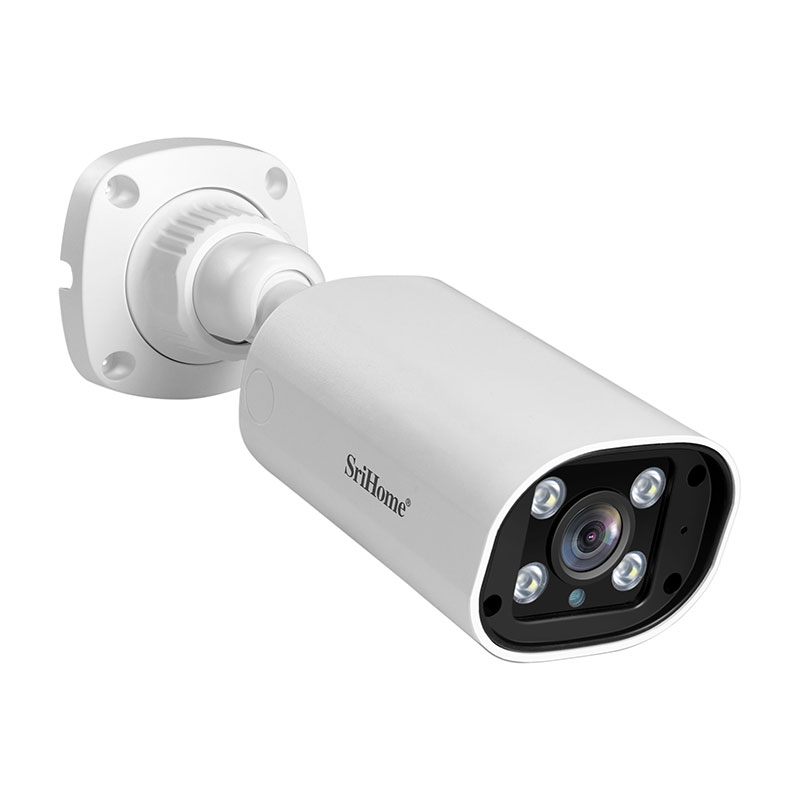

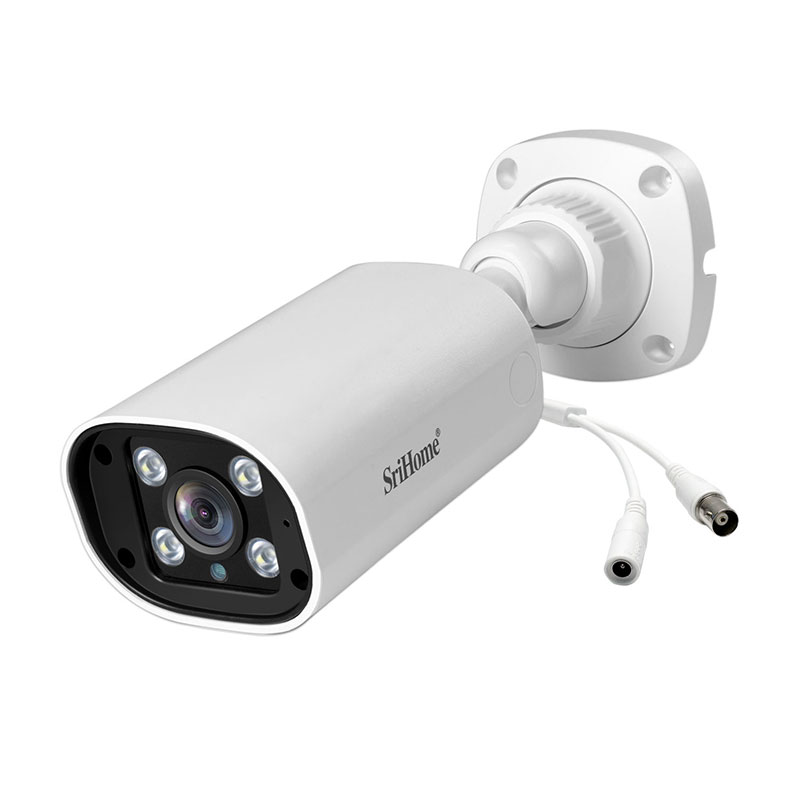

Model: AHD029（1080P）

Main processor: ARM11

Sensor: 1/4inch，2MP high definition color CMOS sensor

Signal output: Support AHD 1080p25    /    cvi 1080p30

Parameter: Focal Length：4mm，2MP

Field of view: D 110 H 80 V 58

Output: Support AHD 1080P@25fps    /    cvi 1080P@30fps

Automatic exposure: Automatic exposure and white balance

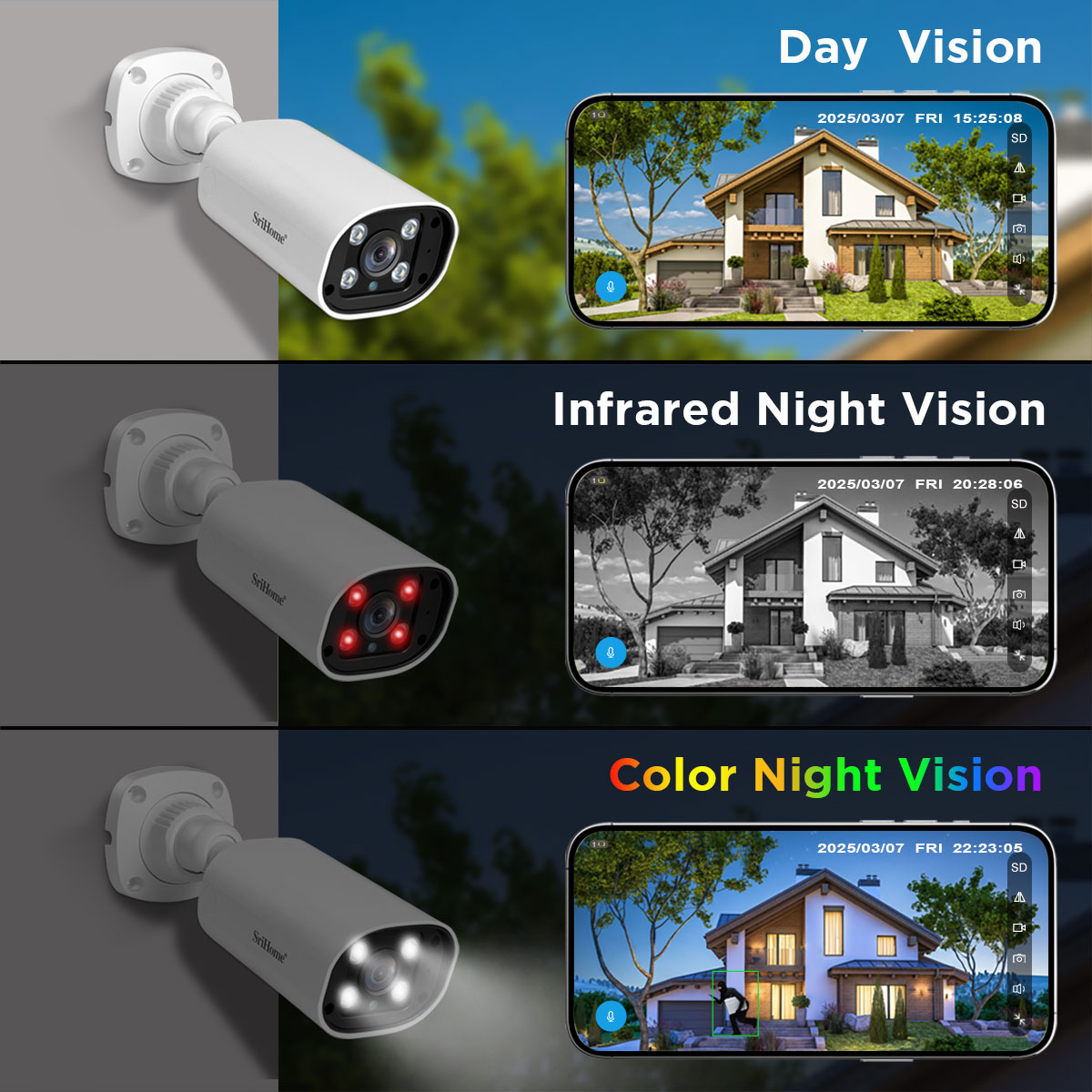

Night Vision: High power infrared light, high definition night vision

Minimum illumination: 0.01 Lux / F2.0

IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision

Electronic Amplification: 3x Electronic magnification

Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on.

Support two-way audio, built-in microphone and speaker

Product Type: Plastic camera, for indoor and outdoor use

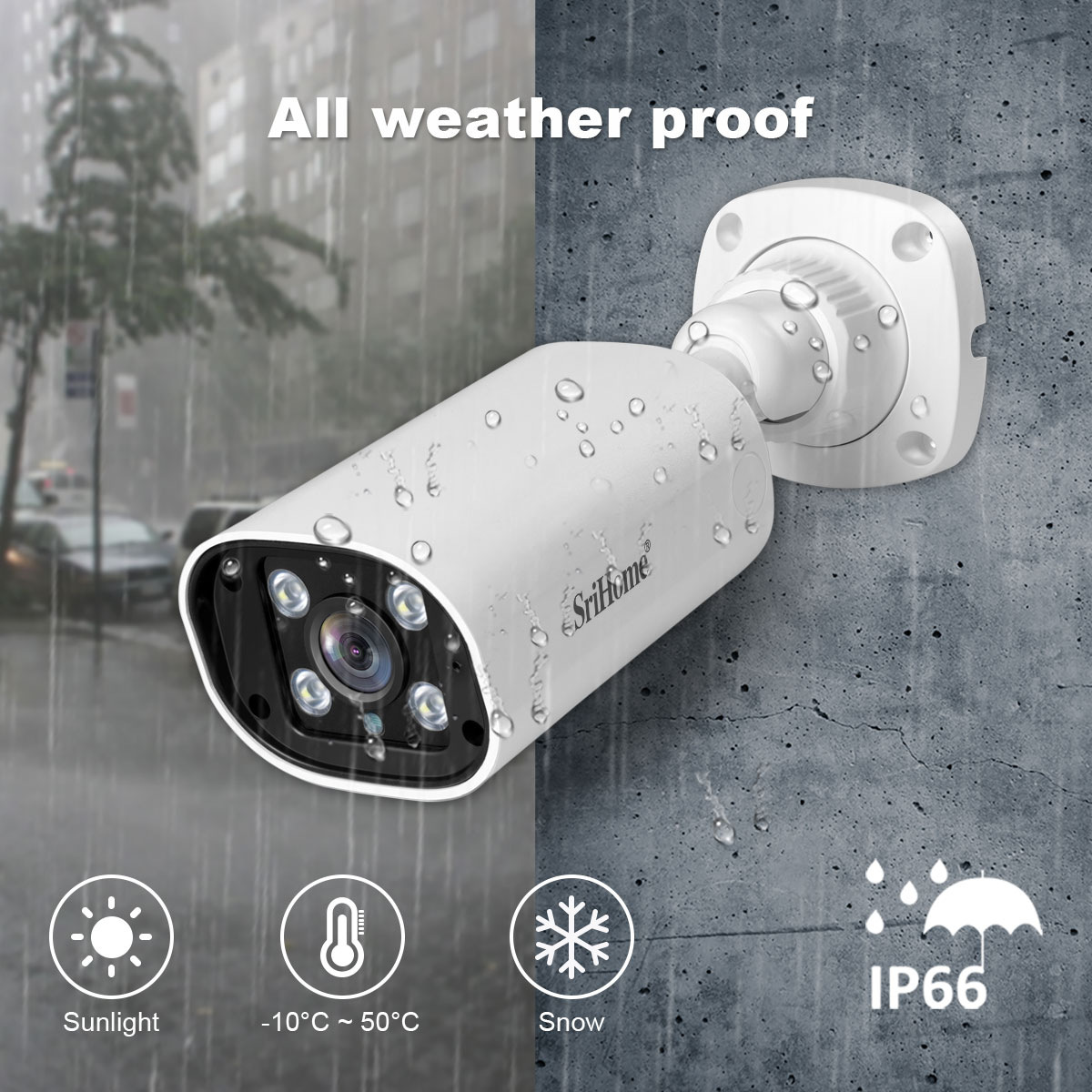

Waterproof grade: IP66

Power adapter: Input AC：100~240V

Working temperature: -10°C ~50°C

Working humidity:  10%~90% RH

Product weight: Net weight：0.3kg

Product size: 84*84*100 mm（(length x width x height)

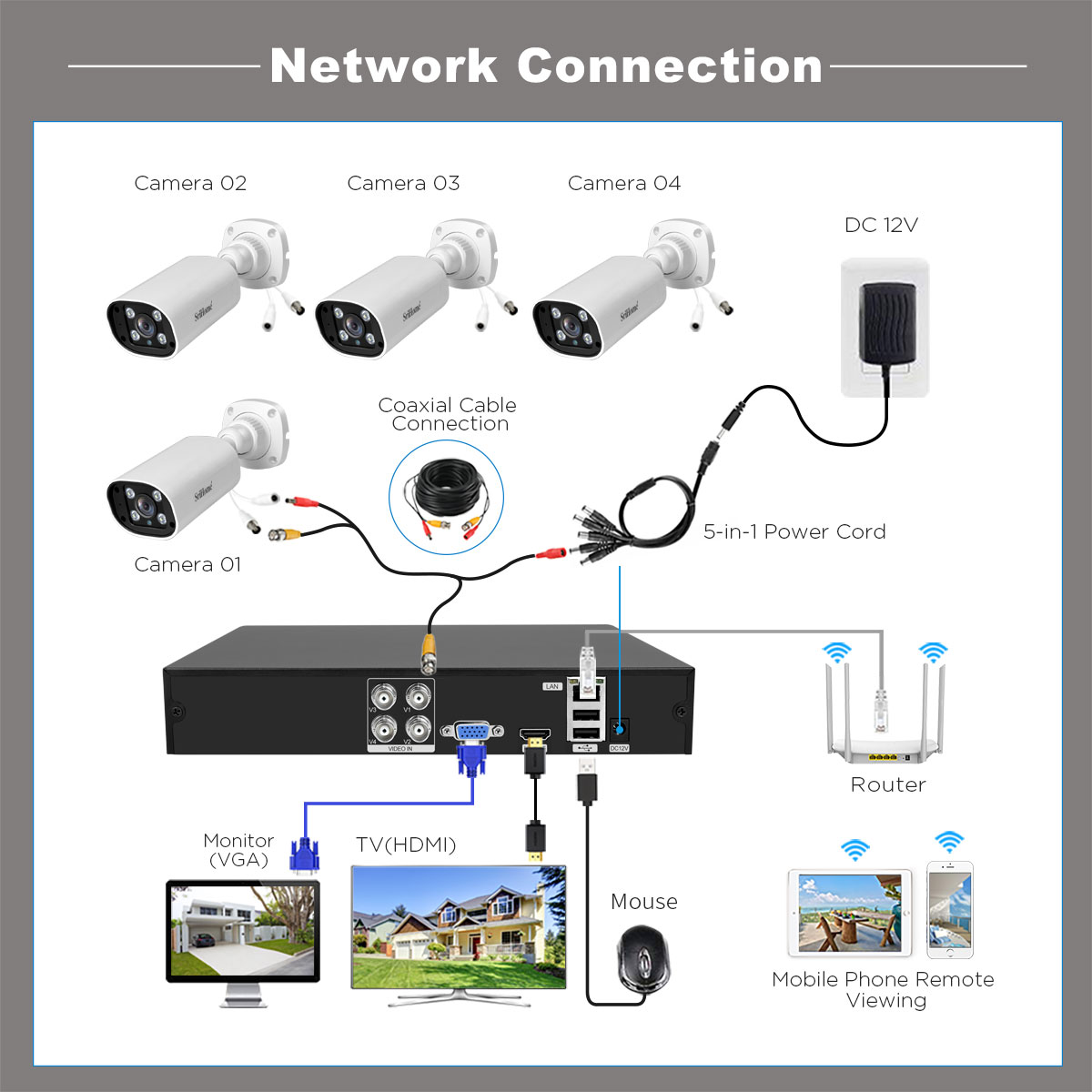

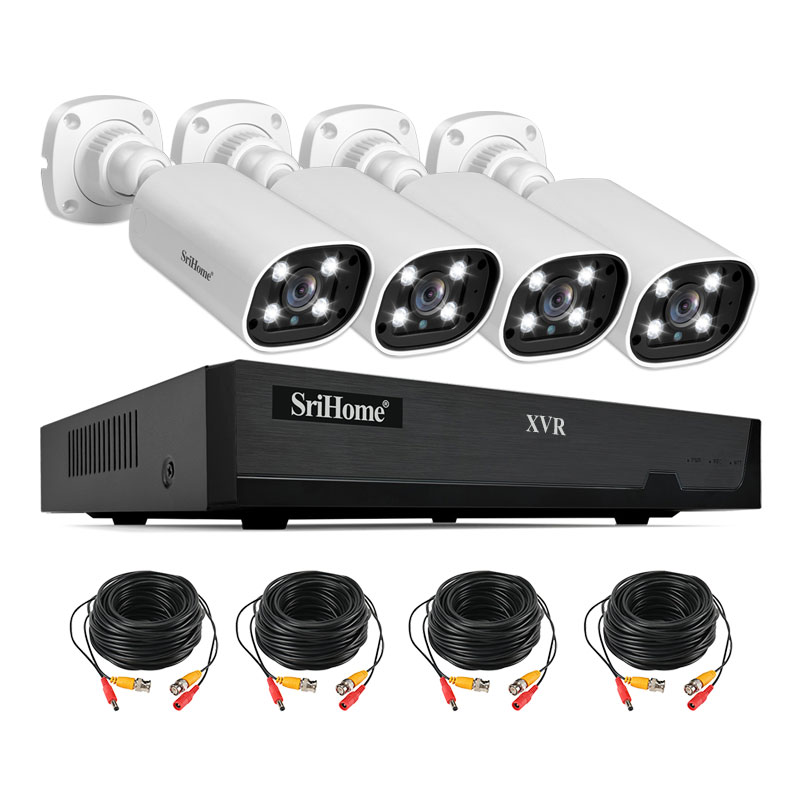

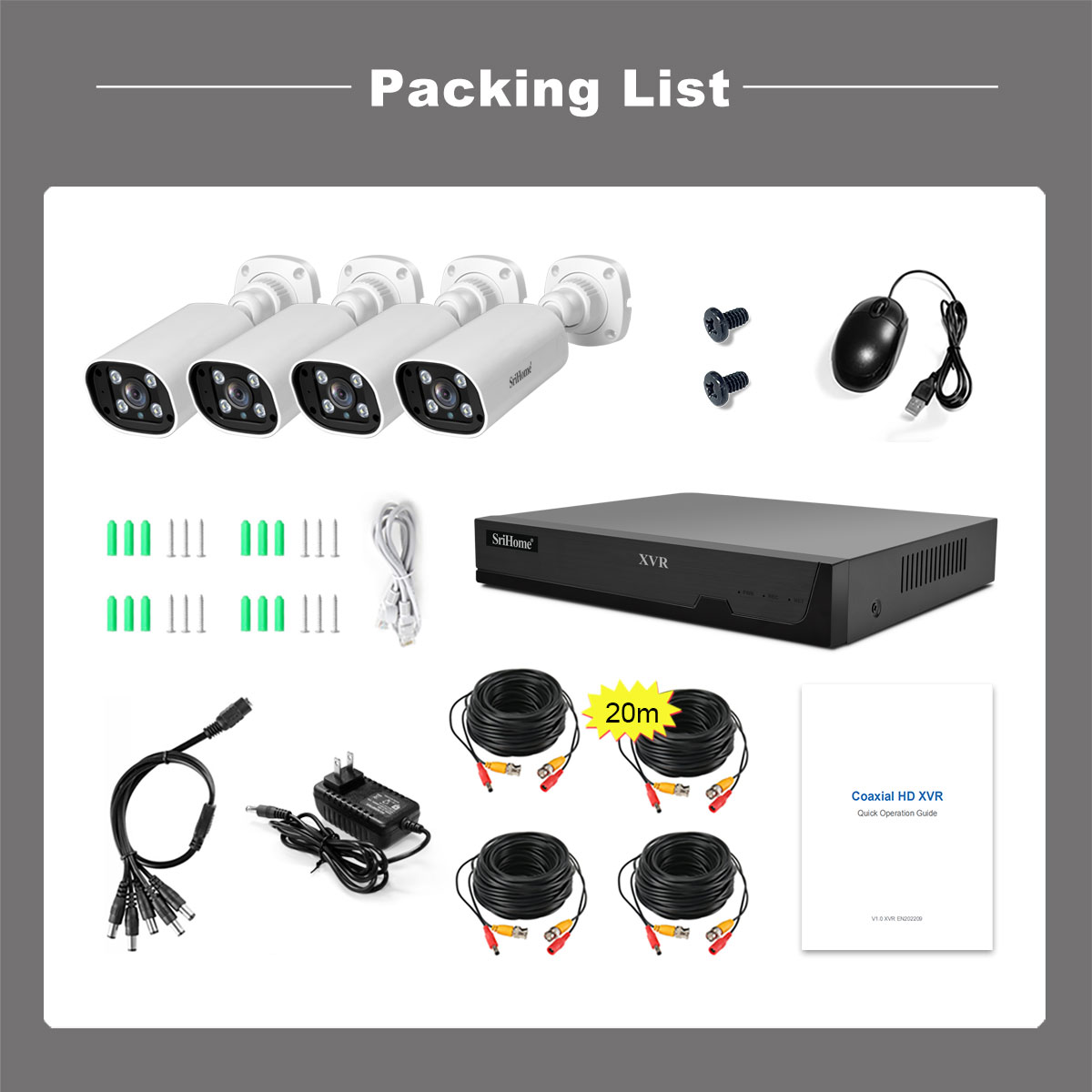

XVR: 1* XVR  NVS008

Camera: 4*XVR AH030

Power Adapter: 1*12v2A

Screw Pack: 5 Packs

Manual: 1

1 to 5 power cord: 1

Net Cable: 1

Coaxial Cable: 4*20M

Kit weight: 3.4kg Based on actual weight

Kit Size: 28.2. x 15.5. x 25.7cm (length x width x height）

CE， FCC， RoHS    1 year warranty
