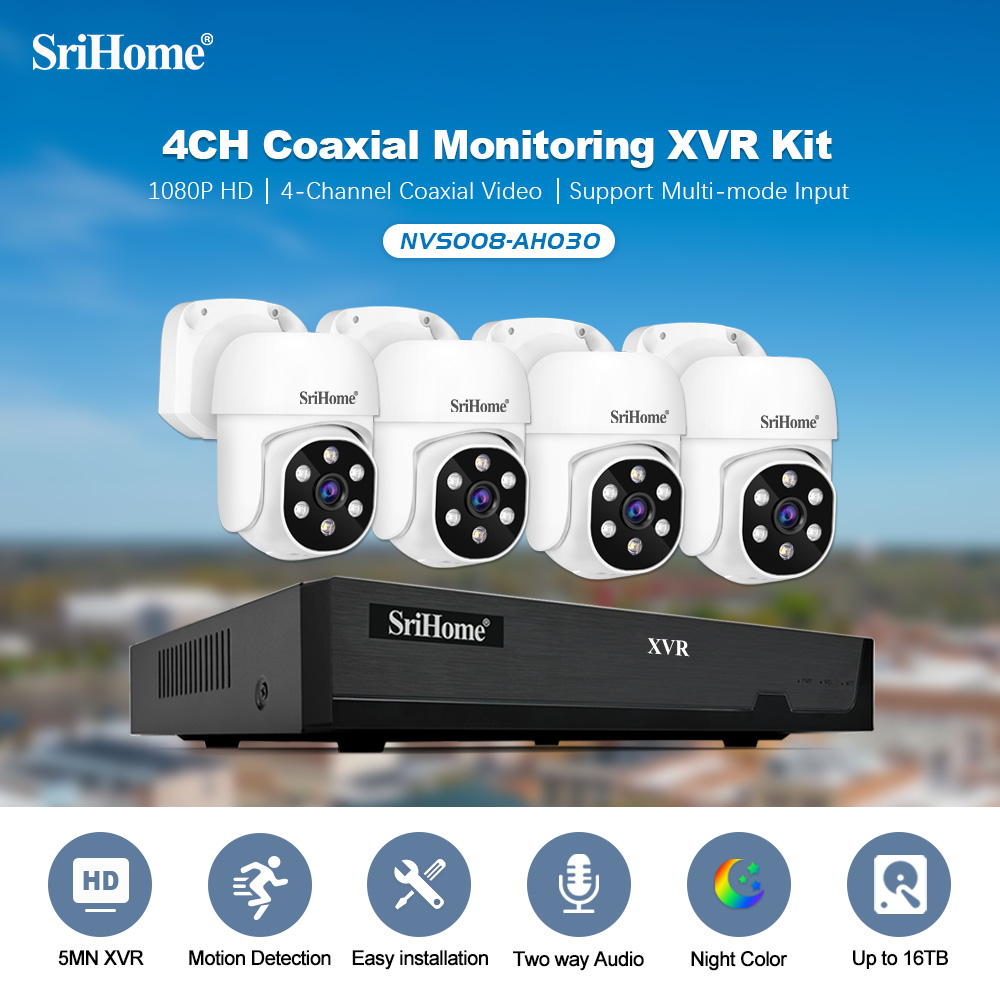

NVS008-AH030

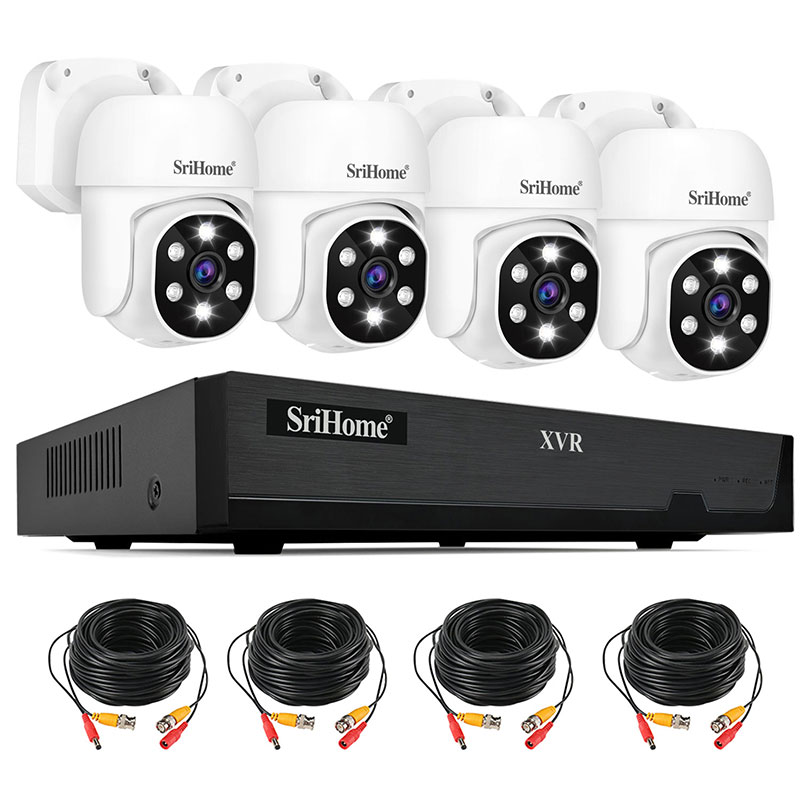

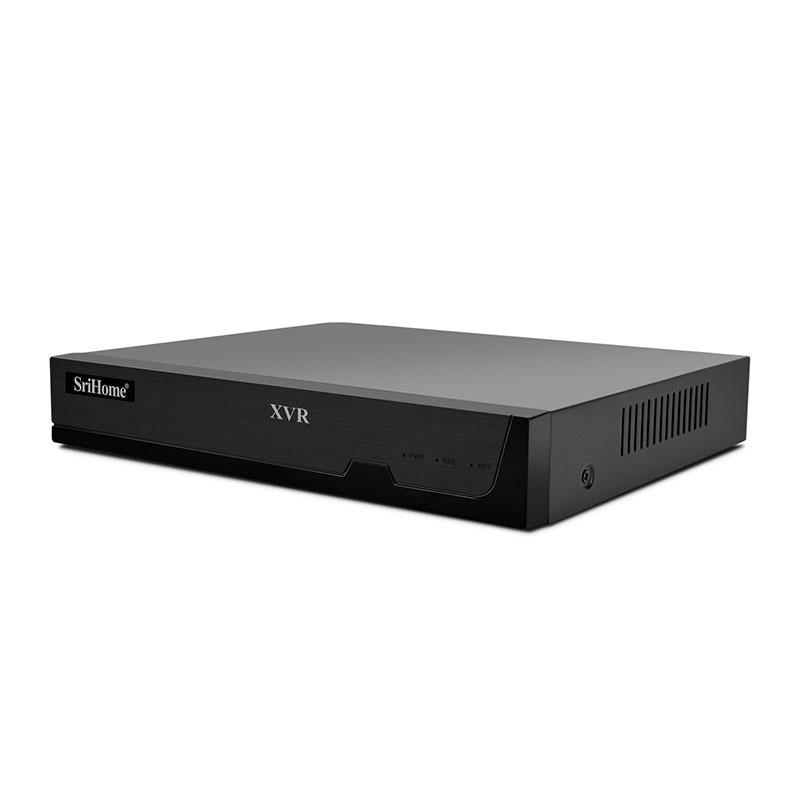

1. 1080P four-channel analog dome camera XVR set
2. TVI/AHD/DVR/NVR/CVI five-in-one function, multi-mode input
3. Support SriHome cloud platform, remote monitoring in one step
4. Support coaxial audio monitoring, APP supports two-way voice intercom
5. Support infrared dual light, full-color night vision (alarm trigger)
6. Support 16TB hard disk, support 4-channel synchronous playback and multiple playback
7. Support H.264/H.265 encoding front-end adaptive access

NVS008-AH030-001 NVS008-AH030-002 NVS008-AH030-003 NVS008-AH030-004 NVS008-AH030-005 NVS008-AH030-006 NVS008-AH030-007 NVS008-AH030-008 NVS008-AH030-009 NVS008-AH030-010 NVS008-AH030-011 NVS008-AH030-012

System	Operating system：embedded linux Chip：MC6630 Memory：1G Language：Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese

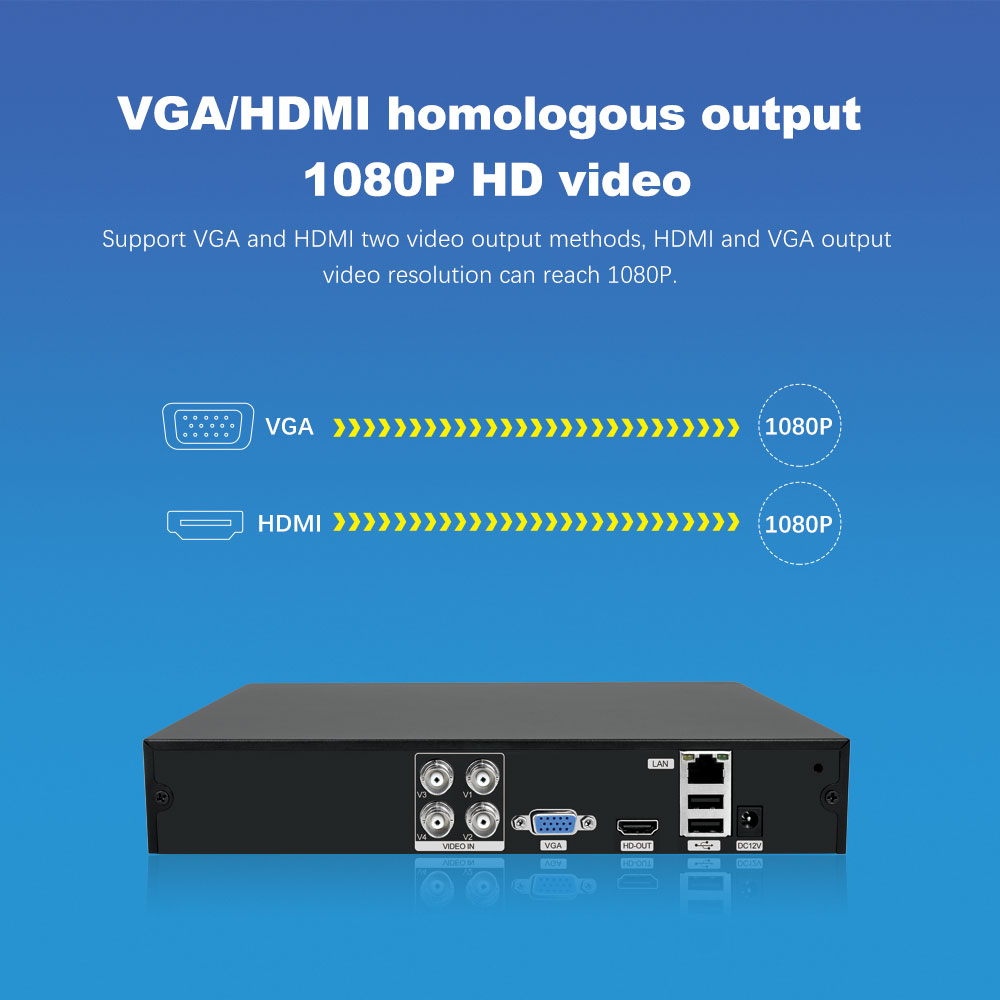

Video	Video Input：4 Channel Video Resolution：Support 1280720，19201080，12801440，12801920 Video Output：1ch HDMI(1080P), 1ch VGA(1080P) Compression Format：H265+/H264 BNC output：Not support Input channel：Maximum support 5MN
Audio	Coaxial bidirectional：Support two-way Decoding format：Support G.711/ADPCM HDMI interface：Support HDMI audio output Coaxial audio：4 Channel
HDD	Internal HDD：1 SATA Port(Not support e-sata) Capacity：Up to 16 TB
Recording/Playback	Recording：Manual recording, timed recording, motion detection Playback：Support 4CH simultaneous playback Backup：Support USB mobile hard disk, U disk
Network	Lan port：10/100 Mbps Ethernet (RJ-45) Network protocol：TCP/IP,HDCP,DDNS,NTP,UDP,SMTP
Alarm	Alarm Mode：Motion detection alarm, human detection alarm Alarm Reminder：Humanoid mark, screen prompt, APP push

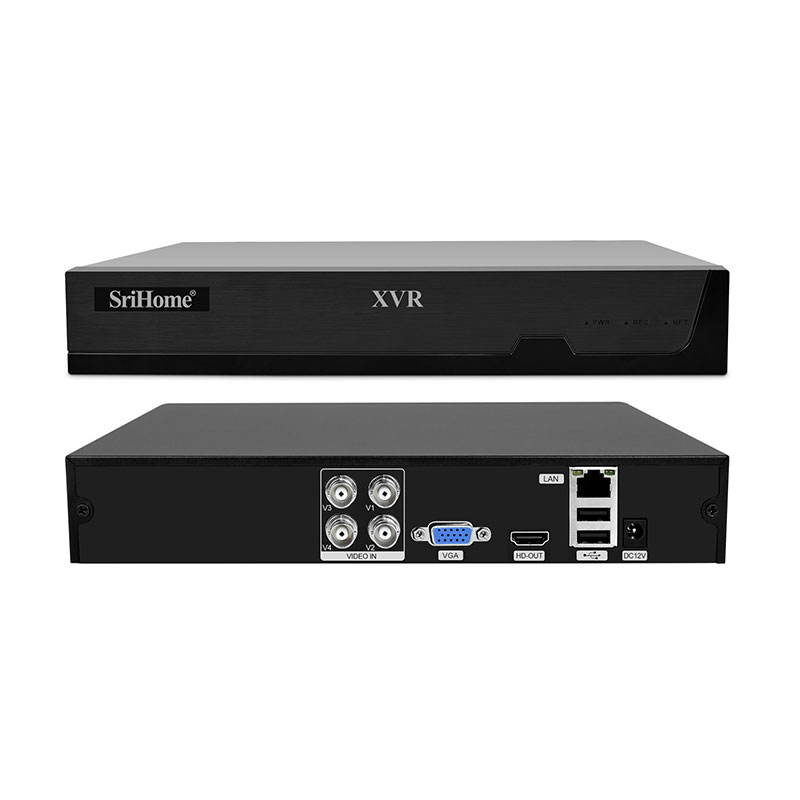

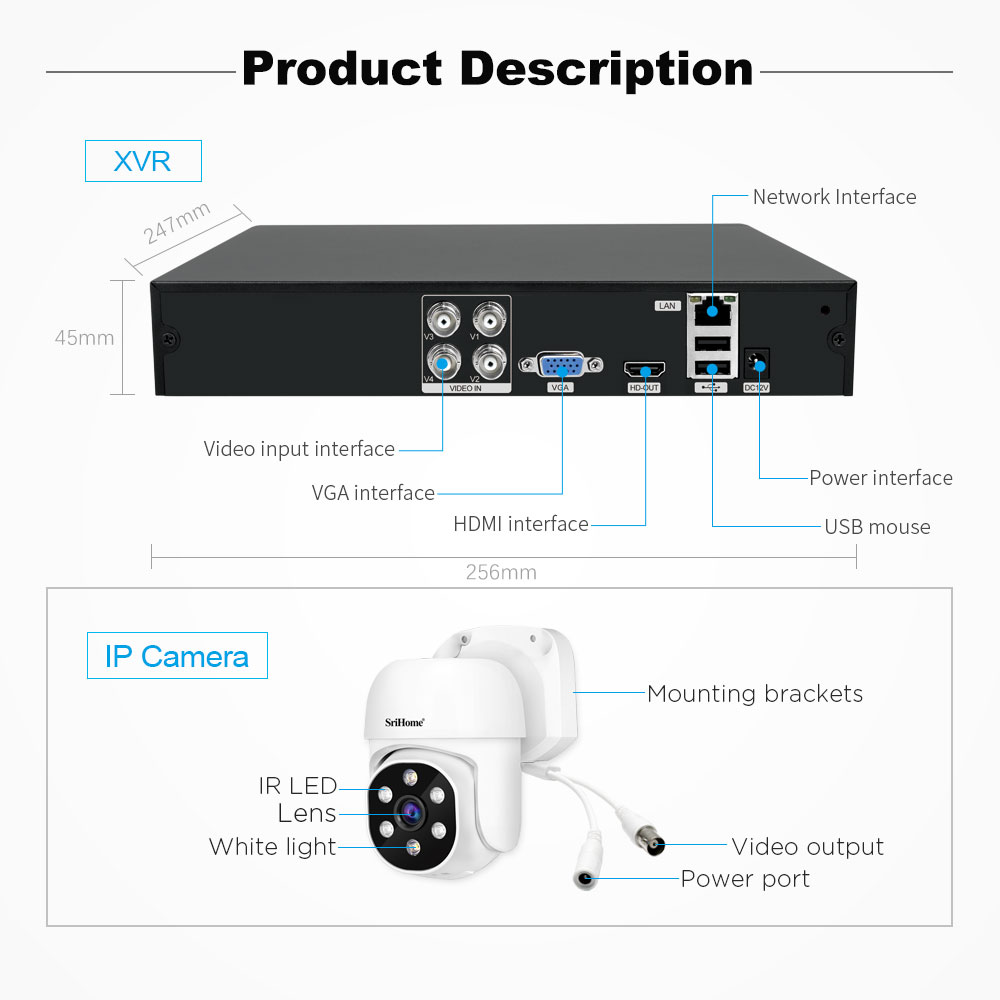

External interface	Lan Interface：1* RJ45 USB Interface：2* USB2.0 HDM Interface：1 VGA Interface：1 Power Interface：1个 DC 12V 2A (5.52.110 )
Others	Working Temperature：-10°C ~50°C Working Humidity：10%~90% RH
APP	SriHome APP, iOS & Android remote access

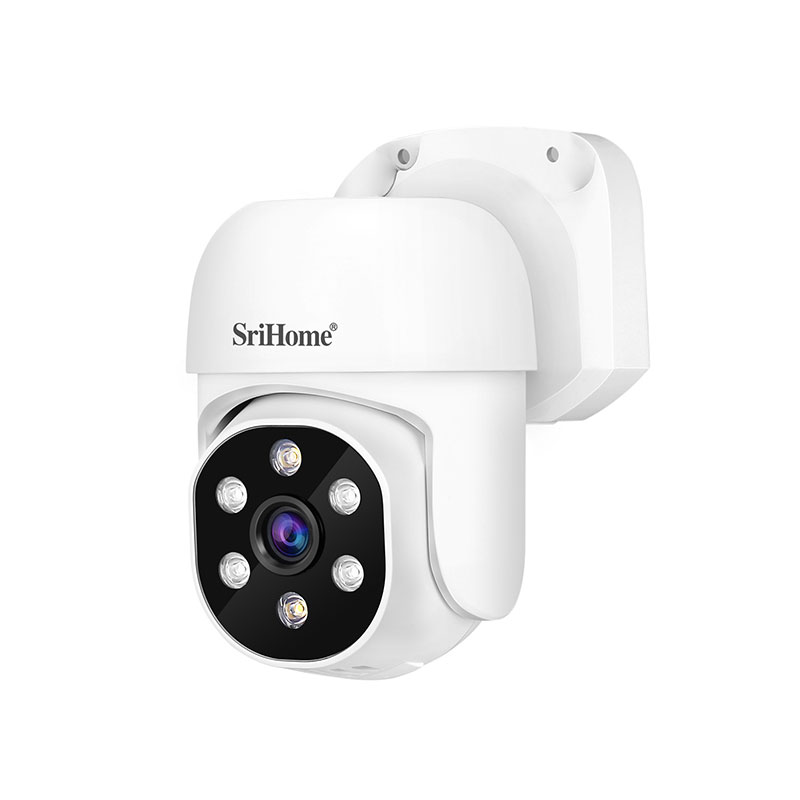

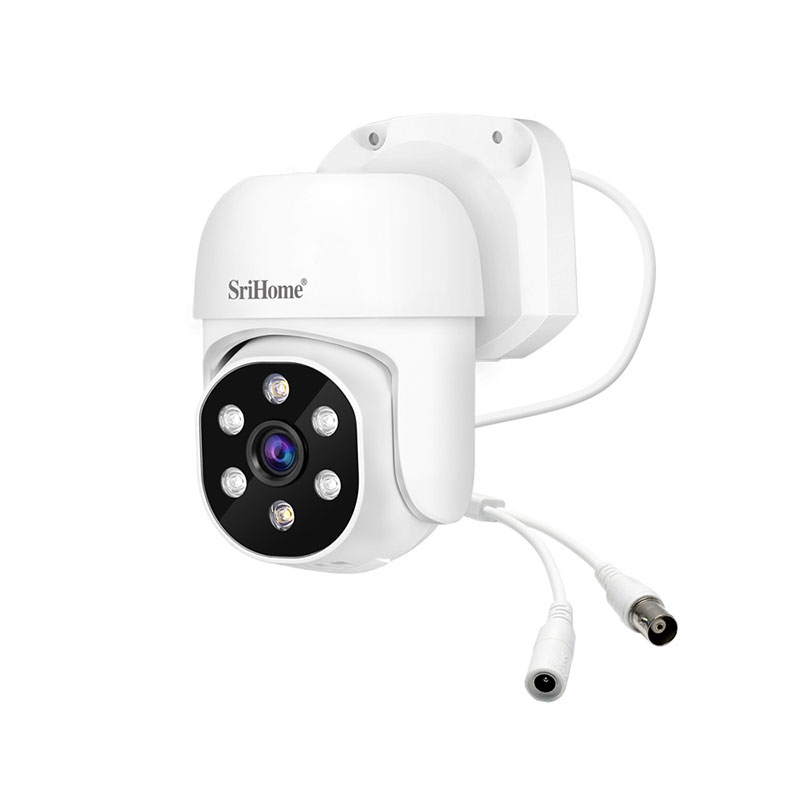

	Standard Cameras Specification
Model	NVS008 front-end bare metal (AH030 Exterior)*4

System	Main Processor: ARM11 sensor: 1/4.5 inch，2Megapixel progressive scan CMOS (OV2732） Signal output: Support AHD 1080p25 / cvi 1080p30
Lens	Lens Parameter: Focal length: 4mm, 2MP lens Angle of View: Pan:73°, Tilt: 53.6°, Diagonal: 95.2°
Video	Resolution: 1080P(1920x1080) Frame rate: PAL: 25fps NTSC:30fps Automatic Exposure: Adjust the image automatically to view clearly Night vision: High-power infrared light, high-definition night vision Min.Illuminatioin: 0.01 Lux / F2.0 IR-Cut: Built-in IR Cut, no color deviation indoor or outdoor, highly sensitive night vision Electronic amplification: Three times electronic amplification
Pan/Tilt	Pan/Tilt：Pan:350°, Tilt: 90°
Night Vision	Alarm mode：The default is black and white night vision. When an alarm is detected, the white light is turned on.
Audio	Support two-way audio, built-in microphone and speaker
Other	Product Type: PTZ camera，for indoor and outdoor Waterproof Degree: IP66 Power Supply: Input AC：100~240V，12V/500mA Working Temperature: -10°C ~50°C Working Humidity: 10%~90% RH Weight: 130g Size: Item size：14012087mm (LxWxH)

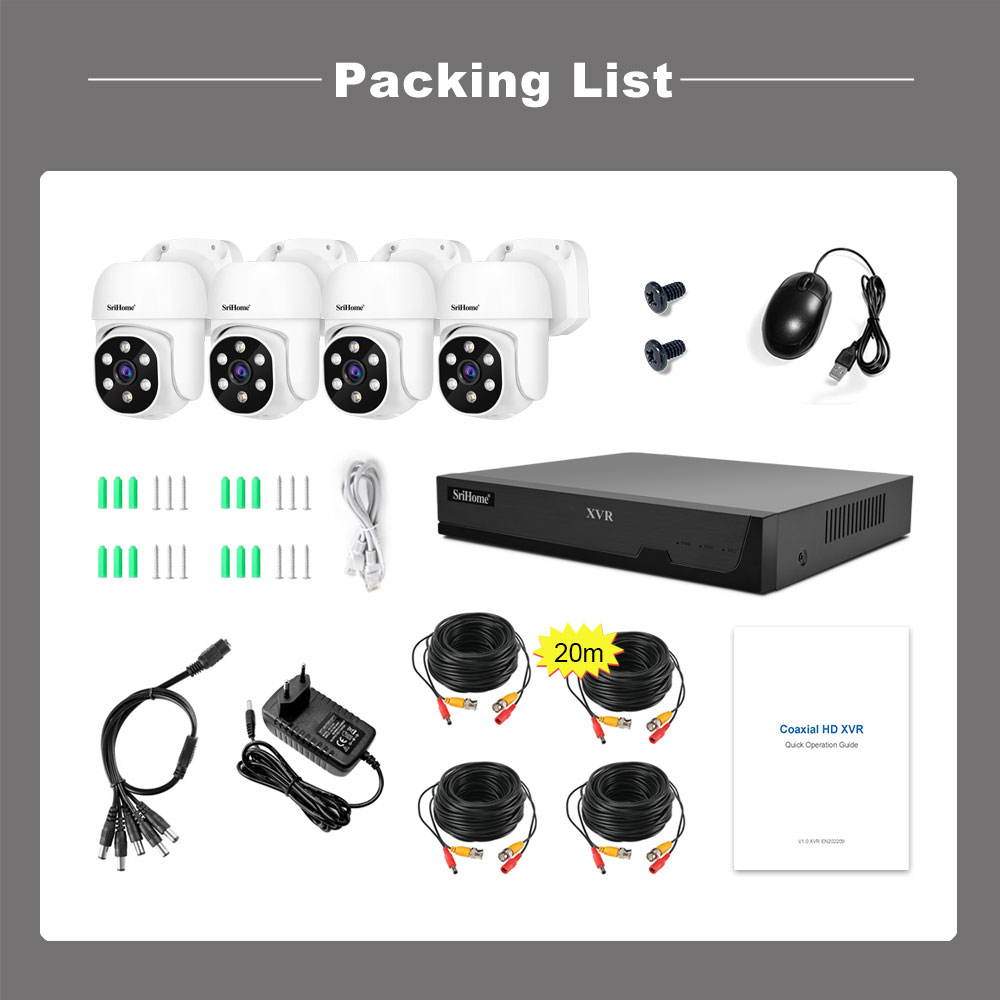

Kit Accessories	Camera: 4 Analog cameras Power Adapter: 12V/500mA Screw pack: 5 User manual: 1 Network cable: 1 Coaxial Cable：420M
Other	Kit weight：4kg， subject to actual weight kit size：282mm x 226mm x 257mm (LxWxH)
Certifiction	CE， FCC， RoHS 1-Year Warranty
