system |
Main processor: multi-core high-speed processor Sensor: 1/3 inch, 5 million pixels Compression format: H.265 |
lens |
Lens parameters: Focus: 4mm, 5 million pixels Viewing angle: Field of view: D 110 H 80 V 58 |
video |
Resolution: 1920P(2560*1920), VGA(480*360) Frame frequency: 15 frames Auto Exposure: Auto Exposure White Balance IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect Electronic amplification: 3 times electronic amplification |
Lighting settings |
Alarm mode: Default is black and white night vision, trigger mobile alarm, automatically turn on white light, switch to full color night vision White light mode: The white light will be on during this time period from 17:00 to 8:00, the brightness is adjustable, and the night vision is full color Infrared mode: Turn off the white light and switch to normal night vision |
Audio | Built-in microphone, supports monitoring and intercom |
PTZ |
Tracking: supports humanoid tracking Rotation angle: horizontal: 300°, vertical: 90° |
Call the police |
Alarm: motion detection alarm, humanoid alarm (motion detection needs to be turned on at the same time) Alarm notification: mobile phone push notification Advanced area detection: supports customized motion detection alarm areas to improve alarm accuracy Sirens, warning lights: supported |
privacy protection |
Advanced rights management: The first user added by the system is the administrator by default, and other users must be authorized to access Advanced privacy area: supports 4 optional area masking to increase privacy protection |
network |
Remote access: P2P Wireless: 2.4G (11bng), supports WEP, WPA, WPA2 encryption methods Network distribution mode: 1: QR code network distribution, 2: AP hotspot network distribution AP hotspot: Connect through AP hotspot and monitor without network Protocol: Support RTSP/DHCP/DDNS/UPnP/Onvif |
other |

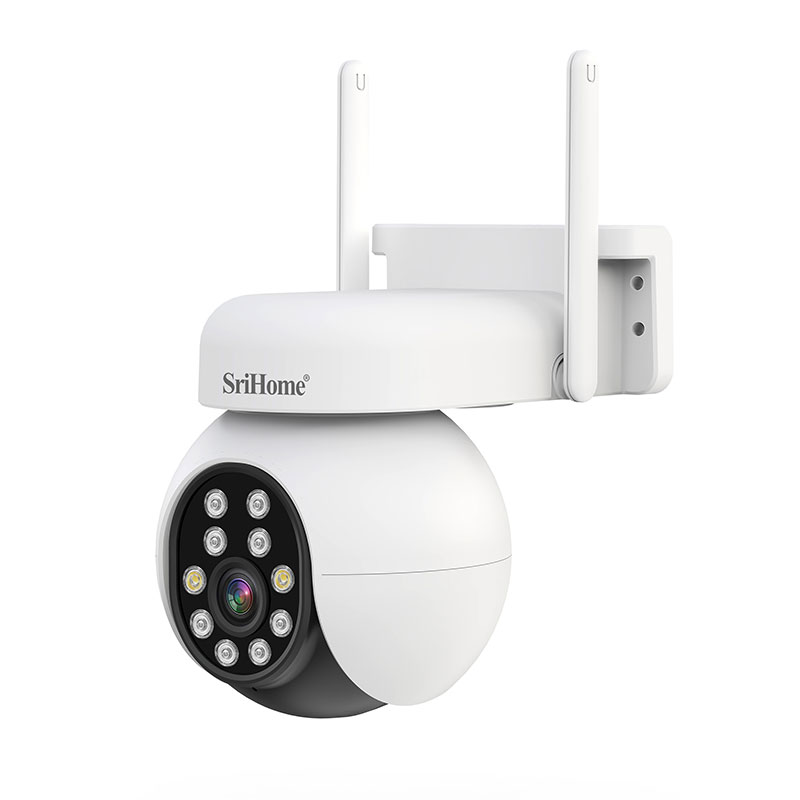

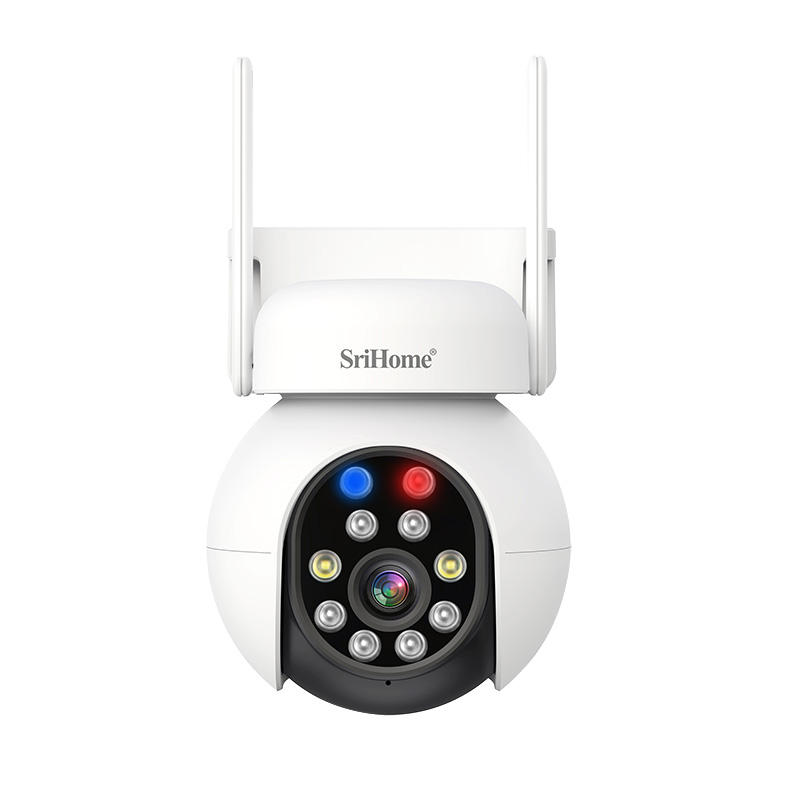

Product type: Plastic ball machine, indoor and outdoor use Protection level: IP66 Power adapter: input AC: 100~240V, output DC: 12V/0.5A Working temperature: -10°C ~50°C Working humidity: 10%~90% RH Weight: Net weight: 400g Gross weight: 600g (Note: The actual product shall prevail) Accessories: 1. Power adapter, 2. Instruction manual, 3. Screw bag 4. Card removal pin |
size |
Body size: 150* 137 *105 mm (length x width x height) Packaging size: 175*157*115mm (length x width x height) |
Certification | CE, FCC , RoHS |
