Video input: 8 CH

Video output: 1 HDMI, 1 VGA

Compressed format: H.265/H.264/Smart264

Coding ability: 8*2MP 25fps

Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (secondary stream)

Decoding format: H.265; H.264;

Audio: Support 2-Way Audio

Audio output: HDMI and 1 AUX audio output

Decoding format: G.711U; AAC

HDD interface: 1 SATA interface

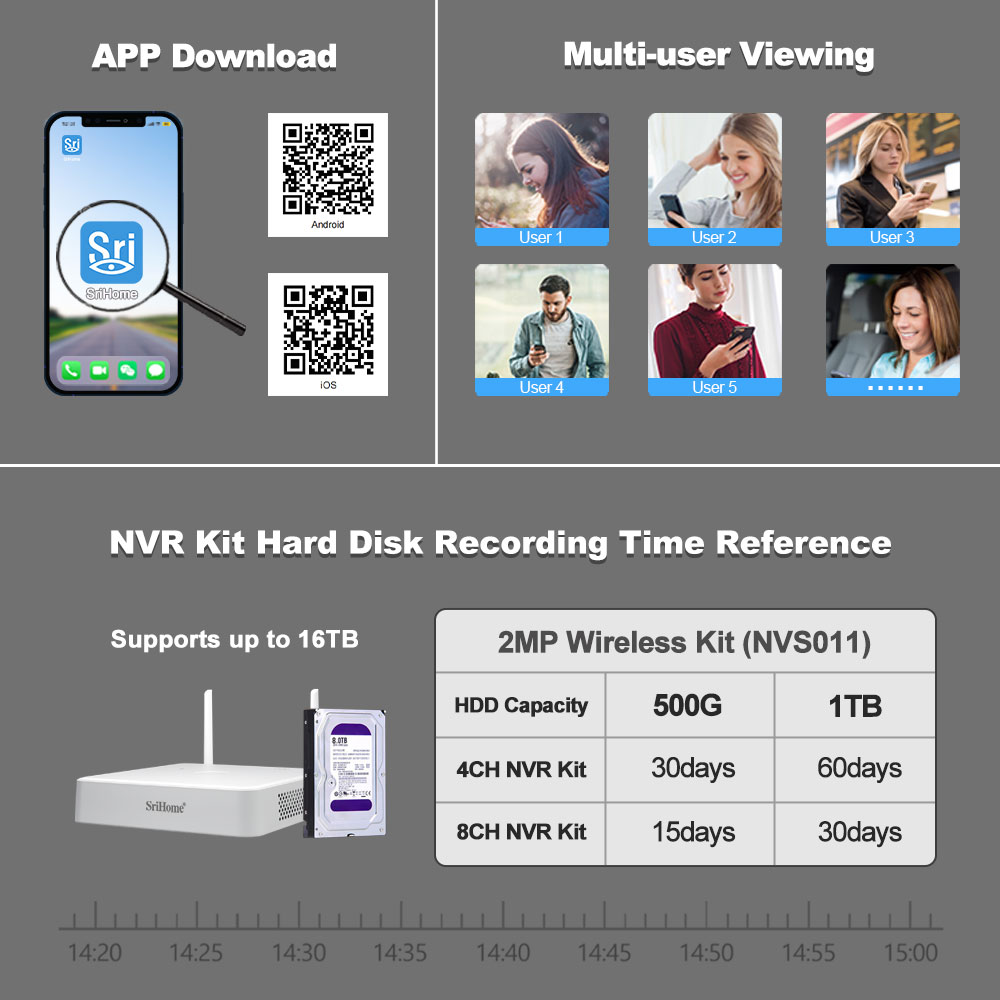

HDD capacity: Maximum support 16TB

Recording mode：Timing video recording, alarm video recording

Playback mode：Regular playback and APP playback

Backup mode：General backup

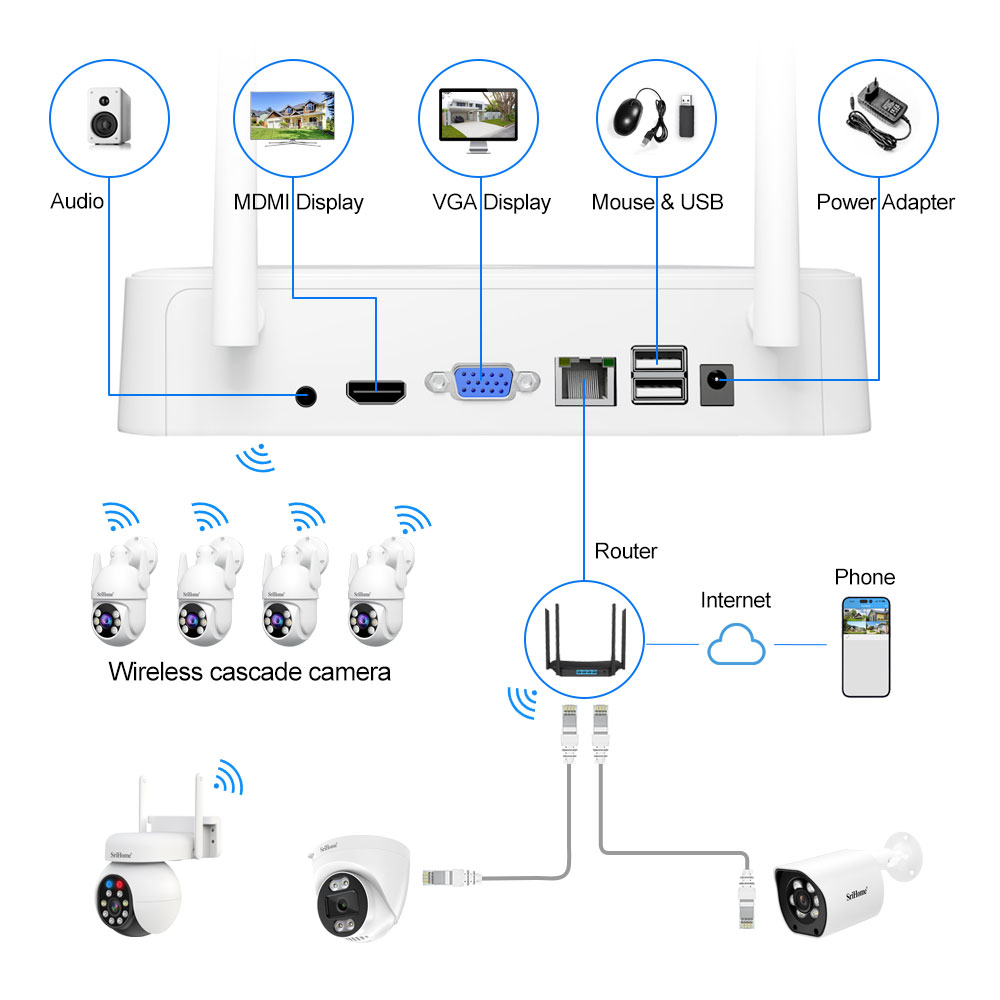

WiFi：2.4 G, for Srihome standard camera connection only

WAN：RJ45 Wired Connection

Network service：Support DHCP, DNS, DDNS, NTP, UPNP, etc

Alarm mode：Motion detection alarm, humanoid detection alarm

Alarm reminding：APP push, alarm whistle

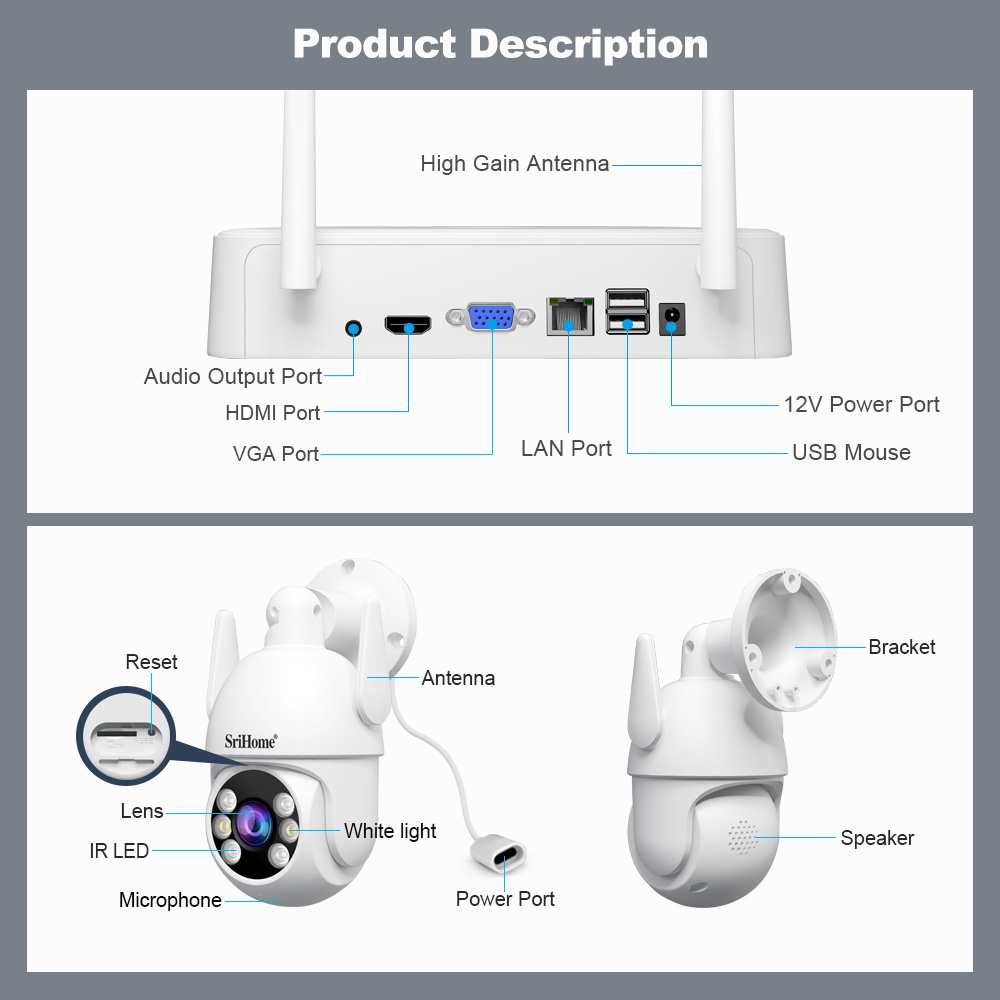

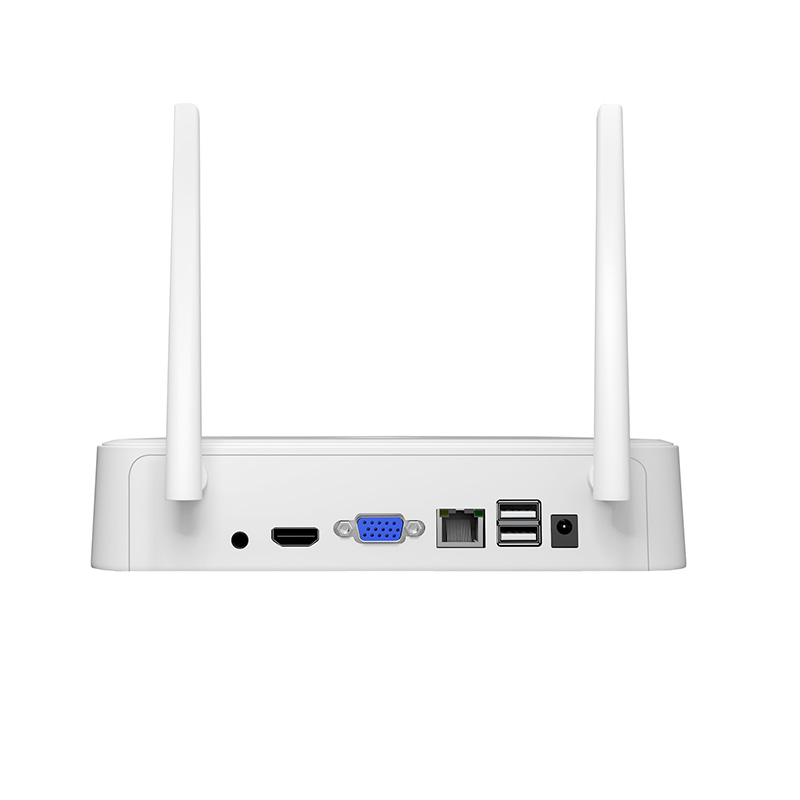

Network interface：RJ45 network interface

USB interface：2 USB2.0

HDMI interface：1

VGA interface：1

Audio interface：1 AUX audio output interface

Power interface：1 DC 12V 2A (5.5*2.1*10)

Main processor: Multi-core high-speed processor

Sensor: 1/2.7”, 2MP HD color CMOS sensor

Compression format: H.264

Lens parameter: Focal length: 4mm

Visible angle: Angle of view: D:  98° H: 80° V: 58°

Resolution: 1080P(1920x1080), VGA(640x360)

Frame rate: 15 FPS

IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors

Audio: Built-in Mic and speaker, Support two-way audio

Agreement: G711

Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on and switches to full color night vision

White light mode: Turn on for full-color night vision, with adjustable brightness and customizable turn-on time via APP. Default time: 5:00PM~8:00AM

Infrared mode: Turn off the white light and switch to normal night vision

Tracing: Humanoid tracking is supported

Angle of rotation: Horizontal: 355°, vertical: 90°

Alarm: Motion detection alarm, humanoid alarm

Siren: Alarm whistle can be set

Custom alarm area: Support custom motion detection alarm area to improve alarm accuracy

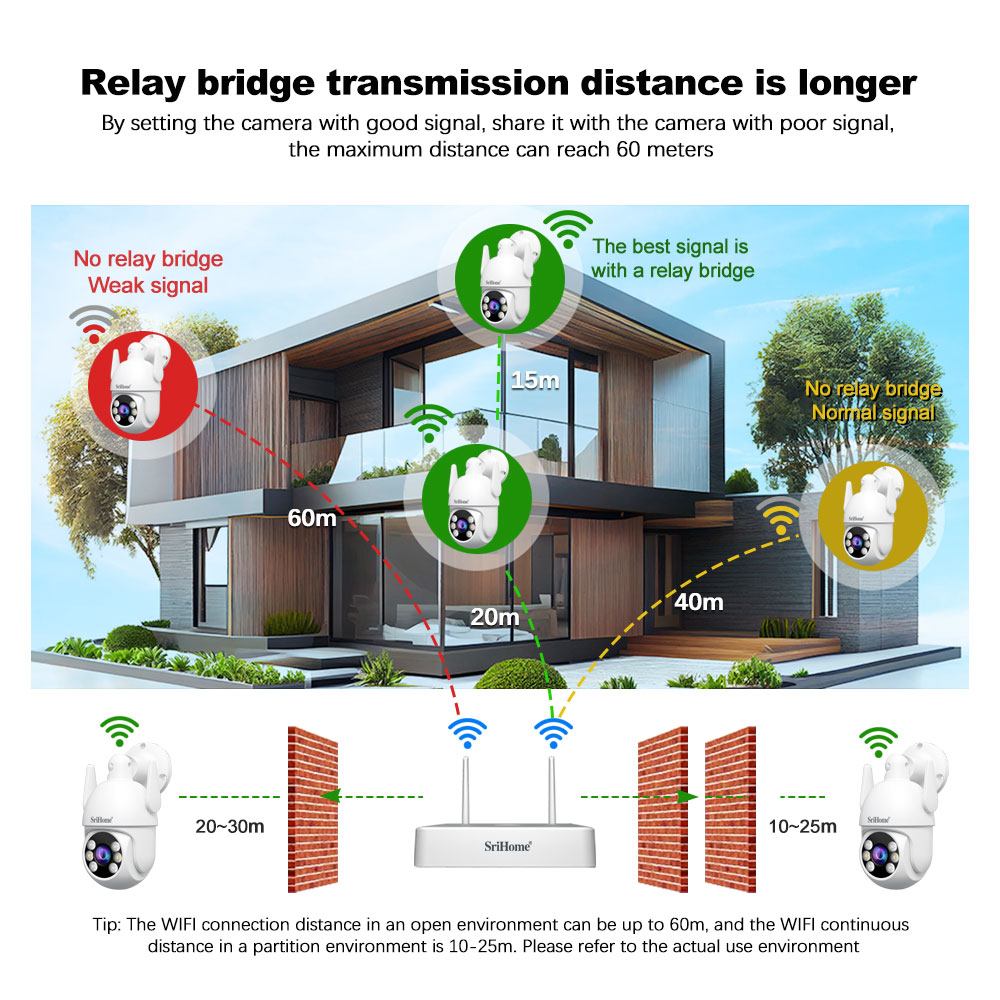

Wireless: 2.4 G (Connect to SriHome WiFi NVR Only)

Pairing Mode: QR code pairing, Reset button pairing

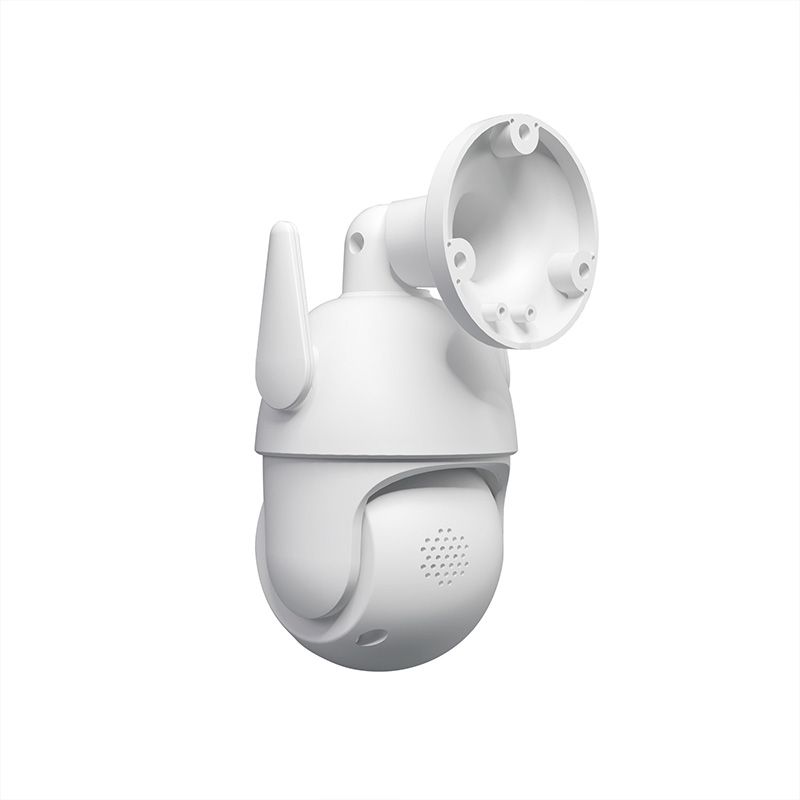

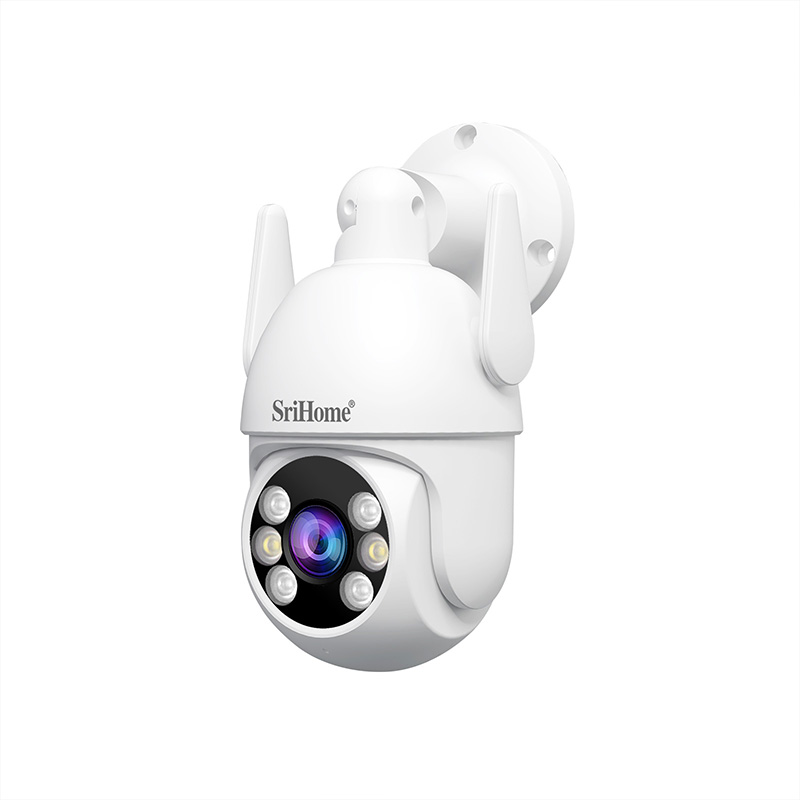

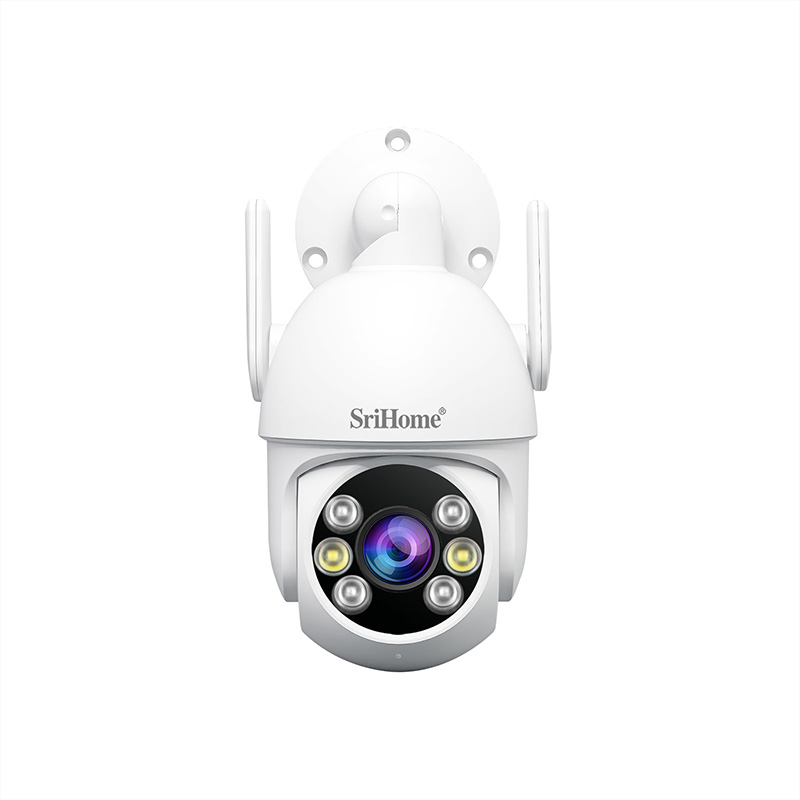

Product type: Plastic PTZ camera, suitable for indoor and outdoor

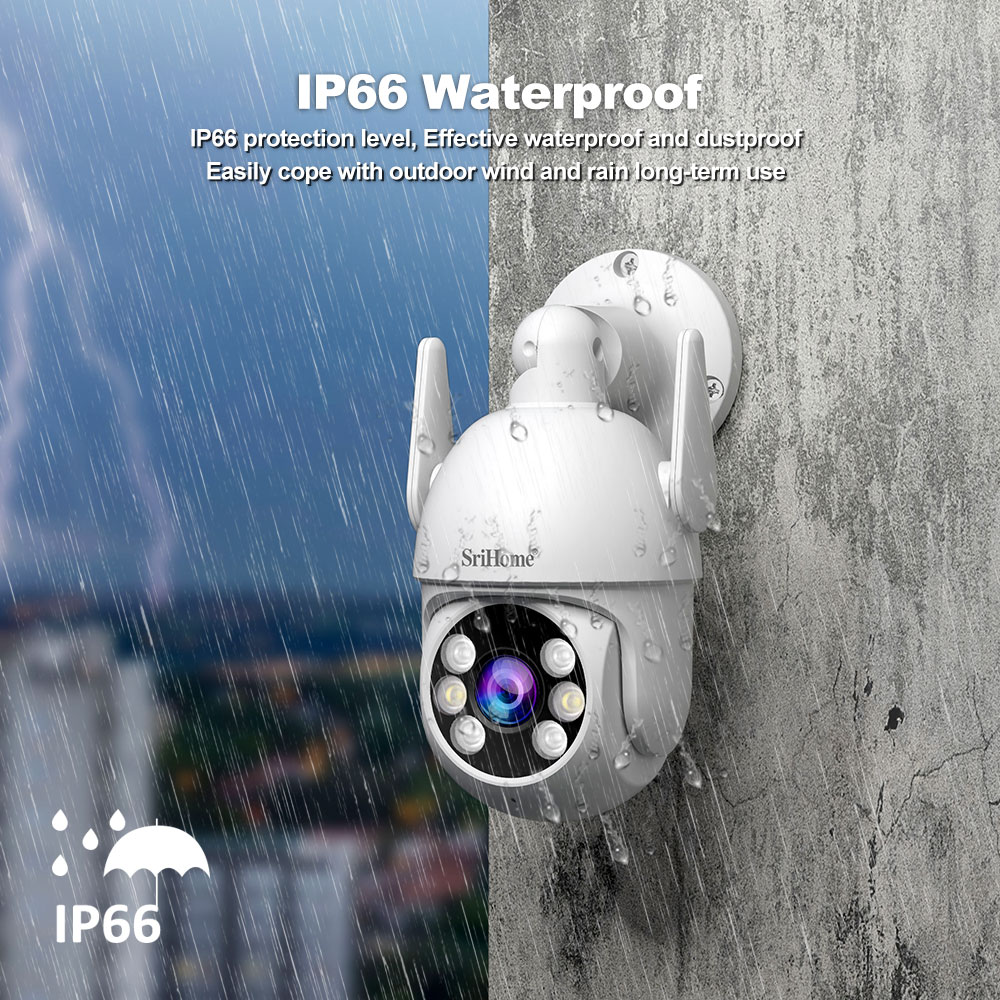

Waterproof degree: IP66

Power adapter: Input AC: 100 ~ 240V, output DC: 5V  Type-c

Working temperature: -10 ° C ~ 50 ° C

Weight: Net weight 220g (based on actual weight)

Body size: 160x80x80mm (length x width x height)

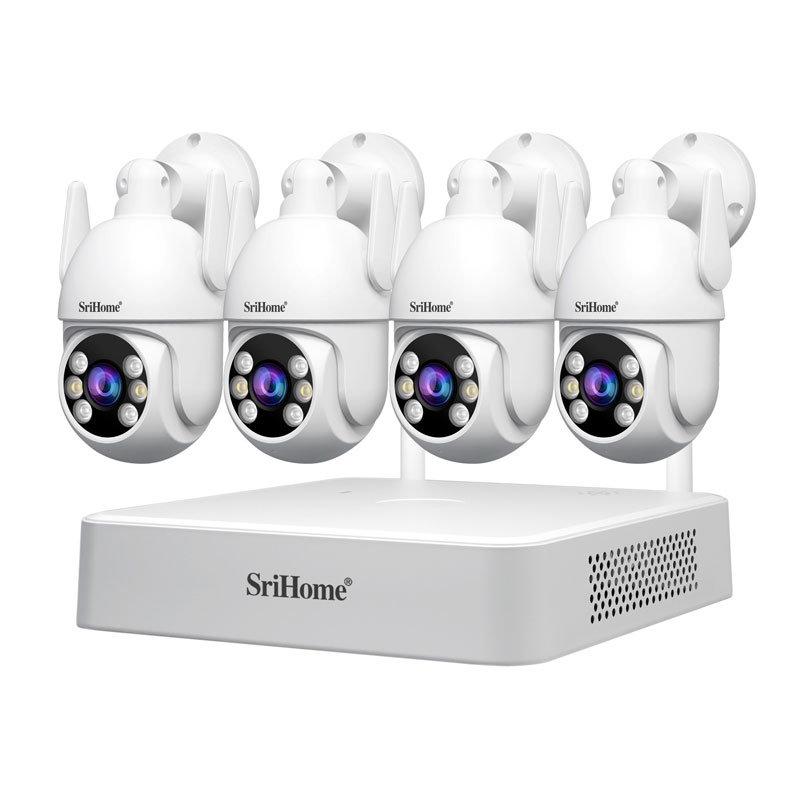

Wireless Kit Accessories List

Model: NVS011-IPC059

NVR: 1* NVS011 NVR Host

Camera: 4* IPC059(optional 8 wireless cameras)

Power adapter: 1* 12V2A power supply (NVR), 4* 5V power supplies (camera)

Screw bag: 5* packs

Instructions: 1* User Manual

Network cable: 1* root

Package weight: 2.5 kg, subject to actual weight

Color box: 32x24x17cm (L x W x H)

Carton size: 53.5x34x49.5cm (6 sets/box) 16KG
