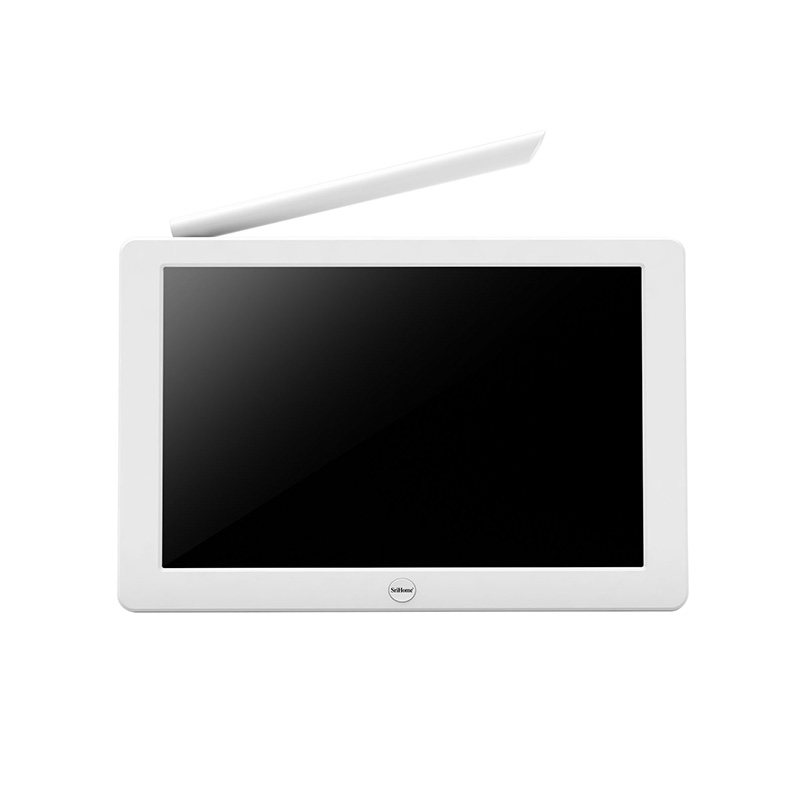

NVR host | |
Video |
Video Input:8 Video Resolution:1080P(1920x1080)VGA(640x360) Video Output:1ch HDMI(1080P), 1ch VGA(7200P) Compression Format:H265/H264/Smart264 Coding Capacity:8*2M/25fps Decoding Capacity:1*2M/25fps(Main stream);8*D1/25fps(Sup stream) Compression Format:H265; H.264 |
Audio |
Audio:Two-way audio Audio Output:HDMI; 1*AUX Audio Output; built-in speaker Audio Decoding Format:G.711U; AAC |
HDD |
Internal HDD:1 SATA Port(Only supports 2.5-inch hard drive) Capacity:Up to 16TB |
Recording /Playback |
Recording:Manual Recording, Timed Recording, Event Recording, Alarm Recording (Motion Detection, Humanoid Detection) Playback:Instant Playback, Regular Playback, Event Playback, Tag Playback, External File Playback, Log Playback Backup Modes:Regular Backup, Event Backup, Wideo Backup |
Network |

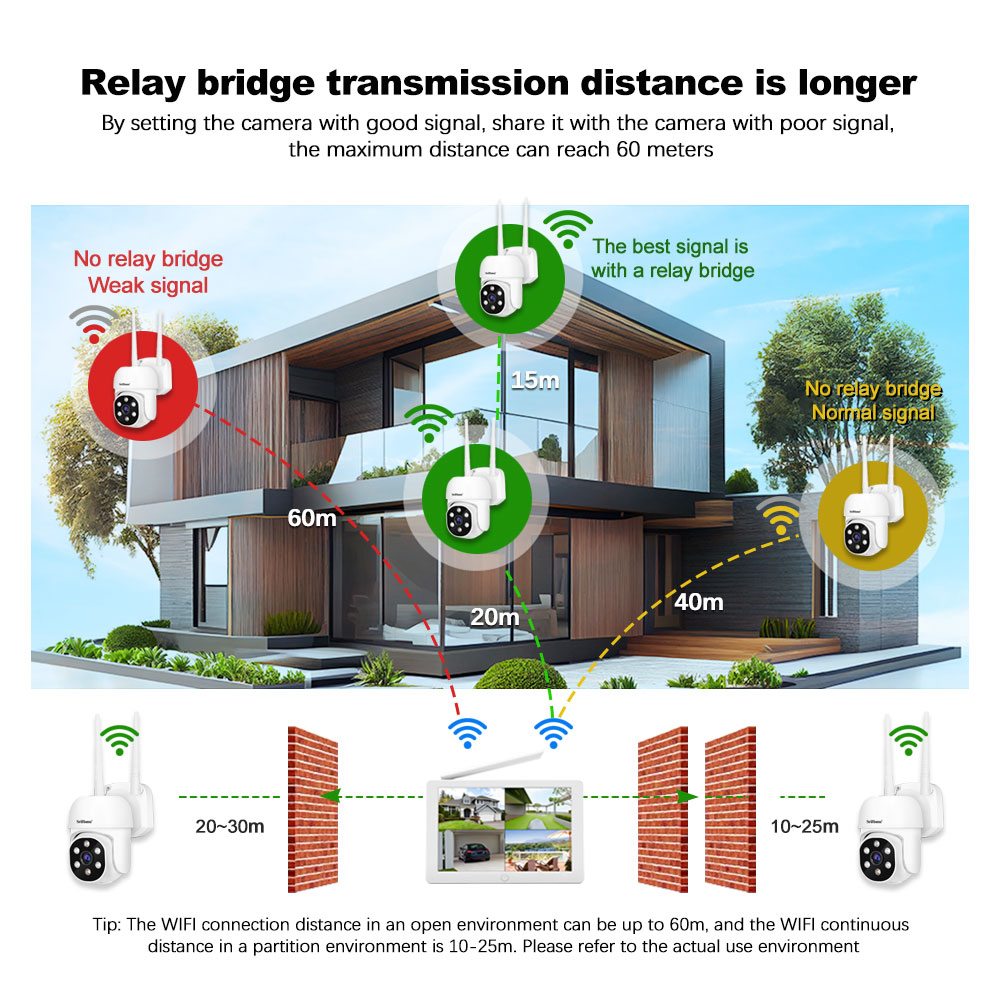

WiFi:2.4G WiFi, Connected SriHome standard configuration cameras only WAN:RJ45 Connection,Support to remotely watch 4 channels of monitoring screen at the same time by APP Network Service:Support DHCP、PPPOE、FTP、DNS、DDNS、NTP、UPNP、Email etc. |
Alarm |
Alarm Mode:Motion Detection Alarm, Video Loss Alarm, Video Occlusion Alarm Alarm Reminder:Screen Tips, APP Push |

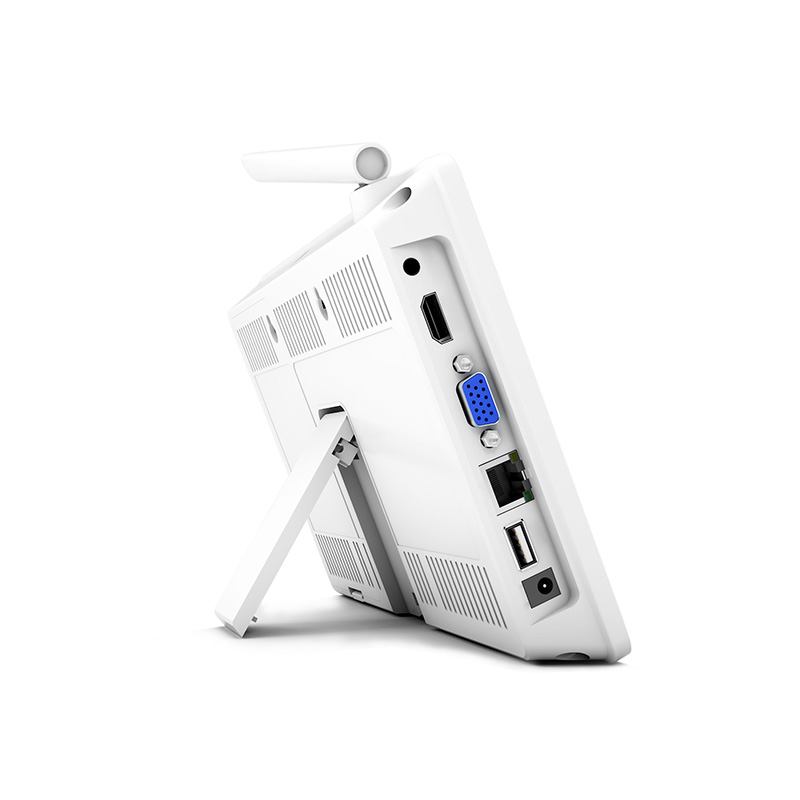

External interface |
Network Interface:1*RJ45 Network interface USB Interface:1*USB2.0 HDMI Interface:1 VGA Interface:1 Audio Interface:1*AUX audio output port Power Interface:1个 DC 12V 2A (5.5*2.1*10 ) |
Others |
Working Temperature:-10°C ~50°C Working Humidity:10%~90% RH Bodty size:258*169*32mm(LxWxH) Packaging size:346*206*57mm (LxWxH) Weight:N.W: 511g G.W: 837g(Note: Final Weight will depend on the actual product) |
APP | SriHome APP, IOS & Android Smartphone |
