Operating system：embedded linux

Chip：MC6630

Language：Japanese, French, Russian, Portuguese, Italian, Spanish, German, Polish, English, Simplified Chinese, Traditional Chinese

Video Input：4 Channel

Video Resolution：Support 1280*720，1920*1080，1280*1440，1280*1920

Video Output：1ch HDMI(1080P), 1ch VGA(1080P)

Compression Format：H265+/H264

BNC output：Not support

Input channel：4ch

Coaxial bidirectional：Support two-way

Decoding format：Support G.711/ADPCM

HDMI interface:  Support HDMI audio output

Coaxial audio：4 Channel

Internal HDD：1 SATA Port(Not support e-sata)

Capacity：Maximum support 16TB

Recording：Manual Recording, Timed Recording, Motion Detection

Playback：Support 4CH simultaneous playback

Backup：Support USB mobile hard disk, U disk

Lan port：10/100 Mbps Ethernet (RJ-45)

Network protocol：TCP/IP,HDCP,DDNS,NTP,UDP,SMTP

Alarm Mode：Motion detection alarm, human detection alarm

Alarm Reminder：Humanoid mark, screen prompt, APP push

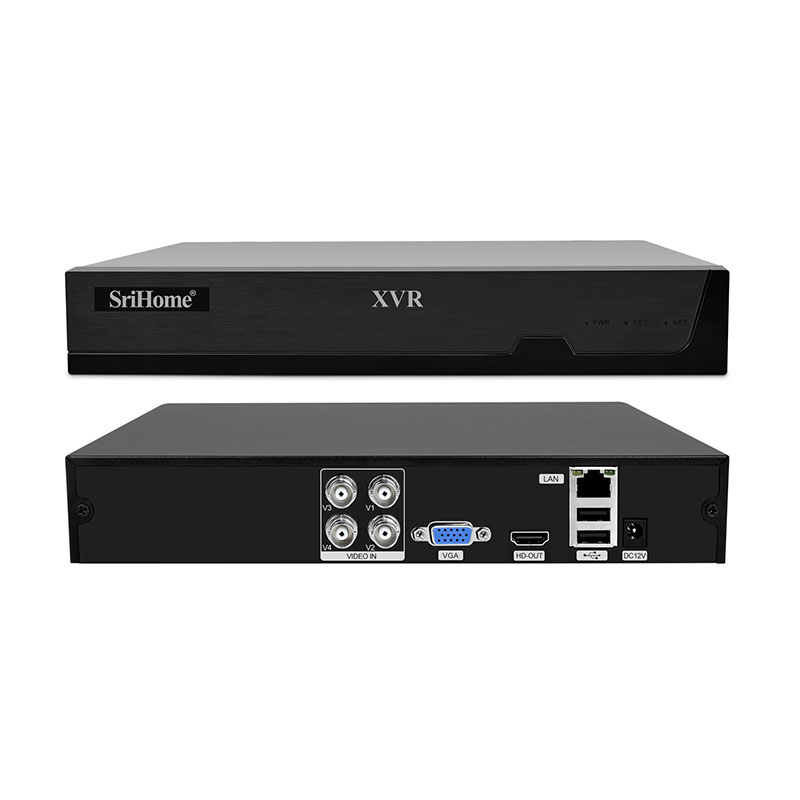

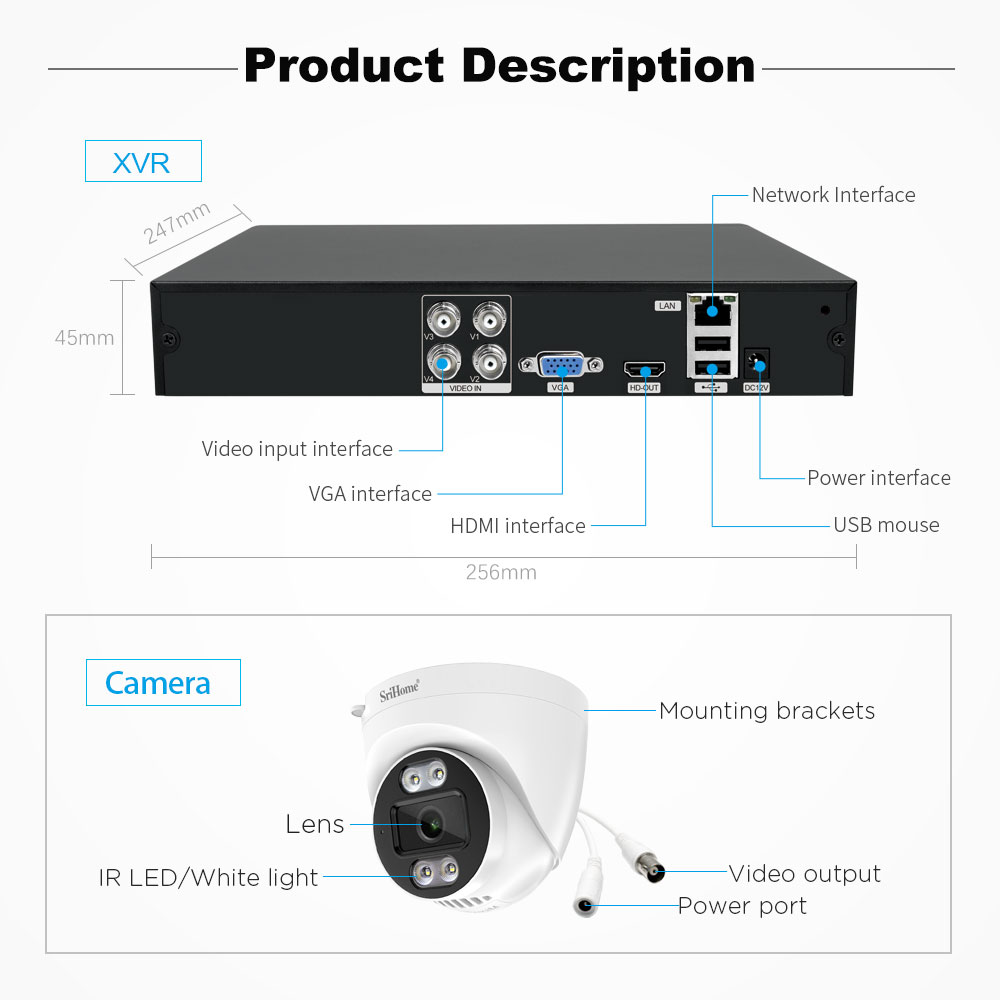

Lan Interface：1* RJ45

USB  Interface：2* USB2.0

HDM Interface：1

VGA Interface：1

Power Interface：1个 DC 12V 2~3A (5.5*2.1*10 )

Working Temperature：-10°C ~50°C

Working Humidity：10%~90% RH

Main Processor: ARM11

sensor: 1/4.5 inch，2Megapixel progressive scan CMOS (OV2732）

Signal output: Support AHD 1080p25 / cvi 1080p30

Lens Parameter: Focal length: 4mm, 2MP lens

Angle of View: Pan:73°,  Tilt: 53.6°,  Diagonal: 95.2°

Output: Support AHD 1080P@25fps / cvi 1080P@30fps

Automatic exposure：Automatic exposure and white balance

Night vision: High-power infrared light, high-definition night vision

Min.Illuminatioin: 0.01 Lux / F2.0

IR-Cut: Built-in IR Cut, no color deviation indoor or outdoor, highly sensitive night vision

Electronic amplification: Three times electronic amplification

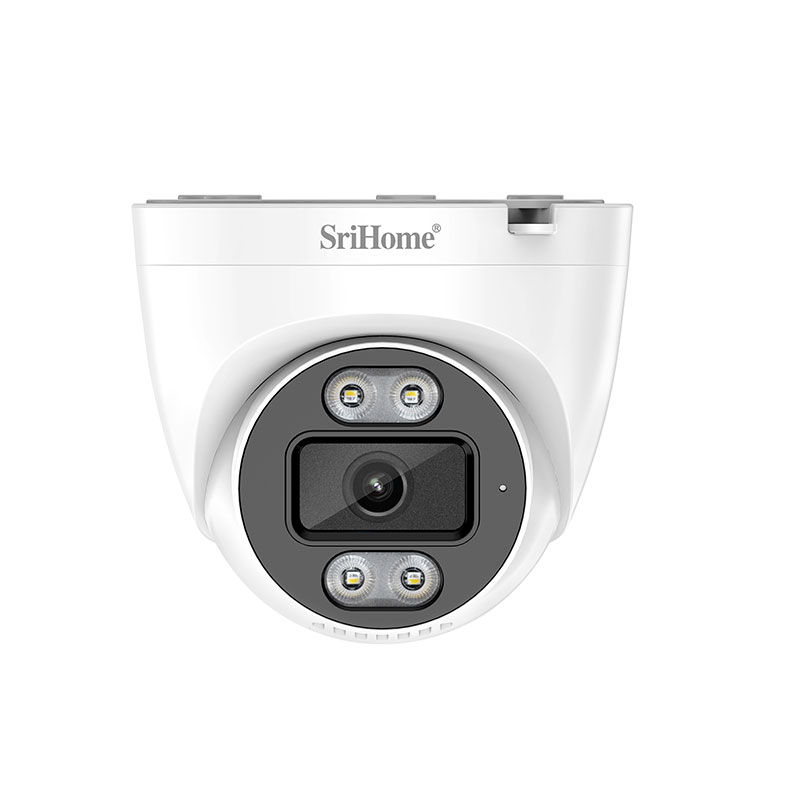

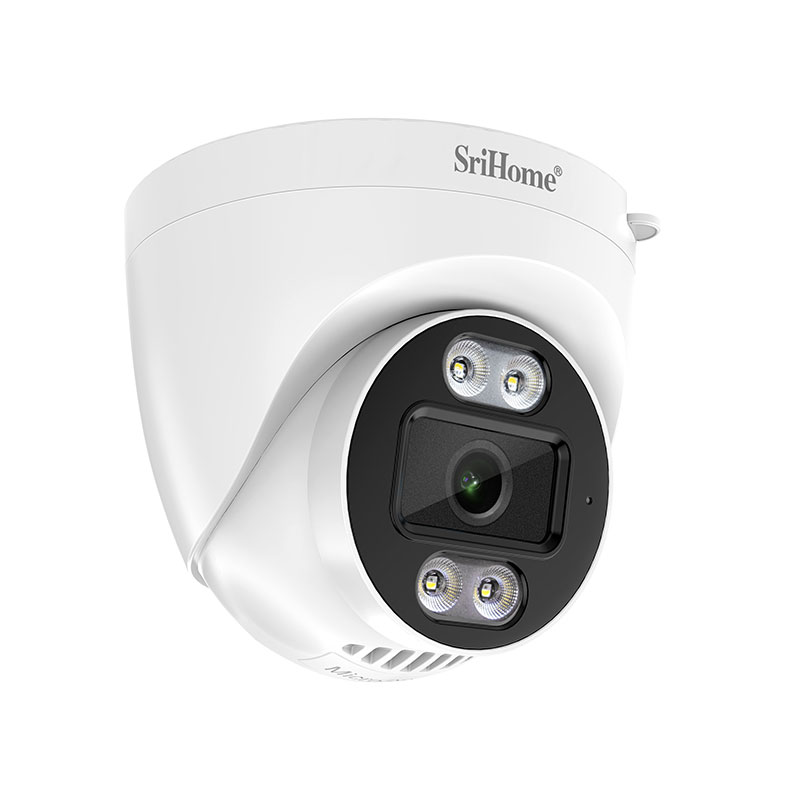

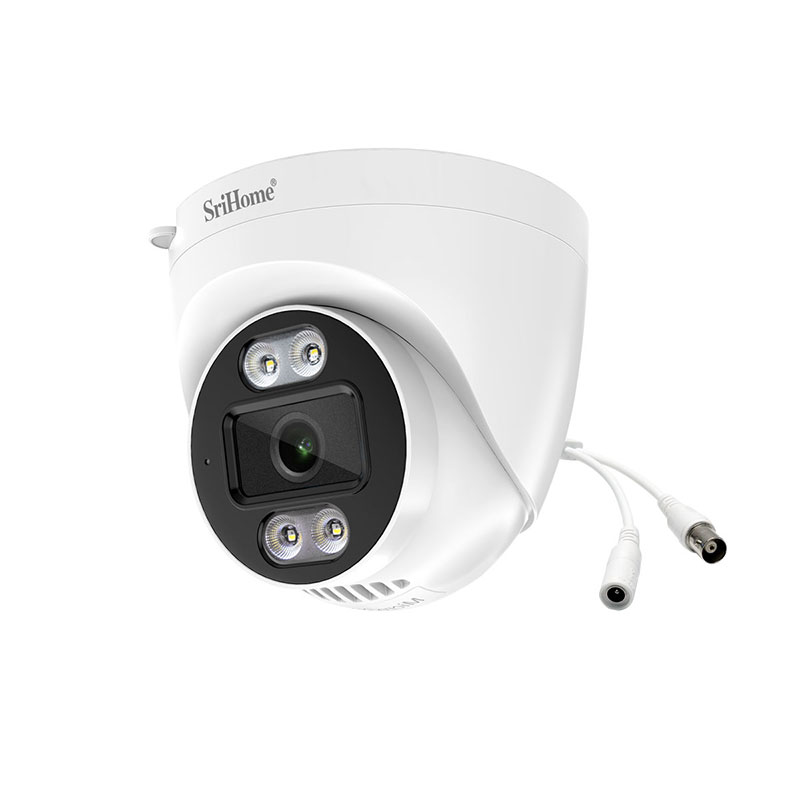

Product Type: Half-metal bullet camera，for indoor

Waterproof Degree: Not waterproof

Power Supply: Input AC：100~240V，12V/500mA

Working Temperature:  -10°C ~50°C

Working Humidity:  10%~90% RH

Weight: 280g

Size: Item size：118*118*100 mm (length x width x height)

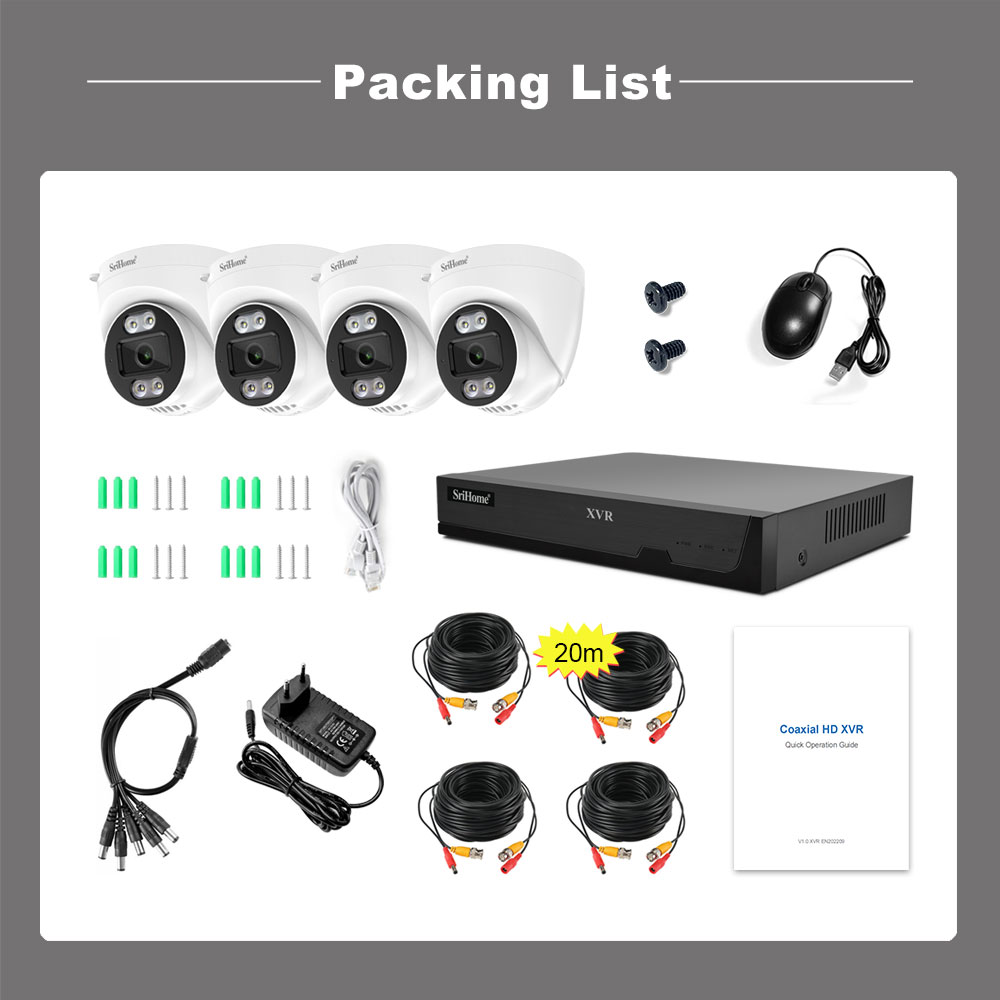

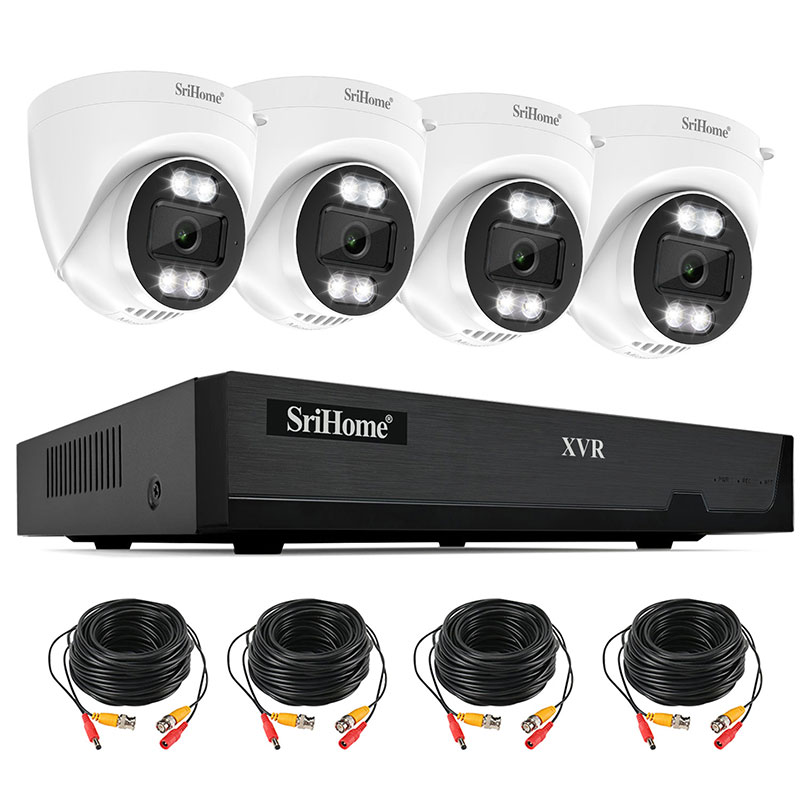

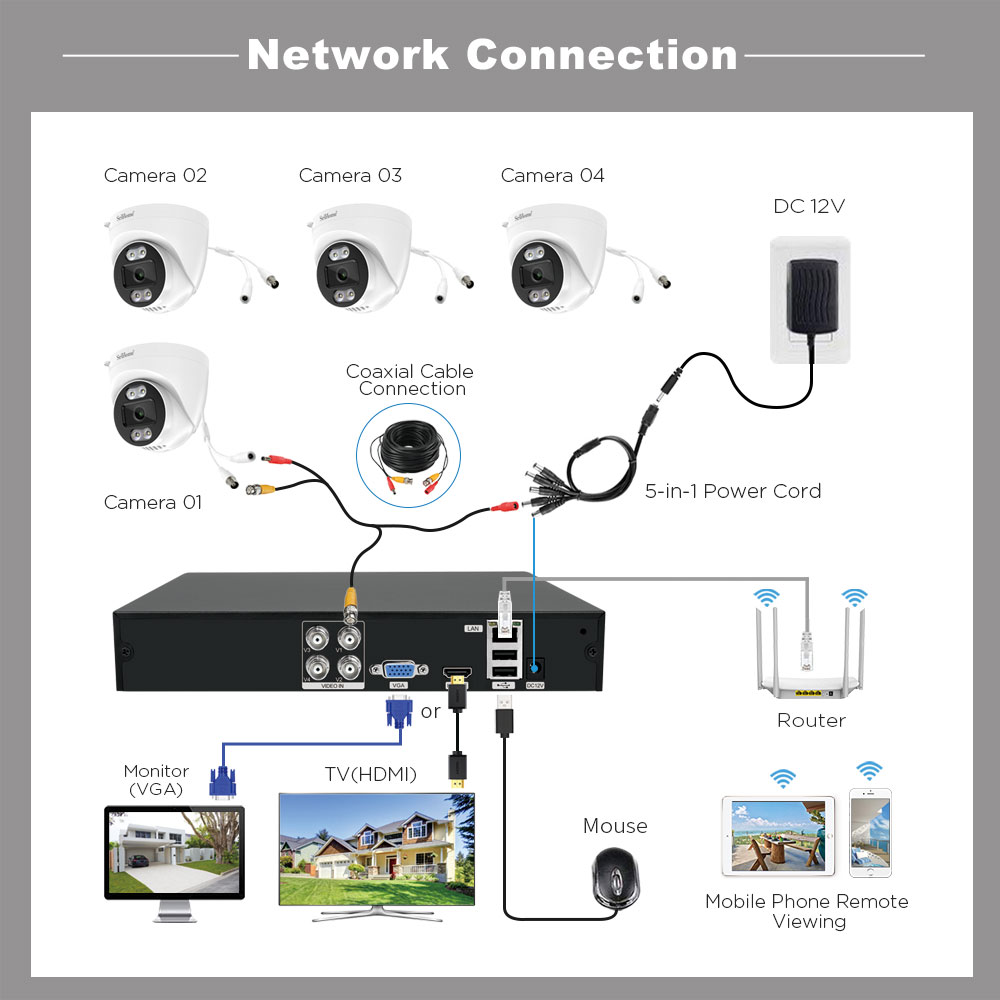

Camera: 4 *Analog cameras

Power Adapter: 12V/500mA

Screw pack: 5

User manual: 1

Network cable: 1

Coaxial Cable：4*20M

Kit weight：4kg， subject to actual weight

kit size：28.2. x 22.6. x 25.7cm (length x width x height）

CE， FCC， RoHS       1-Year Warranty
