Video Input: 16CH -5MP

Output Interface: 1 HDMI, 1 VGA

Compression format: H265/H264/Smart264

Coding: 16*5M/25fps

Decoding: 1*5M/25fps (main stream); 16*D1/25fps (auxiliary stream)

Decoding format: H.264/H265

Audio: Support two-way audio, built-in microphone

Audio output: HDMI and 1-channel AUX audio output, built-in pickup

Decoding format: G.711U; AAC

Hard disk interface: 1 SATA interface, SSD&HDD

Hard drive capacity: Maximum support 16TB

Video recording: All-day recording, scheduled recording, alarm recording

Playback Mode: Regular playback and APP playback

Backup Mode: Regular backup (USB backup and hard disk backup)

WAN: RJ45 wired connection

Network service: Support DHCP, DNS, DDNS, NTP, UPNP, etc.

Alarm mode: Motion detection alarm, human detection alarm

Alarm reminder: APP push

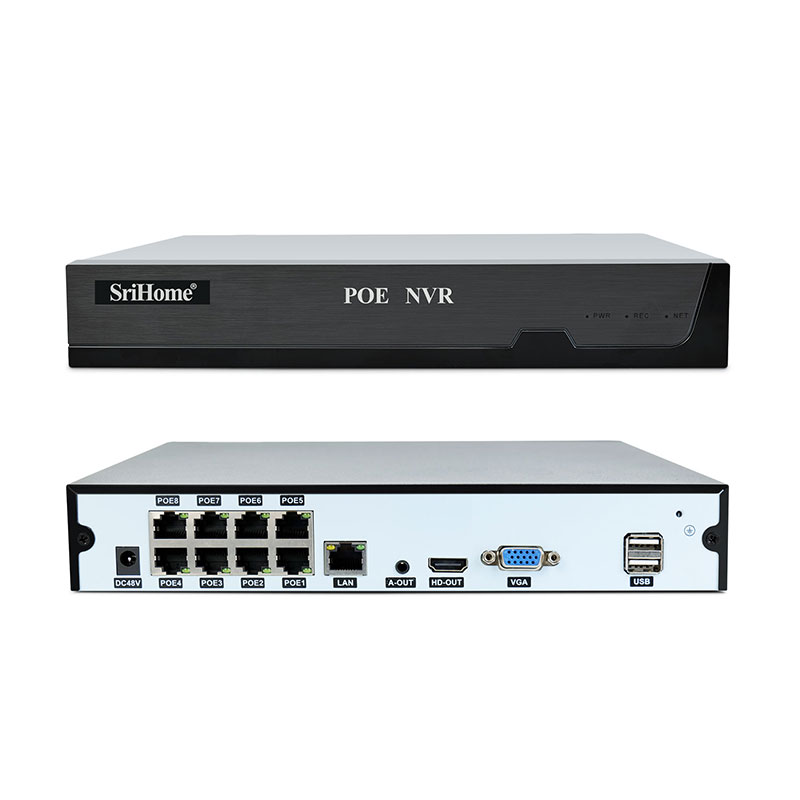

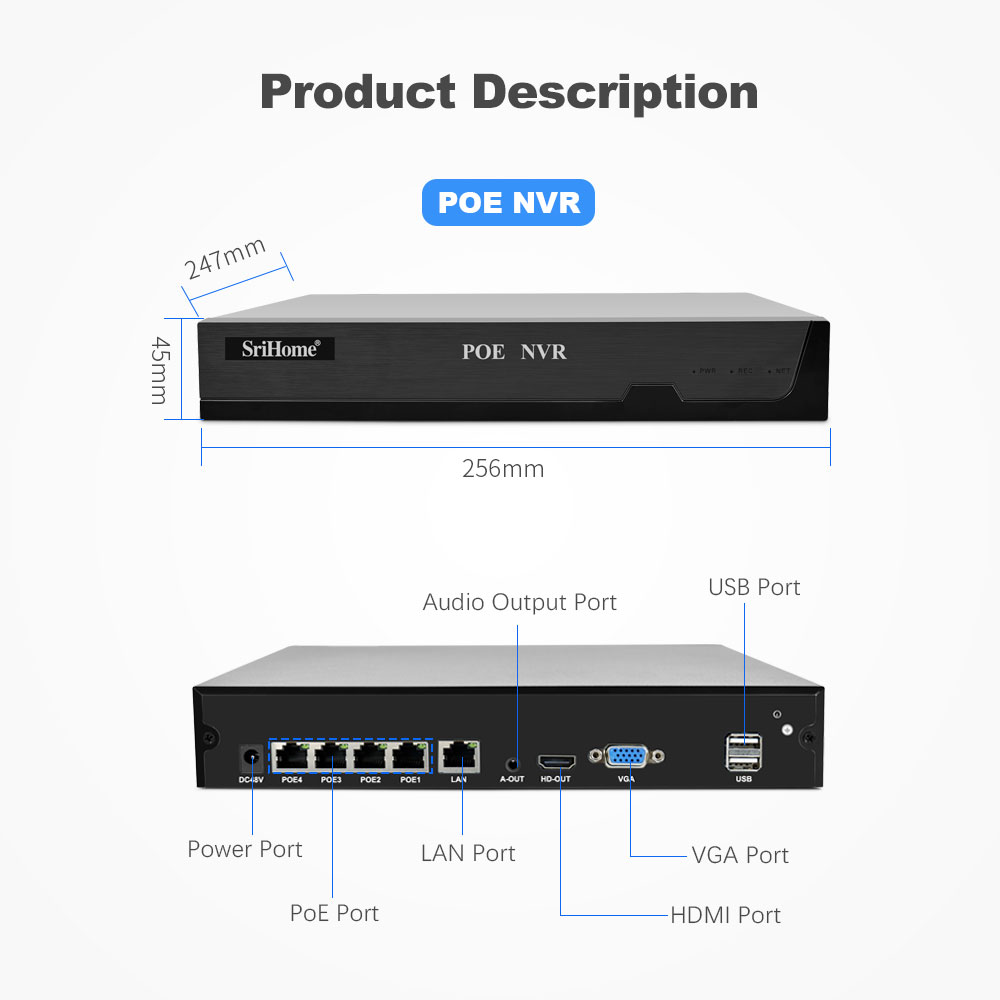

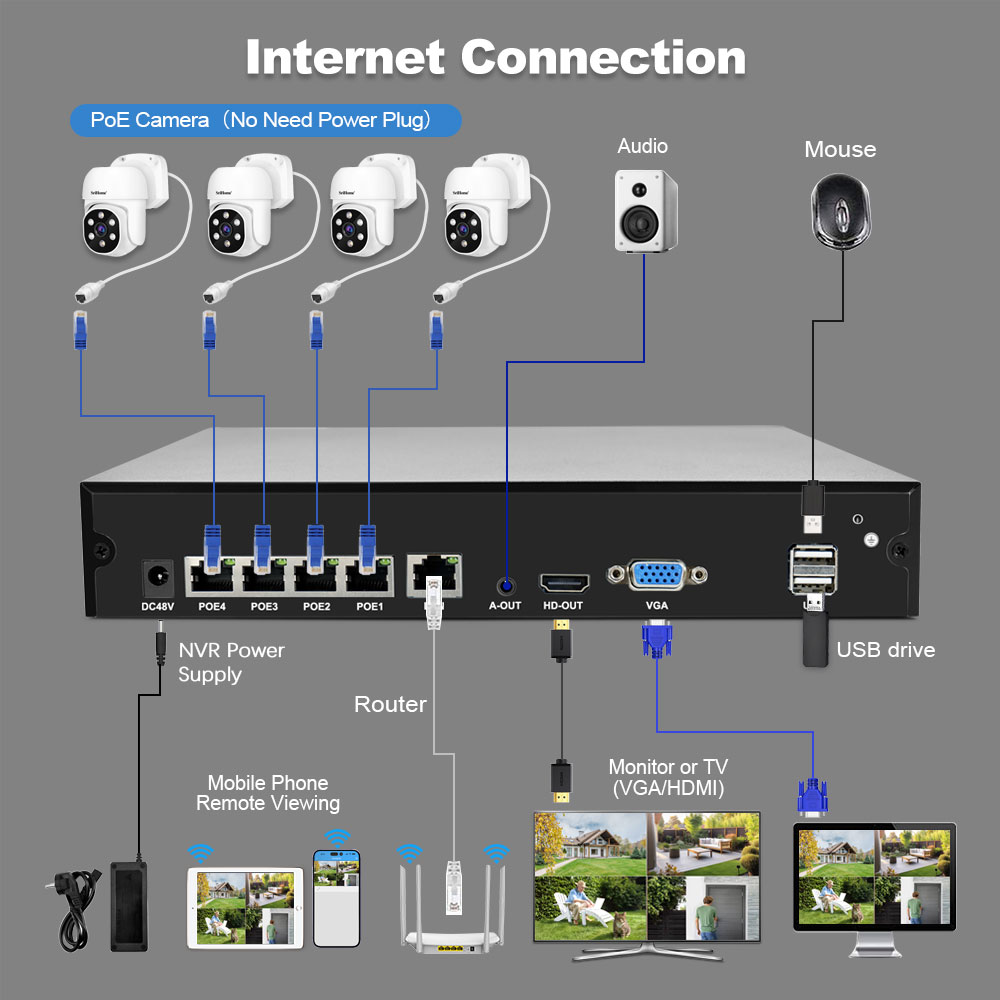

Network Interface: 1*1000M uplink RJ45 port, 4/8*100Base-T RJ45 ports, support PoE+ power supply

USB interface: 2*USB2.0

HDMI interface: 1

VGA interface: 1

Audio interface: 1*AUX audio output interface

Power interface: 1*DC 52V/48V 2.3A

Main processor: Multi-core high-speed processor

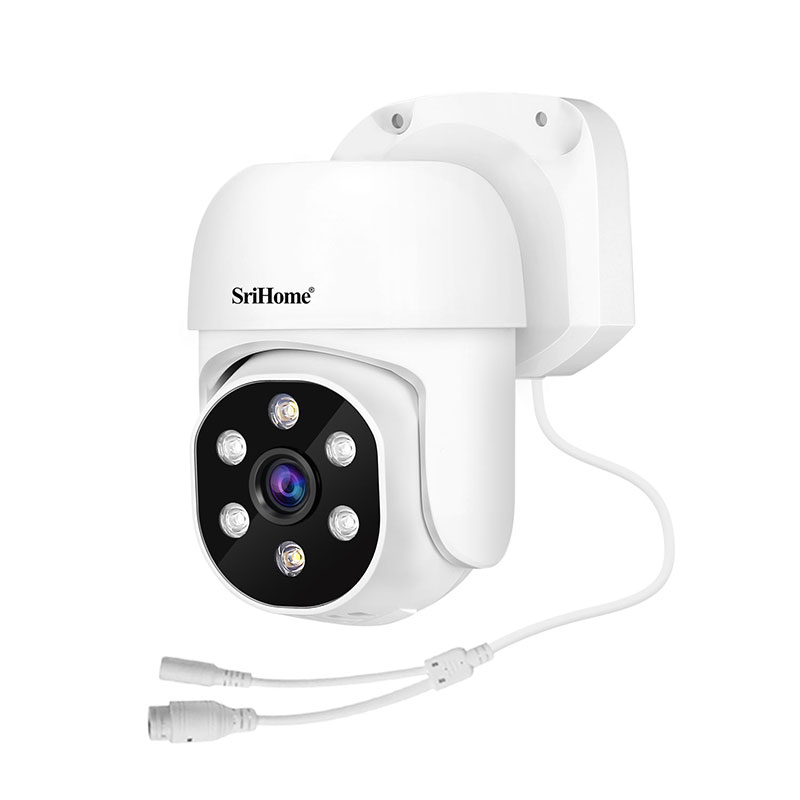

Sensor: 1/3 inch, 3MP HD color CMOS sensor

Compression format: H.265

Lens parameters: Focal length: 4mm,3 megapixels

Viewing angle: Horizontal: 80°, Vertical: 58°, Diagonal: 98°

Resolution: 3MP(2304*1296P), VGA (640x360)

Frame rate: 15 frames

IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision

Audio1: Built-in speaker, can speak to the IPC through the NVR host or mobile APP

Audio2: Built-in microphone, can picks up sound and transmits it to NVR host and mobile phone APP

Protocol: G711

Alarm mode: The default is black and white night vision. When an alarm is detected, the white light is turned on.

White light mode: Turn on, full color night vision, support custom working time and adjustable brightness (default is 88)

Infrared mode: White light is turned off and switched to normal night vision (black and white night vision)

Track: Support human tracking, support preset positions (1 to 15)

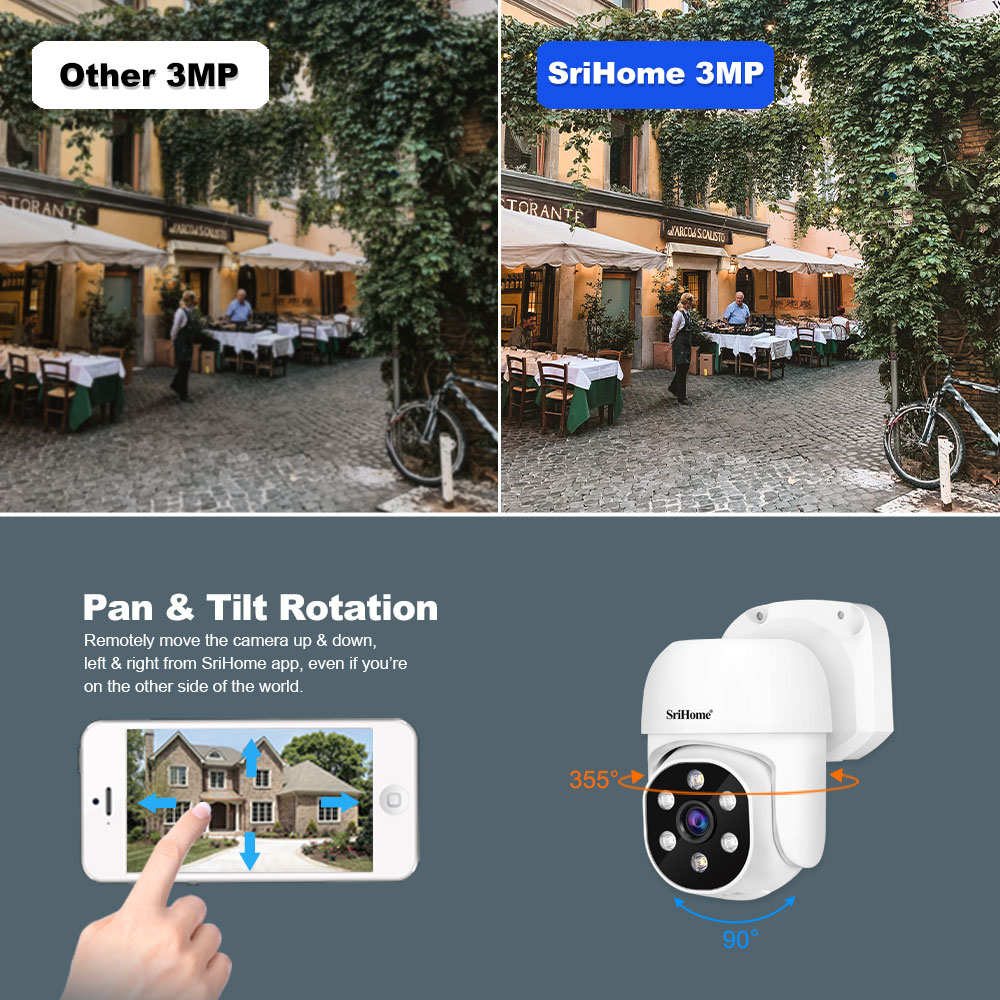

Rotation angle: Horizontal: 350°, Vertical: 90°

Alarm: Motion detection alarm, human presence alarm

Siren: Support alarm siren

Area Detection: Supports custom motion detection alarm areas to improve alarm accuracy

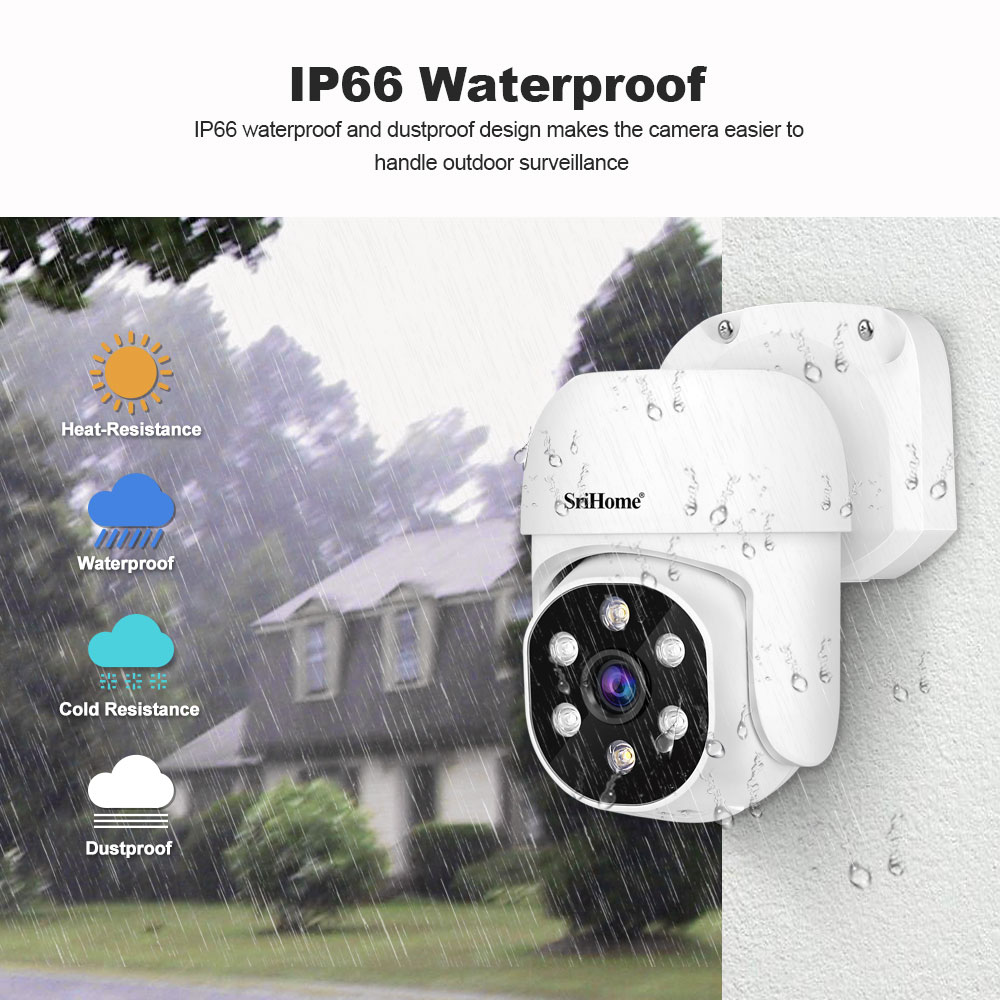

Product type: Plastic ball machine, suitable for indoor and outdoor

Operating temperature:  -10°C ~50°C

Weight: Net weight 268g (based on actual weight)

Dimensions: 140*120*87 mm (length x width x height)

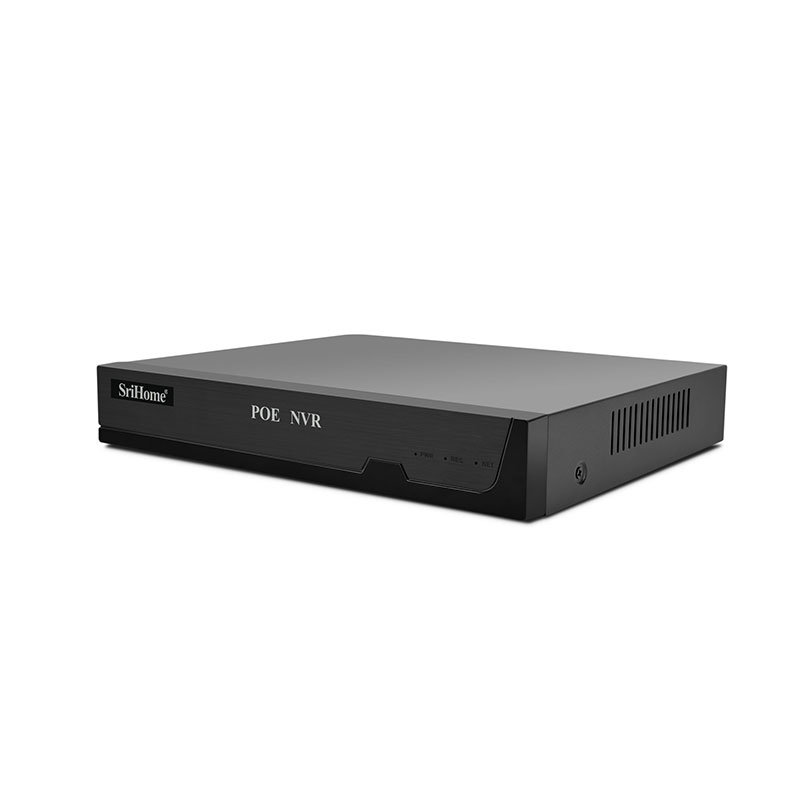

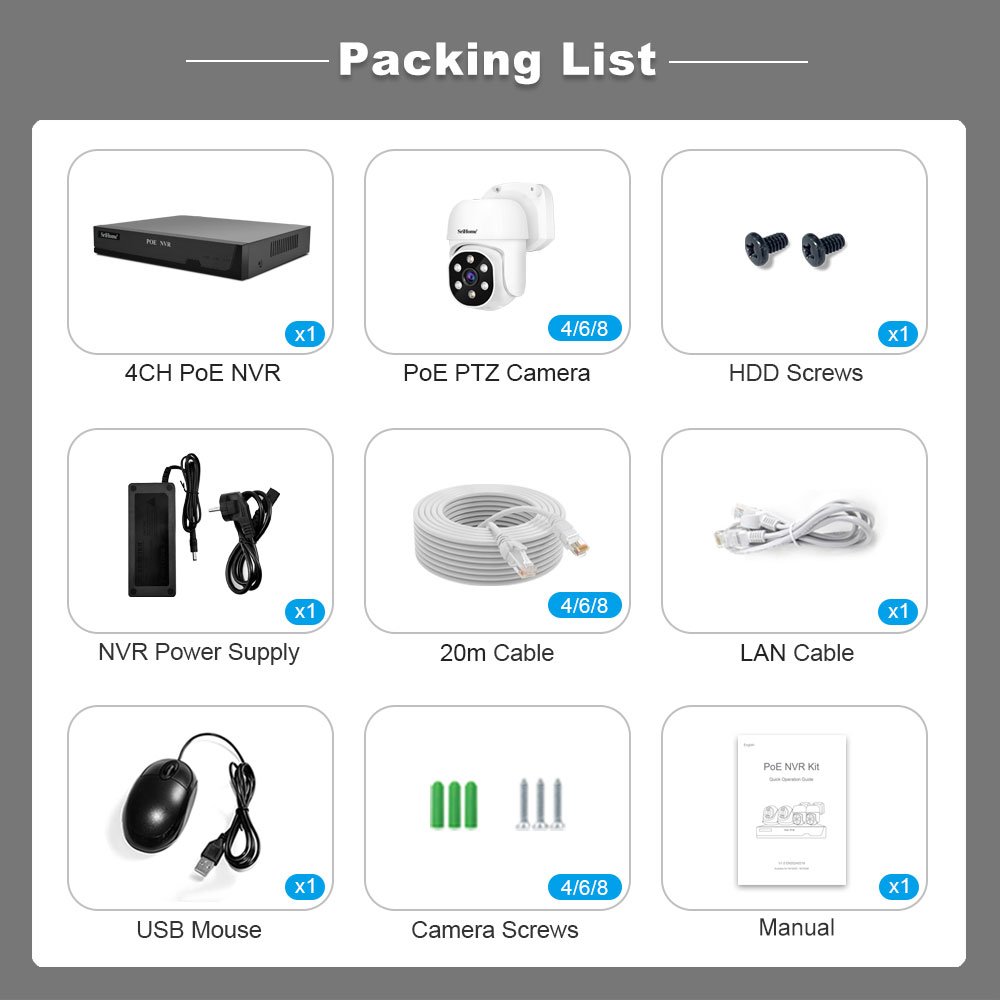

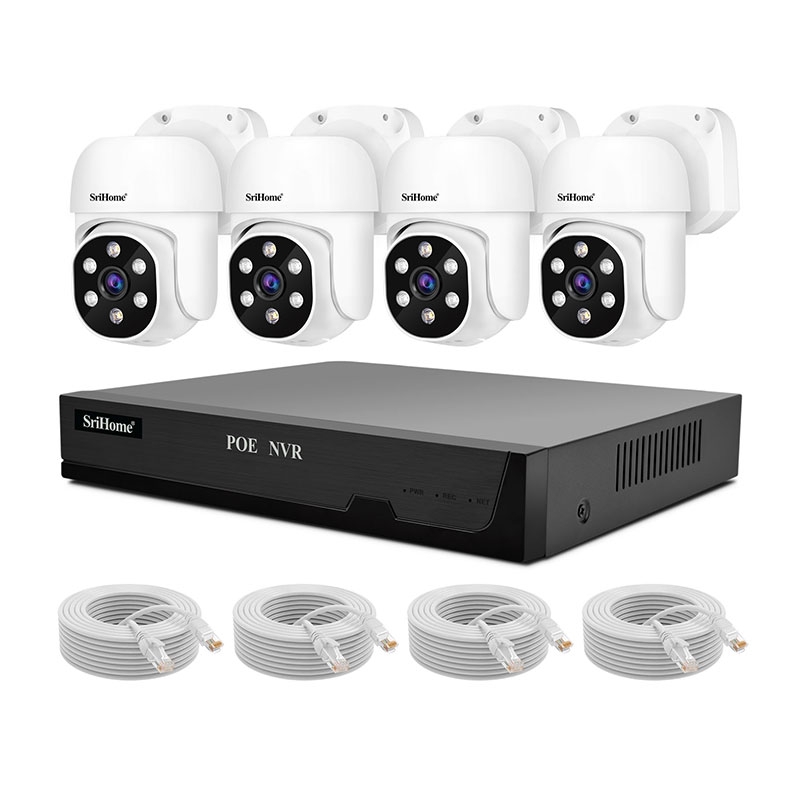

NVR: 1 NVS005 host

Camera: 4 pcs POE030B cameras

Power Adapter: 1 x 52V/2.3A power supply (NVR)

Screw Pack: 5 packs

Manual: 1

Net Cable: 1* 0.5m network cable, 4* 20m network cables

Kit weight: 4.8kg, subject to actual weight

Color box size: 34x23x26cm (length x width x height)

Carton size: 53.5x34x50cm (length x width x height) (4 sets/box) 20KG
