System

Main Processor: Multi-core High- performance processor

Sensor: 1/2.7”, 4Megapixel progressive scan CMOS

Image Compression: H.265

Lens

Lens Parameter: Focal length: 4mm, 5MP , Starlight Lens

Angle of View: Horizontal: 80°,  Vertical: 58°,  Diagonal: 110°

Video

Resolution: 5MP(2560*1920) , VGA(640x360)

Image Frame Rate: 15fps - 25fps

Automatic Exposure: Adjust the image automatically to view clearly

Infrared Mode: Automatic

Night Visibility: Night Vision IR 10 meters

Min.Illuminatioin: 0.01 Lux / F1.2

Filter Switch(IR-Cut): Built-in IR Cut, no color deviation indoor or outdoor

Zoom: App supports 3x digital zoom

Audio

Protocol: G711

Audio: Built-in Mic & Speaker, supports two-way audio

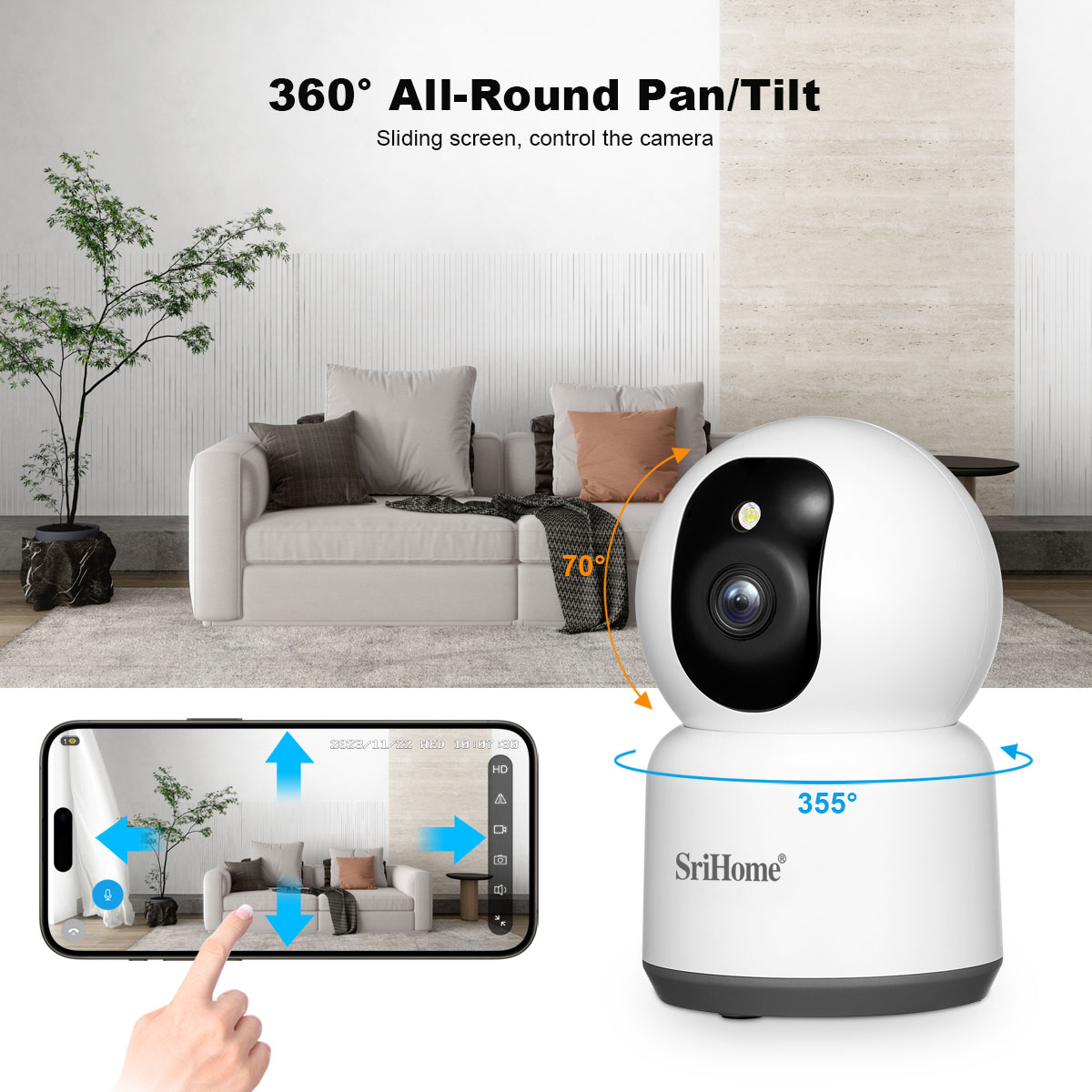

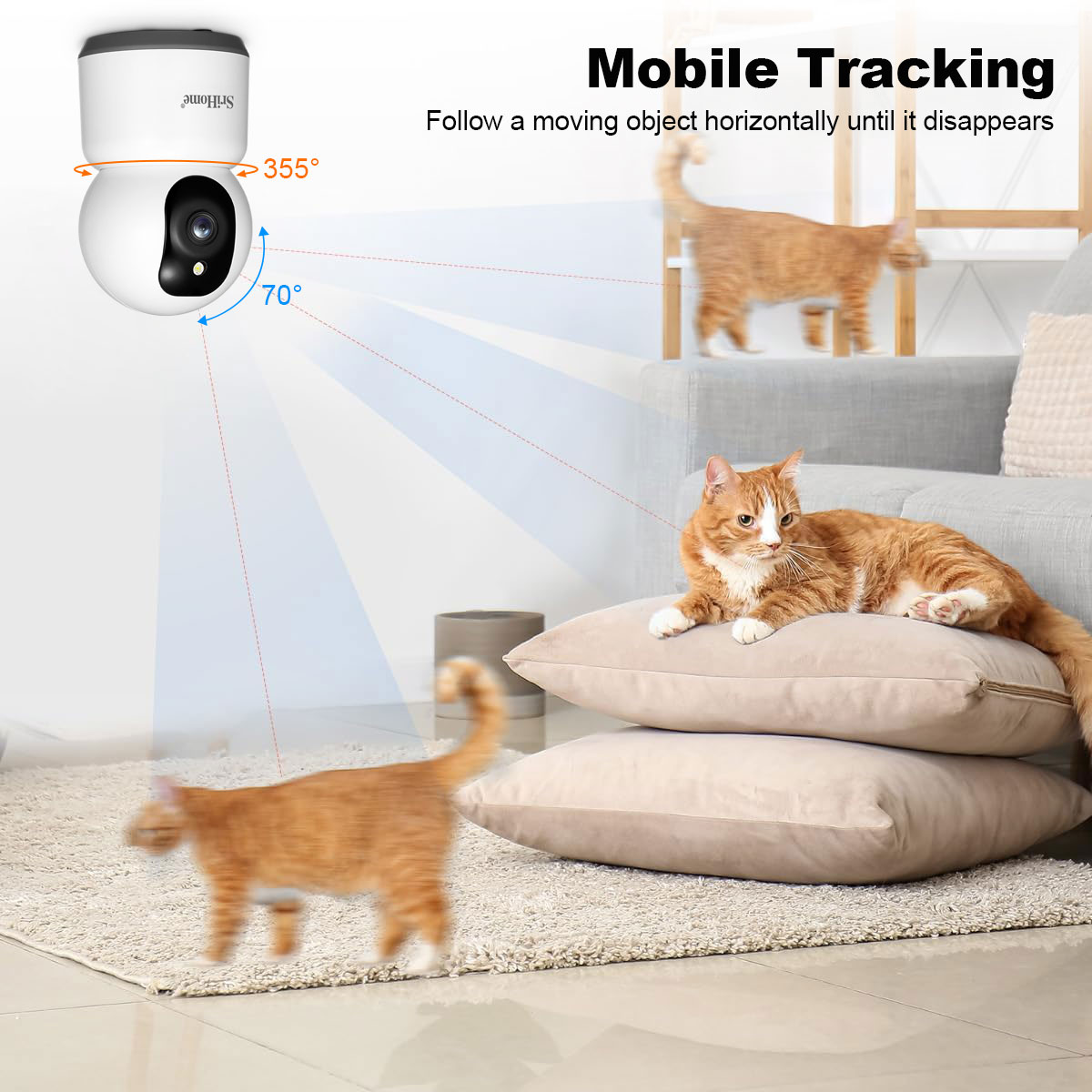

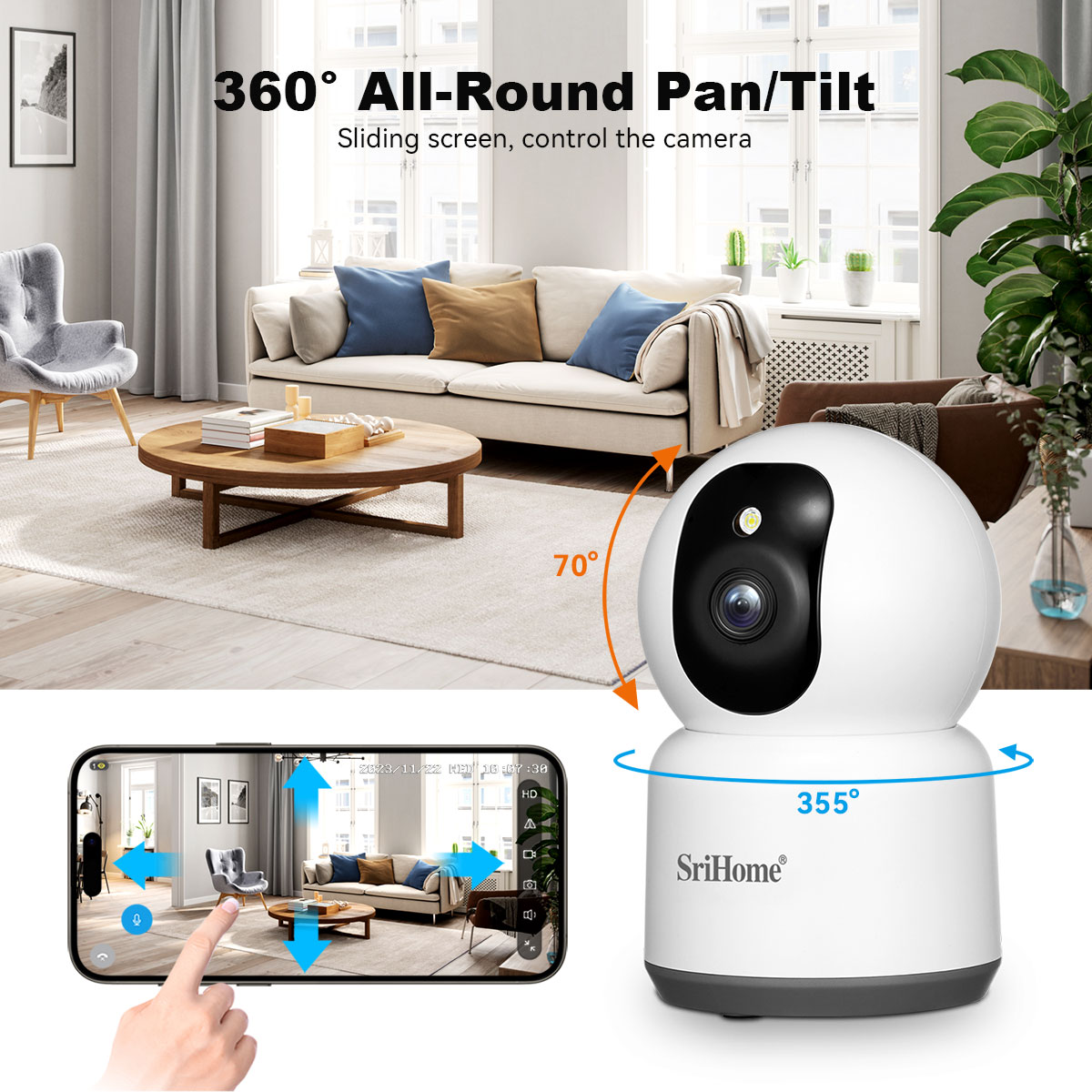

Pan&Tilt Pan:355°, Tilt: 70°
Alarm

Alarm: Motion detection alarm

Alarm Notification:Push alarm notifications to your smartphone

Human Detection Alarm:Only detect huamn activities (need to enable motion detection at the same time)

Advanced Zone Detection:Set customized motion detection zones to control what you’re monitoring

Privacy

Privacy Protection:System defaults the first user as administrator, other users accessing the camera need administrator's authorization, otherwise they can't view it

Privacy Block:Set up to 4 privacy areas

Network

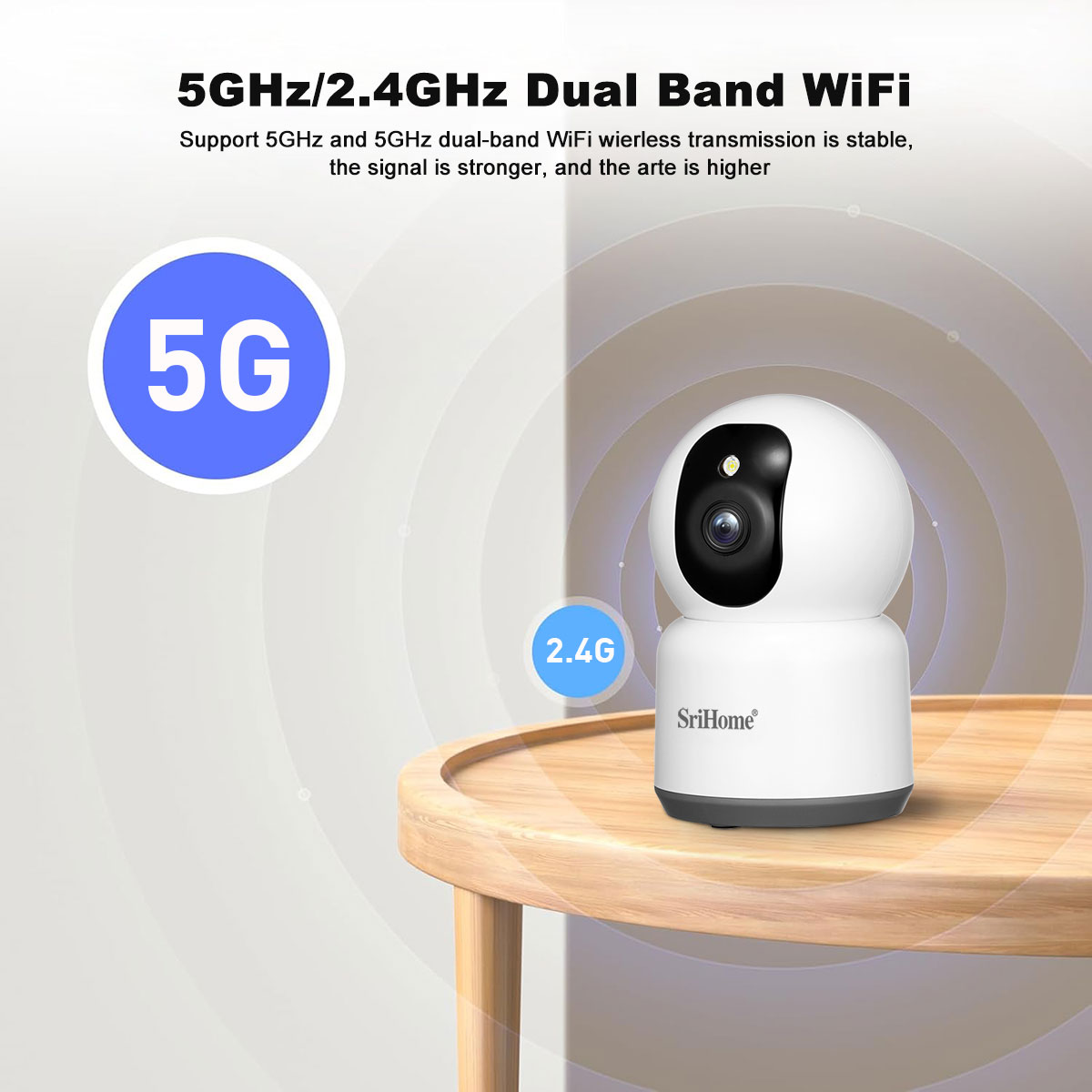

Wireless:2.4G/5G WiFi

Network ModeNetwork Mode:1.AP Hotspot / 2.QR Code : WiFi QR Connect the network

Online Visitor Supports max 5 visitors at same time
Record

Record Mode: Motion detection alarm recording, 7/24 recording

Record Standard: HD mode(1440P/1080P/720P) / SD mode(360P)

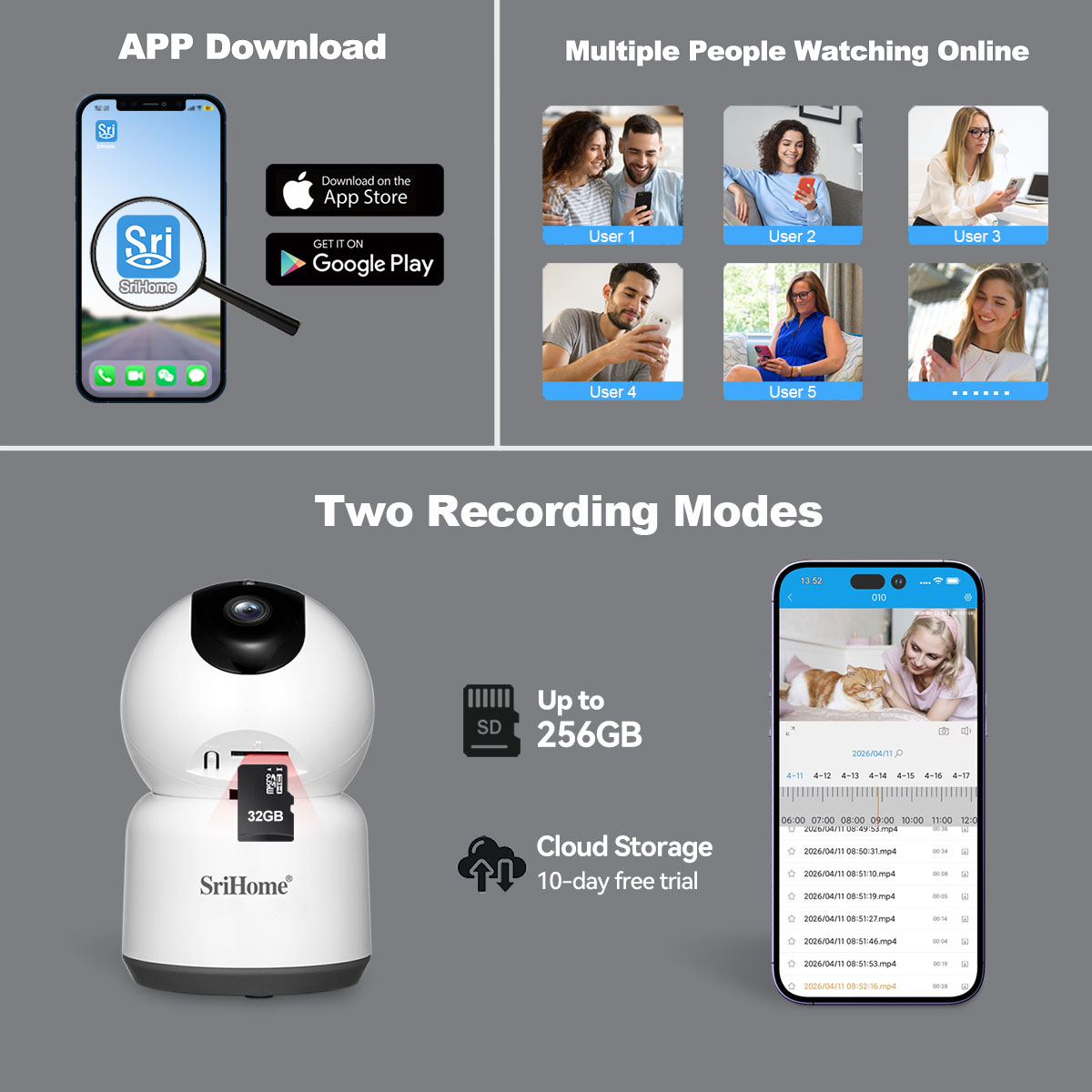

Storage: MicroSD card (Max 128GB)

Playback: SD card record playback

Others

Product Type: Plastic,  indoor use

Power Supply: DC 5V

Working Temperature: -10 to +50℃

Working Humidity: 10% to 90% RH

Weight: N.W.:190g, G.W.: 450g (Note:Actual Weight Final)

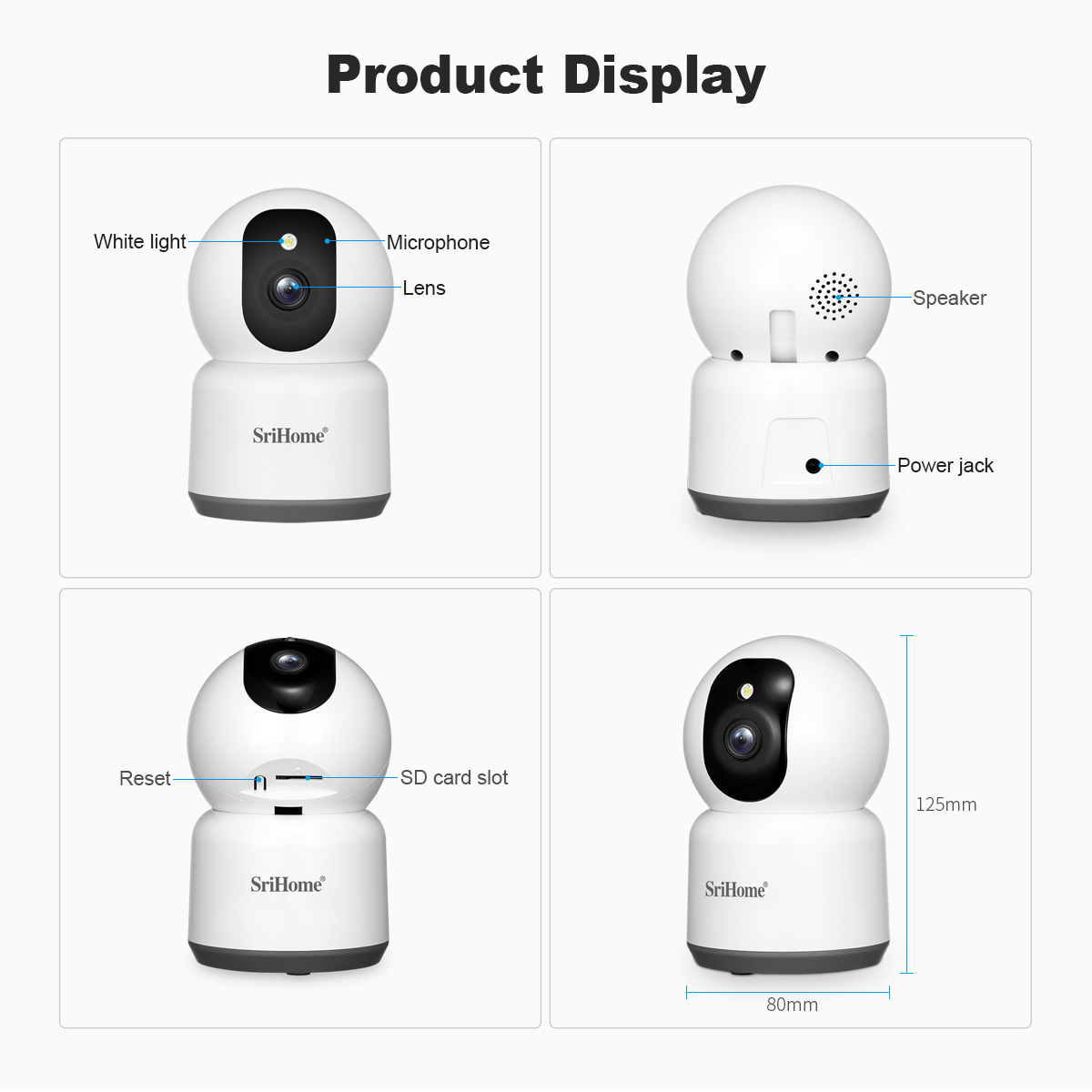

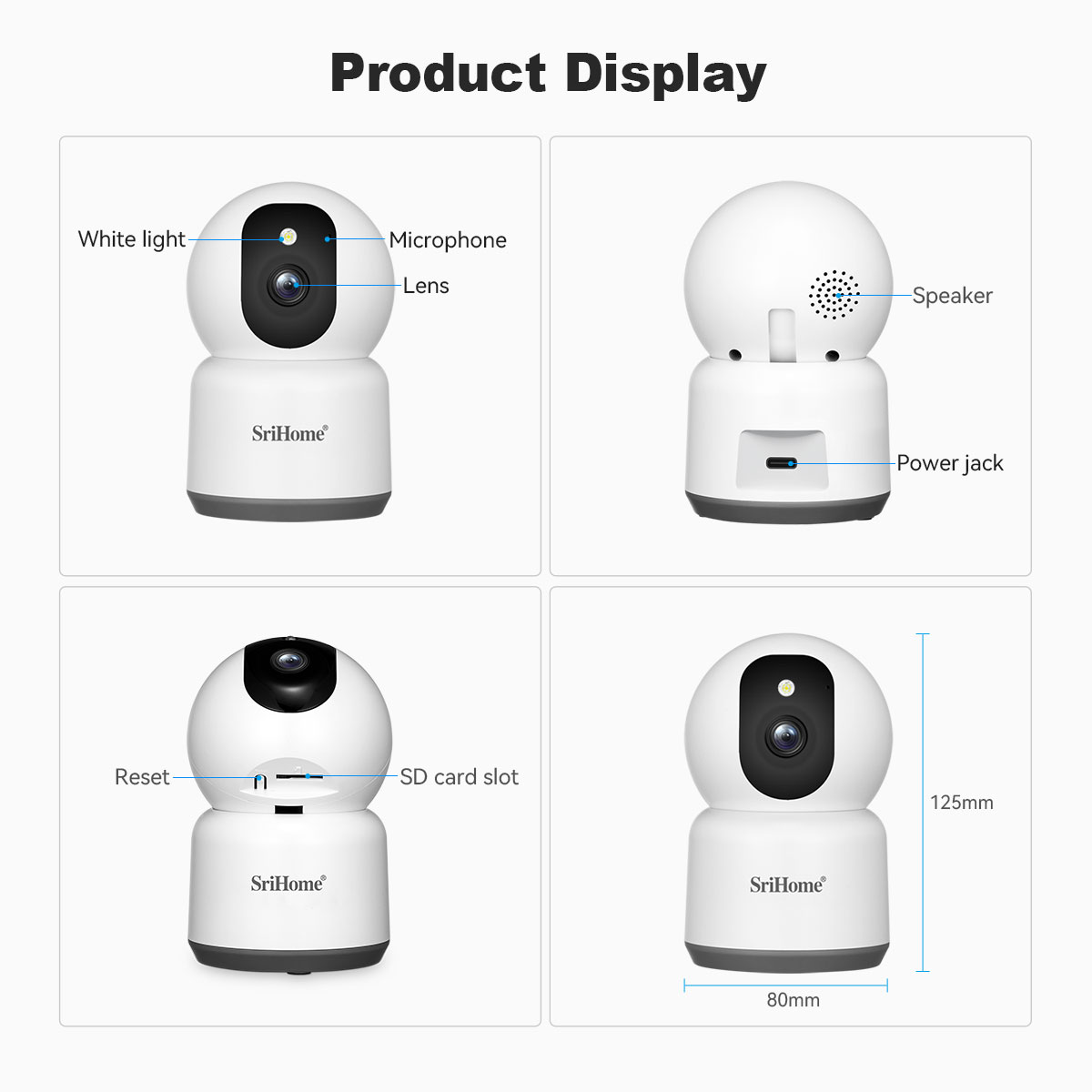

Item size: 90 * 80 *110   mm  (LxWxH)

Packaging size: 93*93*155mm(LxWxH)

Certification

CE, FCC & RoHS
